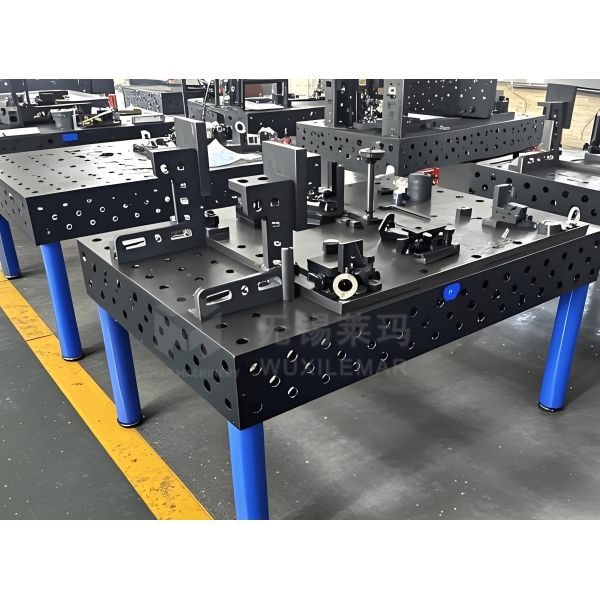

D16 Non-Standard 3D Welding Table with Custom Fixture Compatibility

The D16 Non-Standard 3D Welding Table with Custom Fixture Compatibility is a flexible welding/assembly platform for small to medium-sized, high-precision, and diverse metal structural components. It utilizes a standard Φ16mm hole system (50*50mm hole spacing) and focuses on non-standard customization and compatibility with third-party fixtures. Designed specifically for small-batch production, complex structures, and frequent product changes, it addresses the shortcomings of traditional tooling, such as rigidity, high cost, and slow changeover times.

• Precision Machining: CNC five-axis machining, micron-level control of hole positions, flatness, and perpendicularity, with a repeatability of ≤0.02mm, ensuring weld consistency.
• High-Rigidity Structure: 12–18mm thick tabletop + dense reinforcing ribs, 2-ton load deflection ≤0.05mm/m, resistant to deformation and vibration.
• Wear-Resistant and Corrosion-Resistant: Nitride treatment, surface hardness HV450–630, high-temperature resistance up to 600℃, non-stick to welding slag, corrosion-resistant, with a service life of 15–20 years.

• D16 Hole System + Customized Design: 50mm closely spaced holes provide more positioning points, suitable for small to medium-sized complex workpieces; non-standard structures address special clamping/operation requirements.
• Five-Sided Full Holes + Multi-Directional Clamping: Full holes on the top and four sides enable 360° clamping without blind spots, allowing complex spatial structures to be clamped in a single setup without secondary repositioning.
• Standard + Customized Fixture Compatibility: Standard fixtures ensure versatility and quick changeover, while customized fixtures guarantee specificity and welding accuracy, achieving both flexibility and efficiency.

• Fast Clamping: D16 quick-lock fixtures allow one person to complete workpiece positioning and clamping in 5 minutes, reducing changeover time to ≤10 minutes (compared to 2–8 hours with traditional tooling).
• Visual Positioning: The D16 Non-Standard 3D Welding Table with Custom Fixture Compatibility features a 50mm grid scale on the tabletop for quick alignment and precise positioning, reducing operational difficulty.
• Modular Expansion: Supports multi-platform splicing, accessory expansion, and integration with robots/positioners, providing flexible adaptation for production line upgrades.
