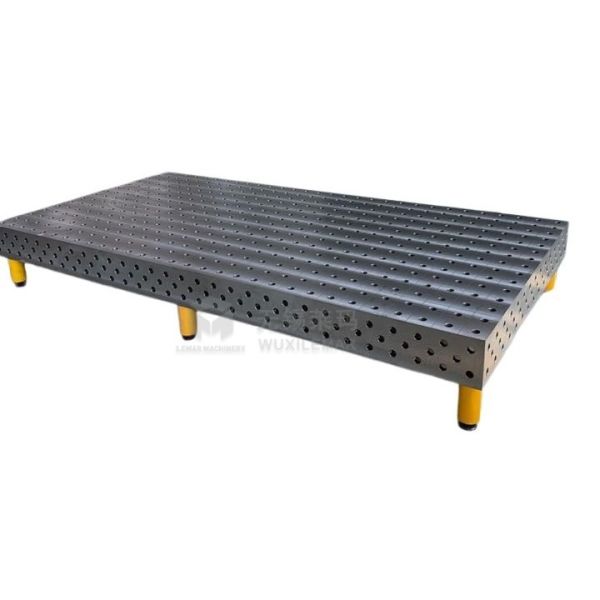

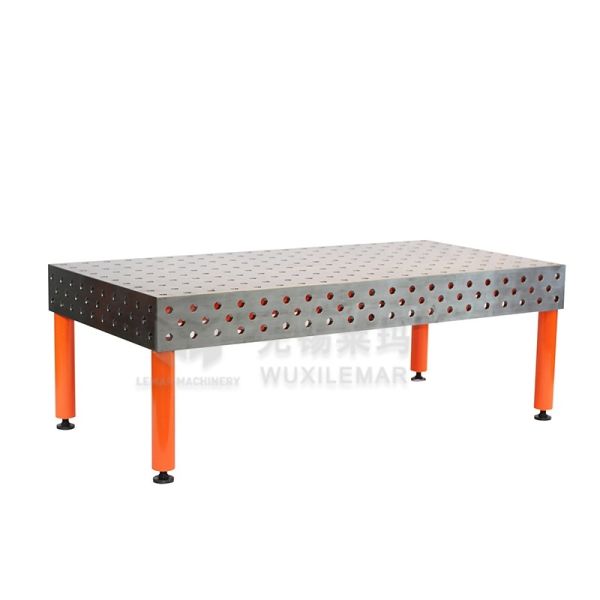

The D16 3D Welding Platform for Rapid Small Part Prototyping is a high-precision, modular, and flexible three-dimensional welding fixture platform designed for the rapid welding, assembly, and prototyping of small, precision metal parts. Its core advantages include precise positioning, fast clamping, high repeatability, and suitability for small parts.

Main Structure

• The overall structure is a box-type/reinforced rib design, with densely arranged reinforcing ribs at the bottom to ensure high rigidity and resistance to deformation.
• The table surface is precisely machined on five sides using CNC technology, ensuring flatness, hole position accuracy, and interchangeability.
• The surface is treated with nitriding to improve hardness, wear resistance, and rust prevention.

Flexible Positioning System (Core)

• The table surface is covered with φ16mm positioning holes (plain holes/threaded holes optional) in a 50×50mm grid pattern.
• Modular fixtures (positioning pins, quick clamps, angle rulers, support blocks, clamping arms, etc.) can be quickly combined at any hole position.
• This enables rapid positioning, clamping, and leveling of workpieces in three-dimensional space (X/Y/Z), eliminating the need for the complex manufacturing and debugging of traditional welding fixtures.

Surface treatment

• Nitriding Treatment: The D16 3D Welding Platform for Rapid Small Part Prototyping has a surface hardness of HV450–630, offering wear resistance, corrosion resistance, and impact resistance, extending its lifespan by 3–5 times.
• Precision Grinding: Flatness of 0.1/1000mm and surface roughness of Ra1.6 ensure accurate positioning.
• Grid Marking: The platform surface is marked with a 50×50mm grid, allowing for quick positioning without the need for measuring tools.

Warranty and Service

• Standard Warranty: 12 months or 2000 hours (whichever comes first).
• Extended Warranty: Optional extension up to 36 months, covering core components.
• Technical Support: 24/7 global technical support, on-site installation and commissioning, and operational training.
• OEM/ODM: The D16 3D Welding Platform for Rapid Small Part Prototyping supports customized dimensions, hole patterns, materials, and logos, and offers turnkey solutions.
