D28 3D Modular Welding Table for Energy Equipment Production
D28 3D Modular Welding Table for Energy Equipment Production
D28 3D Modular Welding Table for Energy Equipment Production
D28 3D Modular Welding Table for Energy Equipment Production
D28 3D Modular Welding Table for Energy Equipment Production
D28 3D Modular Welding Table for Energy Equipment Production
D28 3D Modular Welding Table for Energy Equipment Production
D28 3D Modular Welding Table for Energy Equipment Production
Specifications
Brand Name :
WUXI LEMAR
Model Number :
D29
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
500-1000 USD
Payment Terms :
,D/A,L/C,D/P,T/T,Western Union
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Packaging Details :
3000*2000*300mm
Hole System :
Φ28 mm，100 mm × 100 mm grid
Table Material :
HT300 cast iron / S355JR steel
Hole Position Accuracy :
±0.05 mm
Flatness :
≤ 0.1 mm/m
Splicing Accuracy :
≤ 0.05 mm
Static Load :
≥ 5000 kg
Fixture Thread :
M16
Standard Fixtures :
Locating pins, clamps, angle plates, connecting plates, etc.
Warranty :
1 Year
Description
D28 3D Modular Welding Table for Energy Equipment Production
The D28 3D Modular Welding Table for Energy Equipment Production is an industrial-grade flexible fixturing platform specifically designed for the heavy-duty, high-precision welding and assembly of energy equipment—including wind turbine towers, pressure vessels, nuclear power structural components, and energy storage equipment frames.
Technical Specifications
Tabletop Hole System D28 (Φ28mm), Hole Spacing: 100mm
Tabletop Dimensions 1500×1000 mm, 2000×1500 mm, 3000×2000 mm, etc.
Countertop Thickness 25mm
Material HT300 Cast Iron / S355JR High-Strength Steel
Surface Treatment Quenching / Nitriding / Hardening Treatment
Positioning Accuracy Hole Position: ±0.05 mm; Flatness: 0.1 mm/m
Single-Unit Load Capacity ≥5000kg
Splicing Precision Splice Gap ≤ 0.05 mm

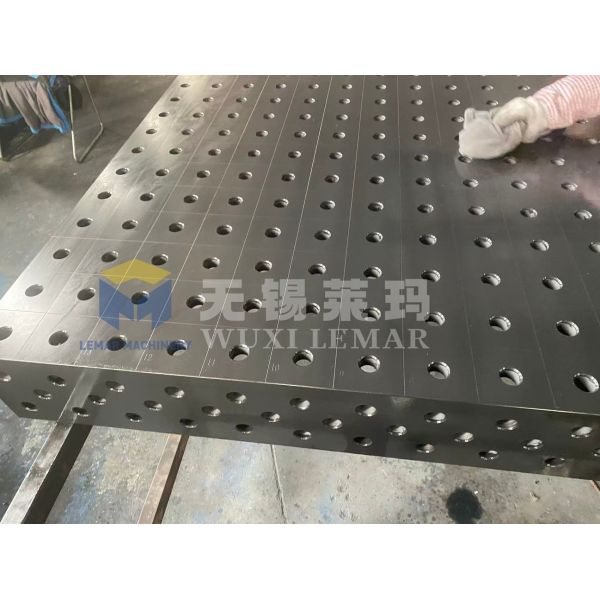

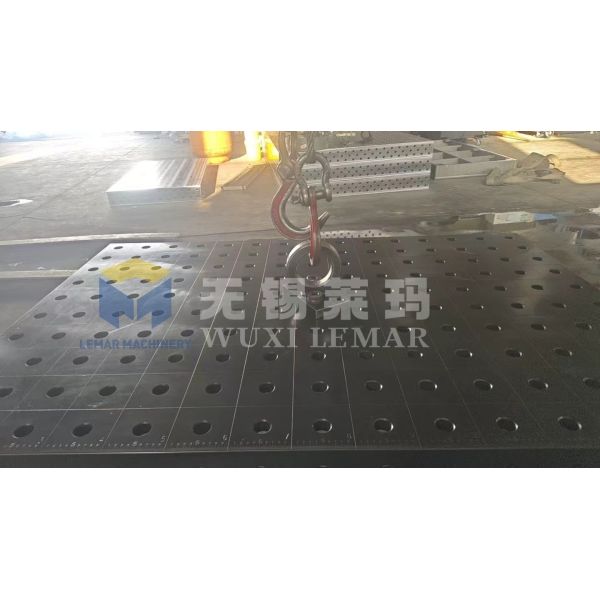

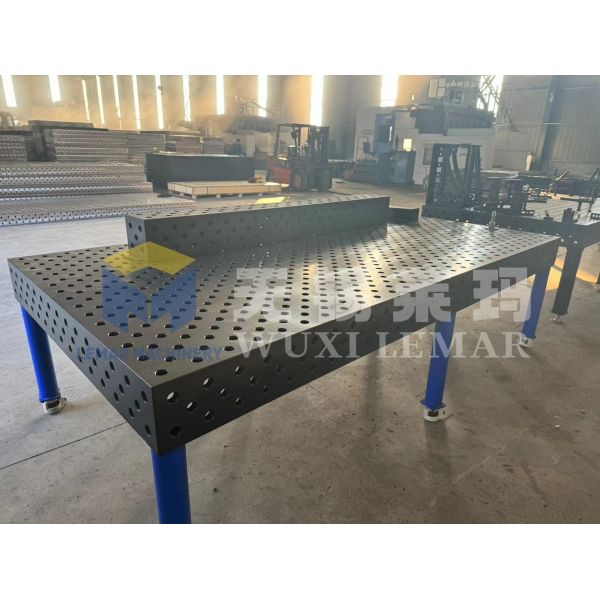

Product Gallery
D28 3D Modular Welding Table for Energy Equipment Production D28 3D Modular Welding Table for Energy Equipment Production D28 3D Modular Welding Table for Energy Equipment Production
Core Advantages for Energy Equipment Industry
  • Flexible Manufacturing: Single workbench system accommodates diverse energy equipment workpieces, replacing traditional dedicated fixtures to shorten changeover times and reduce costs.
  • High-Precision Assurance: Integrated hole-pattern positioning and 3D clamping ensure precise welding dimensions and strict geometric tolerances for rigorous energy equipment standards.
  • Efficient Assembly: Rapid alignment and precise positioning significantly boost welding and assembly efficiency while minimizing rework.
  • Heavy-Duty Adaptability: High load-bearing capacity, expansive surface areas, and modular splicing capabilities meet manufacturing demands for large-scale energy equipment across wind power, nuclear energy, energy storage, and oil & gas sectors.
  • Standardization and Reusability: Universal and reusable fixturing components reduce development cycle and costs for new workpiece tooling.
Typical Application Scenarios
  • Wind Power Equipment: Tower flange welding, nacelle base assembly and welding, blade root joint assembly.
  • Pressure Vessels / Boilers: Shell circumferential and longitudinal seam welding, dished head fitting, tube sheet positioning.
  • Nuclear Power / Energy Storage: Containment structure components, energy storage cabinet frames, piping system welding and assembly.
  • Oil & Gas Equipment: Welding and assembly of pipelines, valves, and skid-mounted equipment.
Product and Supply Chain Advantages
Standardization + Flexible Compatibility
The D28 hole system adheres to universal international standards, offering exceptional fixture versatility. It supports both single-piece and small-batch production runs while allowing modular assembly of multiple units for large-scale energy equipment production lines—reducing tooling changeover times and capital investment costs.
Stable Supply Chain & Guaranteed Delivery
We maintain long-term strategic partnerships for core raw materials (HT300 cast iron and S355 steel) to ensure supply stability. Standardized products typically have a lead time of 15-30 days, while custom solutions require 30-45 days. We are fully equipped to fulfill large-volume export orders, guaranteeing consistent and reliable supply.
Comprehensive Export Compliance
Our products comply with CE (Machinery Directive) and ISO 9001 certifications. We can also provide additional industry-specific certifications—including RoHS and EN 1090—to meet market entry requirements across Europe, South America, and the Middle East. We support a wide range of international trade terms (FOB, CIF, DDP).
