Specifications
Brand Name :
LMEAR
Model Number :
D16
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
500-1000 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Packaging Details :
3000*2000*300mm
Application :
Fine Fabrication, Precision Welding, Assembly, Fixture
Brand :
OEM / Customizable
Surface Treatment :
Nitriding / Quenching / Anti-rust Coating
Hardness :
HRC 50‑58
Stability :
Stress Relieved, No Deformation
Repeat Positioning Accuracy :
± 0.02 mm
Hole System :
D16
Hole Pitch :
50×50 mm
Working Face :
5 sides (top + 4 sides)
5 sides (top + 4 sides) :
Yes
Load Capacity :
2‑8 tons/㎡
Description

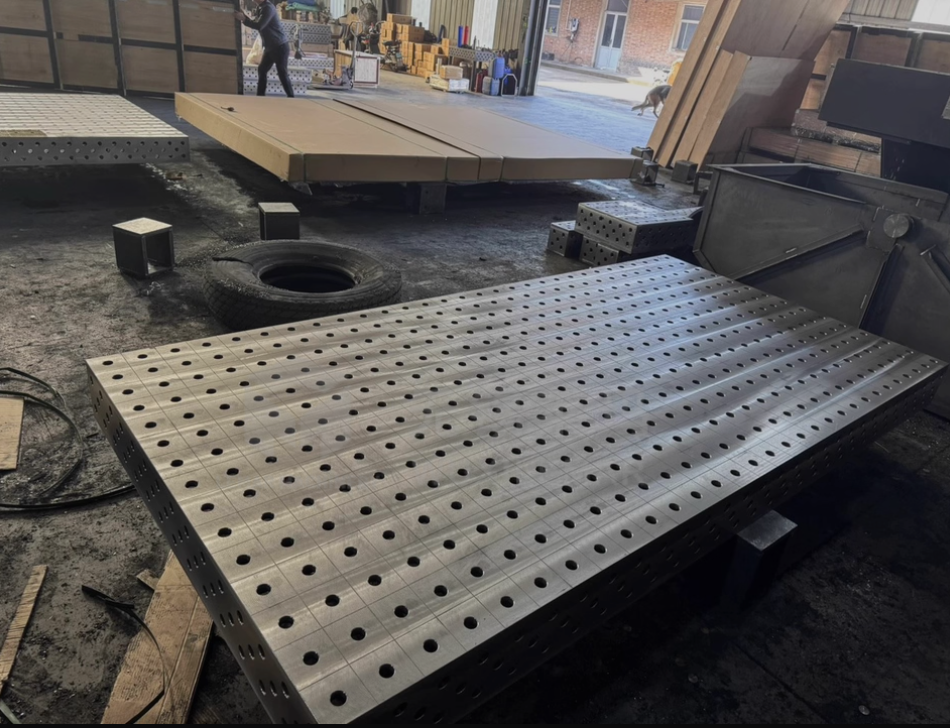

Ultra Precision D16 3D Welding Table for Fine Fabrication
The Ultra Precision 3D Welding Table for Fine Fabrication is a modular, flexible tooling platform designed for high-precision, small-batch, and complex structural component welding and assembly. Its core value lies in achieving micron-level positioning, extremely low welding deformation, and rapid changeover, making it a core tooling for high-end precision manufacturing.
Technical Specifications Comparison
Comparison Items Ultra Precision 3D Welding Table Standard 3D Welding Station
Flatness ≤0.03mm/m² (inspection grade) 0.1-0.3 mm/m² (industrial grade)
Positioning Accuracy ±0.01mm ±0.05-0.1mm
Material HT300 Cast Iron / Alloy Tool Steel Ordinary cast iron / Q235 steel
Processing Technology CNC precision milling + manual scraping Ordinary milling
Thermal Stability Deformation < 0.02 mm/m (-20~120℃) Deformation > 0.1 mm/m
Applicable Scenarios Precision manufacturing, micron-level tolerances General welding, structural component manufacturing
Ultra Precision 3D Steel Welding Table For Fine Fabrication HRC50 ‑ 58
Ultra Precision 3D Steel Welding Table For Fine Fabrication HRC50 ‑ 58
Structural Design Features
  • Five-sided machining (tabletop + 4 side panels): Positioning holes around the entire circumference enable 3D welding
  • Reinforced ribs/box-type structure: High rigidity, load-bearing capacity of 5-10 tons/㎡, no deformation after long-term use
  • Modular assembly: Multiple units can be seamlessly assembled to meet the needs of large workpieces
Core Advantages
  • Ultimate Precision: Positioning and repeatability accuracy reaches ±0.01mm, ensuring consistent finished product dimensions and geometric tolerances
  • Extremely Low Deformation: High rigidity + shock-absorbing materials + low thermal expansion reduce welding deformation by over 70% compared to traditional platforms
  • Flexibility and Efficiency: One platform covers multiple product types and small batches, reducing changeover time from hours to minutes, significantly lowering tooling costs and inventory
  • High Versatility: Compatible with manual welding, automatic welding, robotic welding, precision assembly, and coordinate measuring machine inspection, offering multiple uses in one machine
  • Long-Term Stability: Constructed from precision cast iron/alloy steel, maintaining accuracy for ten years with low maintenance costs
Export Packaging Standards
  • Material: Multi-layer plywood / solid wood fumigated crate
  • Compliant with: IPPC fumigation mark, acceptable to most countries worldwide (EU, USA, Middle East, Southeast Asia, Australia, etc.)
  • Free from pests and quarantine risks, suitable for sea, air, and land transport
Warranty Policy
Warranty period: 24 months from the date of delivery
Warranty Coverage
  • Quality defects of the welding table structure, frame, and precision
  • Normal wear and tear of standard accessories within warranty
Free Services Under Warranty
  • Free repair or replacement of defective parts
  • Free technical support and troubleshooting guidance
