Precision System 28 Folding Welding Table 1000x1000mm Cast Iron Base Welding Bench
Precision System 28 Folding Welding Table 1000x1000mm Cast Iron Base Welding Bench
Precision System 28 Folding Welding Table 1000x1000mm Cast Iron Base Welding Bench
Precision System 28 Folding Welding Table 1000x1000mm Cast Iron Base Welding Bench
Precision System 28 Folding Welding Table 1000x1000mm Cast Iron Base Welding Bench
Precision System 28 Folding Welding Table 1000x1000mm Cast Iron Base Welding Bench
Precision System 28 Folding Welding Table 1000x1000mm Cast Iron Base Welding Bench
Precision System 28 Folding Welding Table 1000x1000mm Cast Iron Base Welding Bench
Specifications
Brand Name :
LEMAR
Model Number :
D28
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
500-1000 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Packaging Details :
2000*3000*300mm
Confucian standards :
System 28 (Φ28mm bore diameter, tolerance +0.06~+0.15mm)
Grid specifications :
100mm×100mm
Hole positioning accuracy :
±0.05mm
Splicing accuracy :
≤0.1mm/m
Working face :
5-sided machining (1 top surface + 4 side surfaces)
Base material :
HT250/HT300
Countertop thickness :
25mm
High :
200mm
Surface hardness :
450-850HV
Description

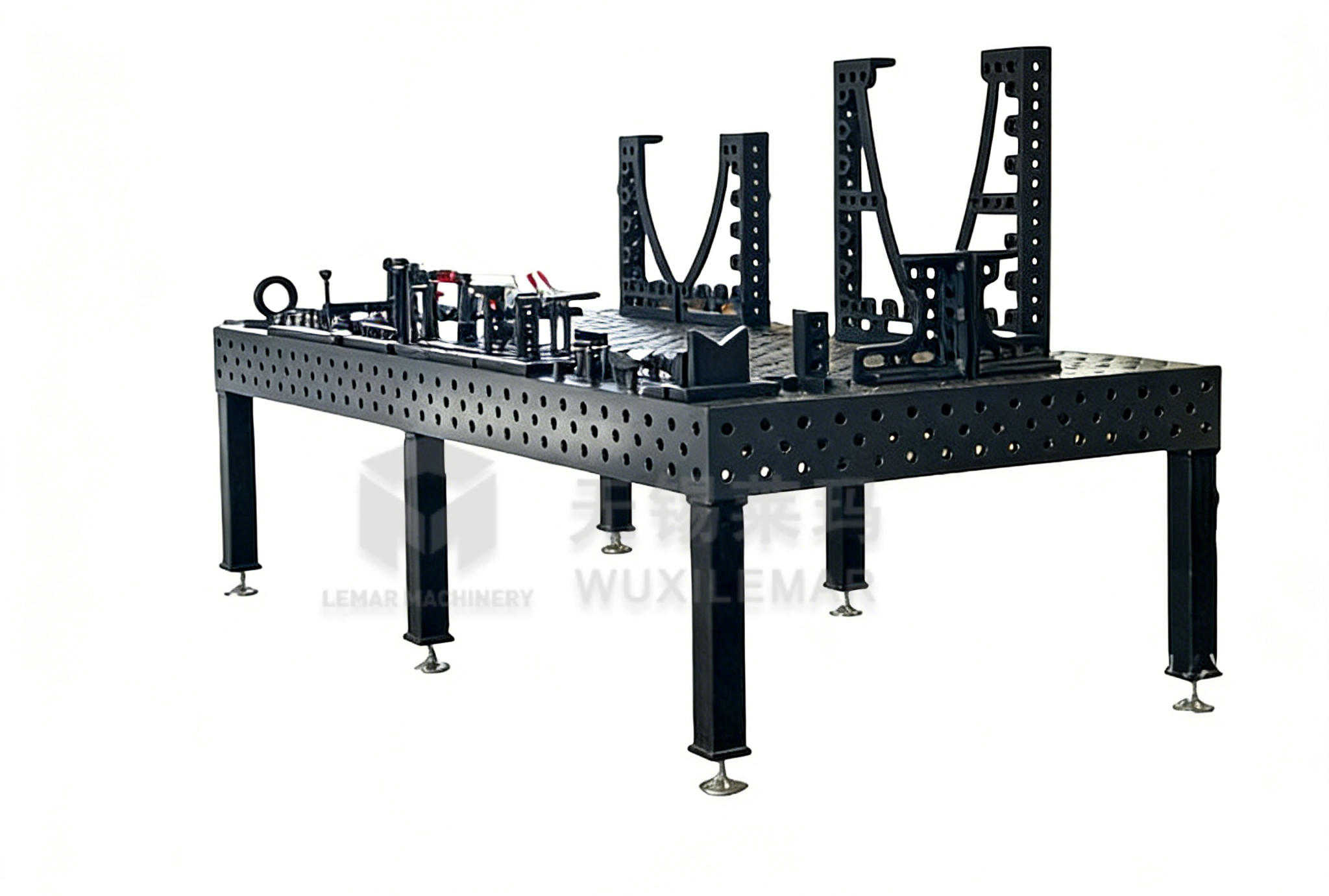

Precision System 28 Welding Table 1000x1000mm Cast Iron Base
The Precision System 28 Welding Table 1000x1000mm Cast Iron Base is an industrial-grade precision 3D welding platform featuring a D28 (Φ28mm) hole system, a 1000mm × 1000mm tabletop, and a cast iron base. It is primarily used for precise positioning, welding, and assembly of heavy workpieces, and is suitable for applications in mechanical manufacturing, automotive parts, and steel structures. It supports modular fixture expansion and multi-station configurations.
Tabletop dimensions 1000mm × 1000mm
Hole system standard System 28 (D28)
Hole grid 100mm × 100mm (diagonal array)
Base material High-strength cast iron (HT250/HT300)
Tabletop thickness 25mm
Precision System 28 Folding Welding Table 1000x1000mm Cast Iron Base Welding Bench
Precision System 28 Folding Welding Table 1000x1000mm Cast Iron Base Welding Bench
Structure and Adaptation Characteristics
Materials and Craftsmanship
  • Cast iron base + hardened tool steel tabletop
  • Stress-relieved through aging treatment to minimize welding deformation
  • CNC machining + laser calibration ensure precise hole positioning and surface accuracy
Modular Adaptability
  • Compatible with the full range of System 28 accessories (locating pins, quick clamps, V-blocks, support columns, etc.)
  • Supports multi-unit splicing to expand tabletop size
  • Suitable for mass production applications
Installation and Protection
  • Pre-drilled mounting holes at the bottom for adjustable leveling
  • Standard anti-rust packaging
  • Suitable for sea freight and long-term storage
Certification and Compliance
  • Complies with CE Machinery Safety Directive (2006/42/EC)
  • Suitable for EU market access
  • Material and accuracy test reports available
Cost and Delivery Advantages
Pricing Benefits
Directly supplied by the manufacturer, eliminating middleman markups. Bulk purchases (≥5 units) enjoy a 10%-15% discount. OEM/ODM customization is supported. Compared to similar imported platforms, the price is only 1/3 to 1/2, offering outstanding value for money.
Delivery Time
Standard models are in stock and shipped within 3-7 business days after order placement. Customized models (such as thickened tabletops, special hole spacing) have a delivery time of 15-30 business days.
Packaging and Transportation
Uses anti-rust vacuum packaging + reinforced solid wood pallets, suitable for sea/air freight, preventing damage during transportation. Door-to-door logistics service is supported, and we can assist customers with customs declaration and clearance procedures, lowering the barrier to cross-border procurement.
Certification, Compliance and Industry Adaptation
International Certification
The entire product range is CE certified (compliant with EU Machinery Safety Directive 2006/42/EC), and complete certification documents (including test reports and declarations of conformity) are available to ensure smooth customs clearance and sales in the EU market. Optional ISO 9001 quality management system certification and SGS material testing reports are available to meet the procurement audit requirements of high-end customers.
Industry Adaptability
Compliant with welding fixture standards in industries such as construction machinery, automotive manufacturing, and rail transit, and can be directly integrated into customers' existing production lines. Compatible with D28 series accessories from mainstream international clamp brands (such as Siegmund and Goudsmit), enhancing customer flexibility.
Precision System 28 Folding Welding Table 1000x1000mm Cast Iron Base Welding Bench
Contact Us
Precision crafts quality, and craftsmanship earns trust. We are deeply rooted in the welding equipment field, providing global customers with CE-certified precision welding platforms. From selection and customization to cross-border delivery, we offer professional support throughout the entire process. We are committed to providing stable and reliable products and services to help your production line improve quality and efficiency, and together we can expand into the global market.
