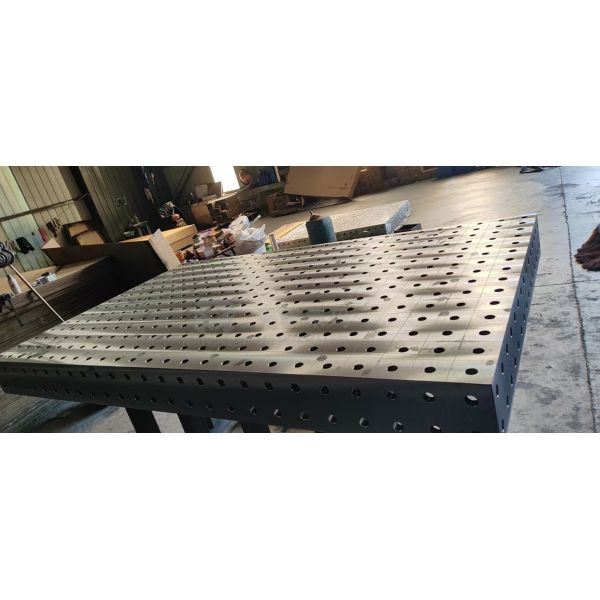

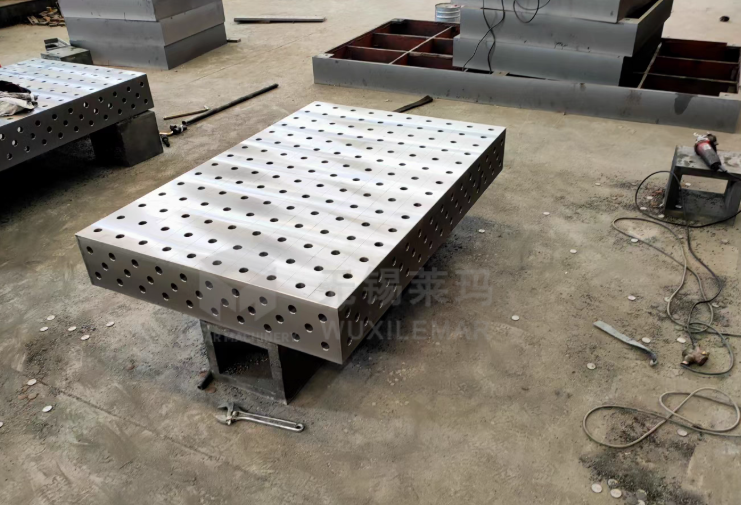

The D28 Extra Heavy Duty 3D Welding Table for Large Metal Structures is an ultra-rigid, high-load capacity, and high-precision flexible tooling system designed for welding and assembly of heavy-duty, extra-large metal structures. Its core purpose is to solve the challenges of positioning and deformation control during the welding of large-sized, heavy-weight, thick-plate, and complex structures.

• 100×100mm large-pitch hole pattern: φ28mm locating holes (plain holes / M24 threaded holes optional), suitable for heavy-duty fixtures (single fixture load capacity ≥ 5 tons).
• Heavy-duty modular fixtures: locating pins, heavy-duty angle plates, V-blocks, screw clamps, hydraulic/pneumatic heavy-duty clamps, support columns, beams, square blocks, etc., with a single fixture clamping force of up to 50kN+.
• Three-dimensional positioning: Through the combination of columns + beams + square blocks, positioning and clamping at any height and angle in the X/Y/Z directions can be achieved, suitable for complex large-scale three-dimensional structures.

• The D28 Extra Heavy Duty 3D Welding Table for Large Metal Structures eliminates the high costs and time associated with designing, manufacturing, and storing large, specialized fixtures (traditional fixtures cost 5–10 times more than the D28).
• Clamping efficiency is increased by over 70%, welding efficiency is increased by 40%–60%, and the scrap rate is reduced to below 2%.
• The return on investment period is 6–12 months (even faster in scenarios involving mass production of large structural components).

When you choose our D28 Extra Heavy Duty 3D Welding Table for Large Metal Structures, you're not just getting a piece of equipment, but a complete solution from precise positioning to efficient delivery:

• Say goodbye to size anxiety: ±0.03mm repeatability ensures confidence in every weld.
• Eliminate wasted efficiency: Modular fixtures are plug-and-play, allowing complex workpieces to be clamped in just minutes, with zero downtime for changeovers.
• Break through scene limitations: Five-sided expansion + heavy-duty load capacity, from small precision parts to extra-large structural components, one platform handles it all.

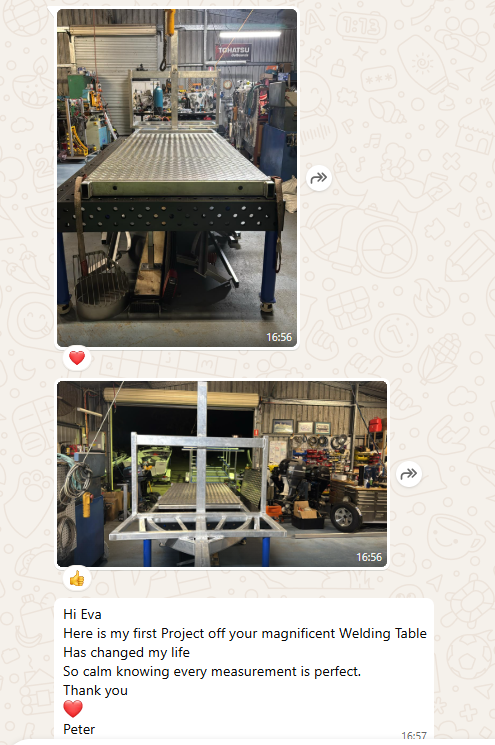

As our customer Peter said, "So calm knowing every measurement is perfect."

Choosing us means choosing a more precise, efficient, and worry-free welding experience.
