Low Noise Welding Dust Collector Indoor Industrial Welding Fume Collector
Low Noise Welding Dust Collector Indoor Industrial Welding Fume Collector
Low Noise Welding Dust Collector Indoor Industrial Welding Fume Collector
Low Noise Welding Dust Collector Indoor Industrial Welding Fume Collector
Low Noise Welding Dust Collector Indoor Industrial Welding Fume Collector
Low Noise Welding Dust Collector Indoor Industrial Welding Fume Collector
Low Noise Welding Dust Collector Indoor Industrial Welding Fume Collector
Low Noise Welding Dust Collector Indoor Industrial Welding Fume Collector
Specifications
Brand Name :
LEMAR
Model Number :
LW-C-M1201-030A2
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
100-500 USD
Payment Terms :
,L/C,D/A,T/T,Western Union,D/P
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Packaging Details :
3000*2000*300mm
Air volume :
1500–6000 m³/h (select as needed)
Filtration accuracy :
≥99.9% @ 0.3μm
Noise level :
65-72 dB(A) (Low Noise)
Inhalation arm length :
2m/3m/4m (360° rotation)
Filter material :
PTFE membrane filter cartridges, nanofiber filter media
Cleaning method :
Manual/Automatic Pulse Backflush
Power supply :
380V/50Hz (three-phase) or 220V (small model)
Main Filter :
H13 HEPA cartridge filter
Power :
0.75-1.5 kW
Description

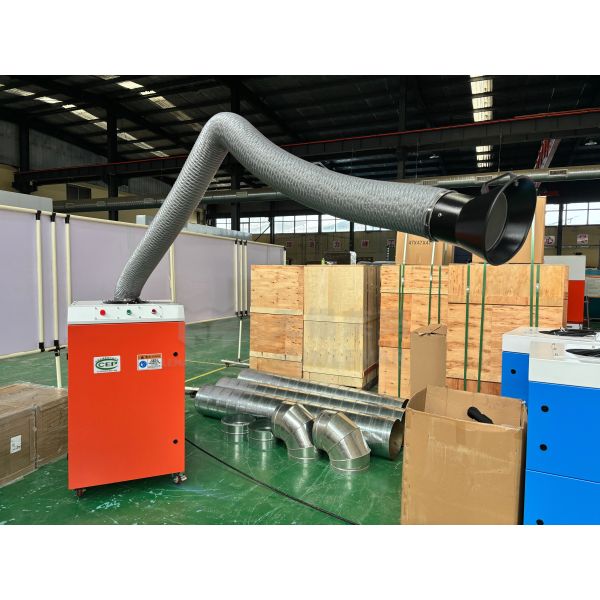

Low Noise Welding Fume Collector for Indoor Industrial Application
The Low Noise Welding Fume Collector is a high-efficiency industrial environmental protection device specifically designed for indoor welding, cutting, grinding, and similar operations. It effectively captures and purifies welding fumes while maintaining low operating noise levels suitable for industrial workshops, ensuring a healthy working environment for personnel.
Technical Specifications
Parameter Specification
Air Flow 1500-2400 m³/h
Static Pressure 1800-2500 Pa
Noise Level 65-72 dB(A) (Low Noise)
Power 0.75-1.5 kW
Voltage 220V/380V, 50/60Hz (customizable)
Suction Arm 2m or 3m, 360° flexible
Filtration Efficiency ≥99.9% for 0.3μm particles
Filter Area 6-10 ㎡
Main Filter H13 HEPA cartridge filter
Low Noise Welding Dust Collector Indoor Industrial Welding Fume Collector
Low Noise Welding Dust Collector Indoor Industrial Welding Fume Collector
Core Structure and Key Components
Component Function Low-Noise Design Features
Universal Suction Arm 360° hovering, precise alignment with solder joint Lightweight, low-drag design reduces airflow noise
Centrifugal Fan Provides negative pressure suction Low-noise motor, shock-absorbing base, sound-insulating enclosure
High-Efficiency Filter Cartridges Core filtering element Vertical installation and large filter area reduce wind resistance and noise
Flame-Retardant Pre-filter Fireproof protection, extends main filter life Airflow guidance design reduces impact noise
Noise Reduction Module Reduce air outlet noise Built-in muffler with porous sound-absorbing material
Dust Removal System Keep filter elements clear Pulse backflushing / manual dust removal, low-noise design
Body / Base Support and shock absorption Thickened sheet metal, rubber shock-absorbing feet
Typical Application Scenarios
Metal structure welding workshops, pressure vessel manufacturing, engineering machinery processing
Automotive parts welding, sheet metal processing, precision welding stations
Ship repair, steel structure plants, hardware processing plants
Robotic welding workstations, automated production lines
Noise-sensitive workshops (near office areas, laboratories, precision assembly areas)
Environmental Protection and Certification
  • Meets indoor air quality and occupational health and safety standards
  • Dust emissions meet standards; enables indoor air circulation without external exhaust ducts
  • Low noise levels comply with factory noise requirements
  • CE certification available (commonly used for export to EU markets)
Installation and Maintenance
Plug and Play Operation: Pre-assembled unit ready for immediate use upon power connection. No complex piping required, saving installation costs and time.
Low Maintenance Costs: Daily maintenance only requires periodic filter checks and dust removal. Replacement of worn parts is simple and cost-effective.
High Reliability: Industrial-grade components suitable for 24-hour continuous operation with minimal failure rates and excellent stability.
