Specifications
Brand Name :
LEMAR
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
100-500 USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Packaging Details :
3000*2000*300mm
Model Number :
LEMAR 7ft（#951 510）
Power supply :
220V/380V，50/60Hz
Noise :
68–72 dB(A)
Suction arm :
2–4 meters, 360° rotating hover
Dust removal method :
Pulse jet cleaning (0.4–0.6 MPa)
Filter cartridge lifespan :
12–24 months
Filter cartridge material :
PTFE-coated nanofibers / polyester
Filtration efficiency :
99.9% @ 0.3μm (MERV 15–16)
Air volume :
750–1500 m³/h (442–880 CFM)
Applicable operating conditions :
Arc welding, MIG welding, TIG welding, cutting, grinding
Description

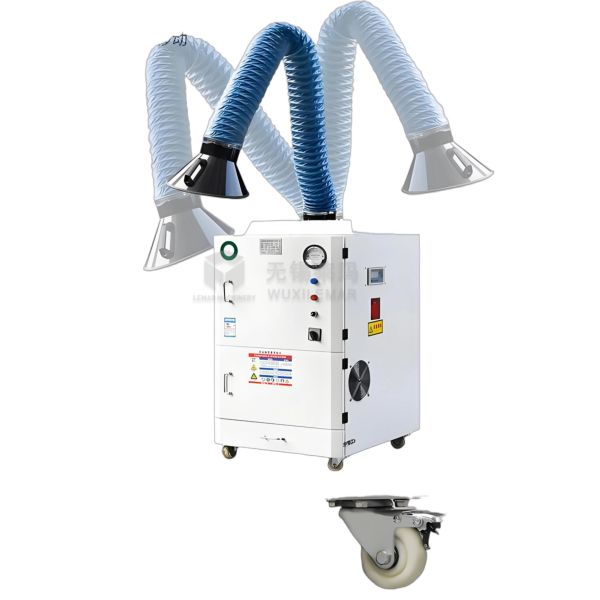

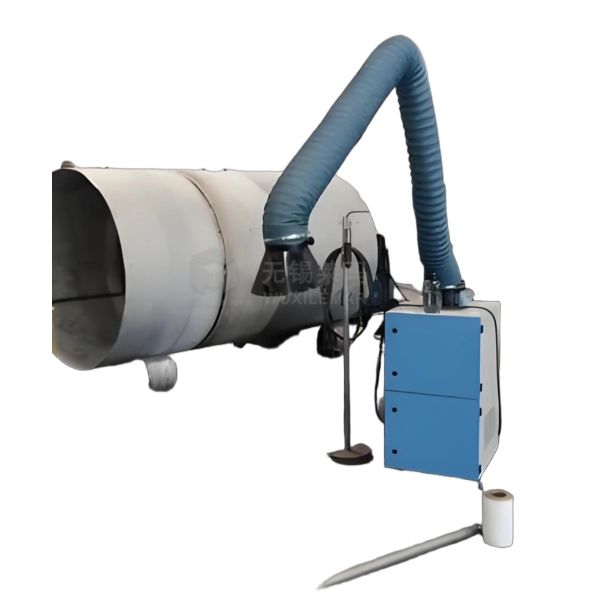

Self-Cleaning Welding Fume Extractor with Long Filter Life

The Self-Cleaning Welding Fume Extractor with Long Filter Life is a high-efficiency, low-maintenance, and long-lasting industrial air purification system designed specifically for welding workshops. Its core features include pulse self-cleaning technology and long-life filter cartridges, significantly reducing downtime and consumable costs.

Air volume 750–1500 m³/h (442–880 CFM)
Filtration efficiency 99.9% @ 0.3μm (MERV 15–16)
Filter cartridge material PTFE-coated nanofibers / polyester
Filter cartridge lifespan 12–24 months
Dust removal method Pulse jet cleaning (0.4–0.6 MPa)
Noise 68–72 dB(A)

Self-Cleaning Welding Fume Extractor with Long Filter Life

Self-Cleaning Welding Fume Extractor with Long Filter Life

Long-life filter cartridge technology
  • Filter material: The mainstream materials are PTFE-coated polyester / nanofiber (BiCo two-component polyester), featuring a smooth surface, low adhesion, and washability for reuse.
  • Structure: Large pleat spacing and large filtration area (20–30㎡/filter cartridge), resulting in high dust holding capacity.
  • Lifespan: 12–24 months under normal operating conditions, 2–5 times longer than ordinary filter cartridges, significantly reducing replacement frequency and costs.
  • Efficiency: MERV 14–16 / F9–H13, with an efficiency of ≥99.9% for 0.3μm particles.
Self-cleaning system
  • Control methods: Differential pressure automatic control / Timed control / Manual control.
  • Dust removal methods: Pulse jet cleaning (most commonly used), rotary reverse blowing, ultrasonic cleaning, etc.
  • Benefits: Reduced manual maintenance, reduced downtime, stable airflow, extended filter element lifespan.
Other standard features
  • Mobility: Bottom universal wheels for flexible adaptation to multiple workstations.
  • Safety Design: Flame-retardant mesh, explosion-proof motor, anti-static filter cartridge, and overheat protection.
  • Intelligent Control: Linked control of welding equipment start/stop, filter blockage alarm, and automatic airflow adjustment.
  • Low Noise: Noise reduction design, typically ≤72dB (A).
