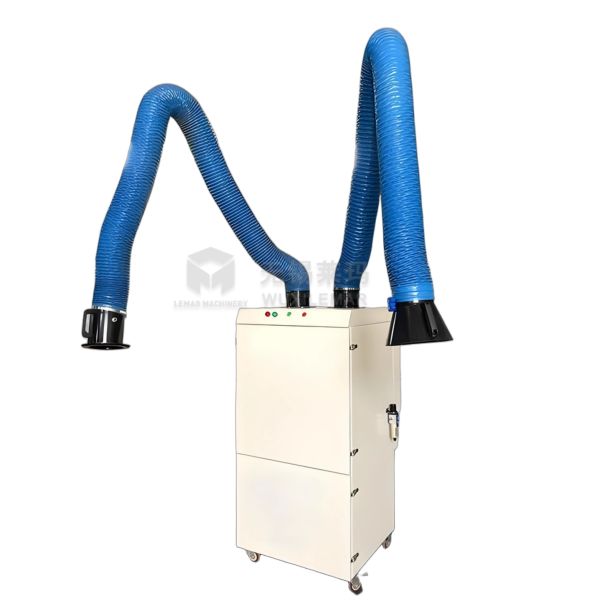

Low-Noise Welding Smoke Collector for Quiet Workshop Environment

The Low Noise Welding Smoke Collector is an industrial purification equipment designed specifically for quiet workshop environments. Its core is to efficiently collect welding fumes while controlling operating noise at an extremely low level through noise reduction technology, balancing environmental protection, health, and low noise requirements.

Core component

• Low noise fan: using a variable frequency brushless motor and alloy eddy current impeller, with low speed, high air volume, and low vibration, to reduce noise from the source.
• Sound insulation and noise reduction system: The fan is placed inside a fully enclosed sound insulation cover, and the air duct is equipped with sound-absorbing cotton/silencer. The air outlet is designed with flow guidance and noise reduction.
• Multi stage filtration unit: initial flame retardant mesh+high-efficiency PTFE membrane filter cartridge+activated carbon adsorption layer (optional).
• Universal suction arm: 360 ° rotation, extendable, precise positioning of smoke and dust sources, improving capture efficiency.
• Mobile/Installation Base: Equipped with brake universal wheels (mobile) or wall mounted/floor standing brackets (fixed), flexibly adaptable to workstations.

Core noise reduction technology

• Motor frequency conversion control: Adjust the speed as needed to avoid high load noise and save energy by over 50%.
• Shock absorption design: Install shock pads/springs between the fan and the body to isolate vibration transmission.
• Air duct optimization: streamline air ducts and sound-absorbing materials to reduce airflow turbulence and wind noise.
• Whole machine sealing: reduces air leakage and resonance noise.

Core strengths

• Ultra low noise: Low Noise Welding Smoke Collector for Quiet Workshop Environment operates with a noise level of ≤ 65dB, without interfering with workshop communication, precision equipment, and surrounding environment.
• Efficient purification: multi-stage filtration, 99.9% removal of harmful smoke and dust, protecting the health of welders and avoiding product contamination.
• Flexible and easy to use: universal suction arm+mobile/fixed installation, precise capture, adaptable to multiple workstations.
• Energy saving and durable: Variable frequency motor+automatic dust cleaning, low energy consumption, long filter life, and simple maintenance.
• Safe and reliable: Fire resistant design+leakage protection to prevent sparks from igniting and ensure electrical safety.

Selection and usage points

• Select air volume based on the number of workstations: choose 150-500 m ³/h for a single workstation, and 1000-3000 m ³/h for multiple workstations.
• Select the model according to the noise requirements: Low noise models with a noise level of ≤ 55dB are preferred for precision scenes.
• Filter configuration: PTFE coated filter element is selected for welding fumes; Choose activated carbon adsorption layer for odor.
• Installation and maintenance: Low Noise Welding Smoke Collector for Quiet Workshop Environment. The distance between the suction arm and the welding point should be ≤ 1.5m. Regularly clean/replace the filter element and keep the equipment sealed.
