Industrial Welding Fume Exhaust Extraction System Collector Extractor
Industrial Welding Fume Exhaust Extraction System Collector Extractor
Industrial Welding Fume Exhaust Extraction System Collector Extractor
Industrial Welding Fume Exhaust Extraction System Collector Extractor
Industrial Welding Fume Exhaust Extraction System Collector Extractor
Industrial Welding Fume Exhaust Extraction System Collector Extractor
Industrial Welding Fume Exhaust Extraction System Collector Extractor
Industrial Welding Fume Exhaust Extraction System Collector Extractor
Specifications
Brand Name :
LEMAR
Model Number :
LW-C-M1201-030A2
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
100-500 USD
Payment Terms :
,L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Packaging Details :
3000*2000*300mm
Energy saving rate :
30%–50%
Speed control :
Variable frequency VFD/EC fan
Operation mode :
Supply air on demand to reduce air consumption.
Structure :
Mobile / Fixed
Wheel :
Braked swivel wheels
Braked swivel wheels :
PTFE-coated polyester filter cartridge
Protection level :
IP54
Inlet temperature :
≤80℃
Filter efficiency :
≥99.9% @ 0.3μm
Description
Industrial Welding Fume Collector with Energy-Saving Features
The Industrial Welding Fume Collector with Energy-Saving Features is a highly efficient and environmentally friendly device designed specifically for metal processing scenarios such as welding, cutting, and grinding. Its core function is to capture welding fumes and harmful particles from the source or workshop environment, and then filter and purify them through multiple stages to meet emission standards. At the same time, it adopts energy-saving technologies such as intelligent speed regulation and on-demand operation, which significantly reduces the power consumption of the fan and the operation and maintenance costs, helping enterprises meet environmental compliance and achieve cost reduction and efficiency improvement.
Air flow 1500-3000 m³/h
Fan power 0.75-2.2 kW (Variable Frequency Energy Saving)
Working voltage 380V/3P/50Hz
Noise level ≤68-72 dB (A)
Filter area 10-15 ㎡
Inlet temperature ≤80℃
Suction arm 360° omnidirectional flexible suction arm
Suction arm length 2m / 3m (optional)
Industrial Welding Fume Exhaust Extraction System Collector Extractor
Industrial Welding Fume Exhaust Extraction System Collector Extractor

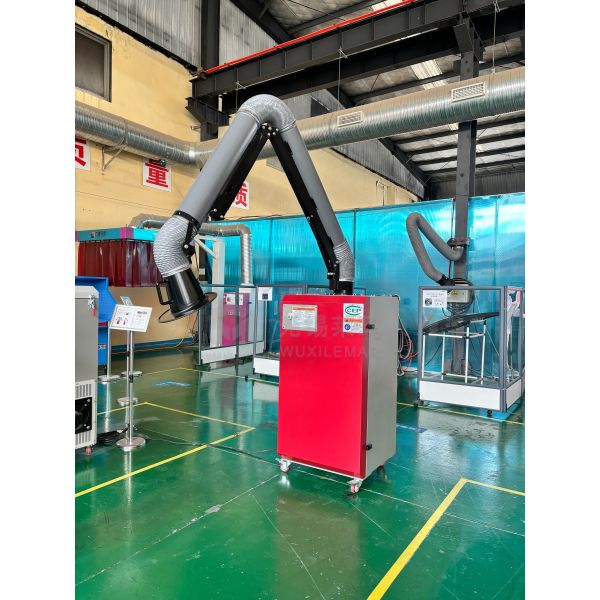

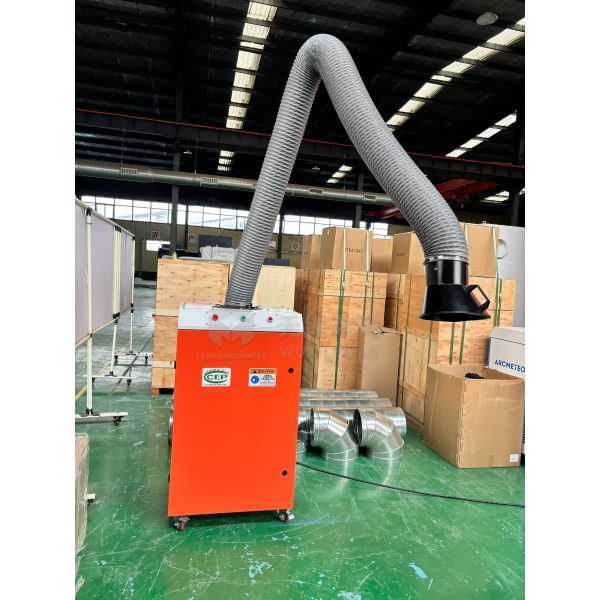

Structural and Exterior Design
  • Constructed from thickened cold-rolled steel plate for sturdiness and durability
  • Surface electrostatically powder-coated for rust resistance, corrosion resistance, and easy cleaning
  • Equipped with omnidirectional silent casters with brakes for flexible movement and quick workstation switching
  • 360° flexible suction arm can be positioned anywhere for precise smoke and dust source targeting
  • Compact design with small footprint suitable for various workshop layouts
Safety Performance
  • Built-in spark catcher effectively intercepts welding sparks, preventing filter cartridge ignition
  • Anti-static filter cartridge prevents static electricity from dust friction, meeting industrial safety standards
  • Motor has IP54 protection rating for dustproof and waterproof operation in harsh workshop environments
  • Overload protection, overcurrent protection, and phase loss protection ensure stable and reliable operation
Overall Advantages
Compliance and Standards
Emission concentrations typically <0.5mg/m³, meeting domestic and international standards such as GB 16297 and ISO 21904, facilitating environmental impact assessment acceptance.
Significant Cost Reduction
Annual energy savings of 8000-12000kWh, extended filter media lifespan to 6000-8000 hours, and reduced operation and maintenance costs by 40%-60%.
Safety and Reliability
Standard configuration includes anti-static filter cartridges, explosion-proof motors, and high-temperature resistant bodies, capable of withstanding high-temperature dust exceeding 200℃, suitable for 24-hour continuous operation.
Intelligent Operation and Maintenance
Supports local PLC control, IoT remote monitoring, fault early warning, and automatic generation of environmental protection records, reducing manual intervention.
Applicable Industries and Processes
Applicable Processes:
CO2 shielded welding TIG welding Electric arc welding Laser welding Plasma cutting Grinding and polishing
Applicable Industries:
Steel structures Construction machinery Automotive parts manufacturing Sheet metal processing Chassis and cabinets Rail transportation Aerospace parts Hardware processing Mold manufacturing Robotic welding workstations
