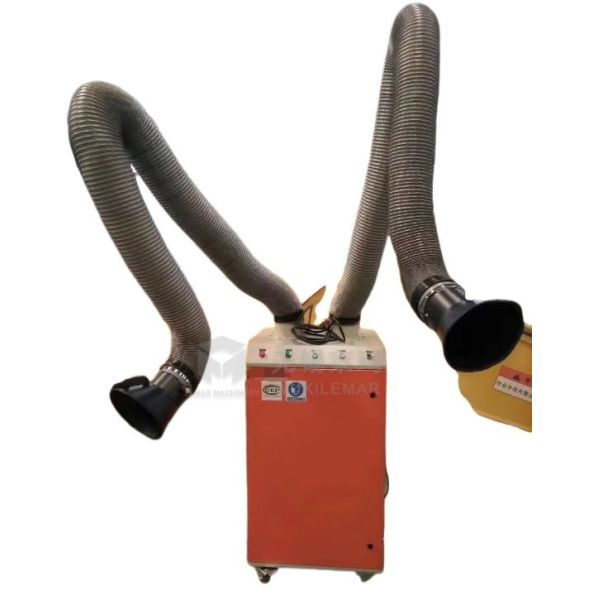

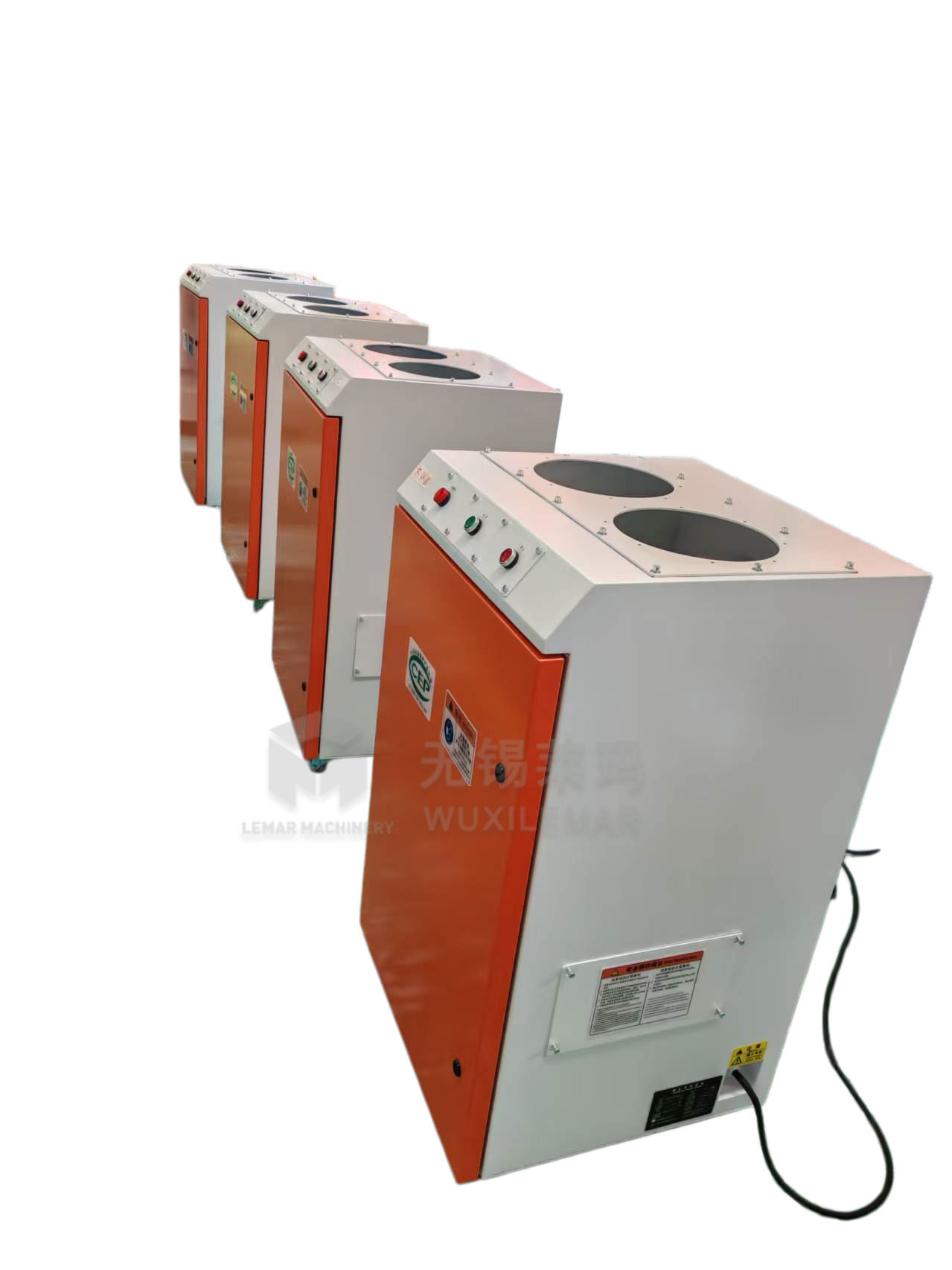

CE 3000m3/H Welding Dust Collector 3.0 KW Stable Portable Fume Extractor
CE 3000m3/H Welding Dust Collector 3.0 KW Stable Portable Fume Extractor
CE 3000m3/H Welding Dust Collector 3.0 KW Stable Portable Fume Extractor
CE 3000m3/H Welding Dust Collector 3.0 KW Stable Portable Fume Extractor
CE 3000m3/H Welding Dust Collector 3.0 KW Stable Portable Fume Extractor
CE 3000m3/H Welding Dust Collector 3.0 KW Stable Portable Fume Extractor
CE 3000m3/H Welding Dust Collector 3.0 KW Stable Portable Fume Extractor
CE 3000m3/H Welding Dust Collector 3.0 KW Stable Portable Fume Extractor
CE 3000m3/H Welding Dust Collector 3.0 KW Stable Portable Fume Extractor
CE 3000m3/H Welding Dust Collector 3.0 KW Stable Portable Fume Extractor
Specifications
Brand Name :
LEMAR
Model Number :
LW-C-M1201-030A2
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
500-1000 USD
Payment Terms :
,L/C,D/A,D/P,T/T,Western Union
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Packaging Details :
3000*2000*300mm
Air Volume :
3000 m³/h
Power :
3.0 kW
Voltage :
380V/3P/50Hz (customizable)
Working Pressure :
3000–3500 Pa
Filter Efficiency :
≥99.9% @ 0.3μm
Noise Level :
≤75 dB(A)
Control Mode :
Button control / optional frequency conversion
Protection Class :
IP54
Product Size :
680 × 650 × 1210 mm
Description
Factory Welding Fume Extractor with Stable Performance Design
The Factory Welding Fume Extractor with Stable Performance Design is a professional fume purification device designed specifically for industrial welding workshops, emphasizing long-term stable operation. Its core features maintain stable suction, efficient filtration, and low failure rate under high load and continuous operation, ensuring workshop air safety and production continuity.
Specification Value
Air volume 1500-5000 m³/h
Filtration efficiency ≥99.9% @ 0.3μm
Motor power 1.5-5.5 kW (Variable Frequency / Explosion-proof)
Negative pressure 1000-1500 Pa
Inhalation arm length 2-4 m (360° rotation)
Cleaning method Automatic pulse backflush
Applicable working conditions Continuous welding, multi-station, robotic welding
CE 3000m3/H Welding Dust Collector 3.0 KW Stable Portable Fume Extractor CE 3000m3/H Welding Dust Collector 3.0 KW Stable Portable Fume Extractor
Power System: Stable Suction Power, Sustained Output
  • High-stability fan/motor: Employs a pure copper core, variable frequency, explosion-proof motor with a dynamically balanced impeller, maintaining a constant speed (e.g., 2800 r/min) and delivering continuous negative pressure (1000-1500 Pa) and stable airflow, preventing suction attenuation.
  • Overload/overheat protection: Built-in temperature control and overcurrent protection circuits prevent motor burnout, suitable for 24-hour continuous operation.
  • Low noise and low vibration: Optimized air duct and vibration damping design reduce overall machine vibration, preventing airflow loss and component loosening due to vibration.
Structure and Capture Design
  • Robust Body: Thickened steel plate (2mm+) welded structure, resistant to deformation and vibration, suitable for harsh workshop environments.
  • Flexible Suction Arm: 360° rotating, can hover, built-in stainless steel frame, low wind resistance, long service life, precisely close to the welding torch (≤5cm), source capture efficiency ≥95%.
  • Multi-Station/Centralized Configuration: Dual/multiple suction arms, centralized piping system, suitable for large workshops and simultaneous operation of multiple welding machines.
Core Advantages
  • Long-term stable operation: Suction power remains constant, filter cartridges are less prone to clogging, and continuous operation is trouble-free, suitable for workshops with three shifts.
  • Low maintenance costs: Automatic dust removal + long-life filter cartridges reduce replacement frequency and downtime.
  • Safe and reliable: Multiple fireproof, explosion-proof, and overload protections eliminate the risk of fire and equipment damage.
  • Environmentally compliant: Consistently meets emission standards, satisfying OSHA, GB, CE, and other occupational health and environmental standards.
  • Protecting worker health: Continuous purification effectively reduces the risk of occupational diseases such as welding dust lung and heavy metal poisoning.
Product Delivery Service
Free On-Site Survey
Our domestic team will visit your location to measure workstation layout, welding processes, and dust generation, and customize a suitable solution. For overseas clients, we provide remote survey guidance and standardized survey forms to ensure accurate solutions.
Multilingual Documentation
We provide multilingual versions of installation manuals, operation guides, maintenance manuals, and CE/OSHA/GB certification documents to meet the compliance requirements of overseas clients.
Safe Packaging and Logistics
For domestic clients, we use wooden crates + stretch film + pallet packaging; for overseas clients, we use customs-exempt bakelite packaging, supporting FOB Shanghai Port, CIF destination port, and other terms, with full logistics tracking.
