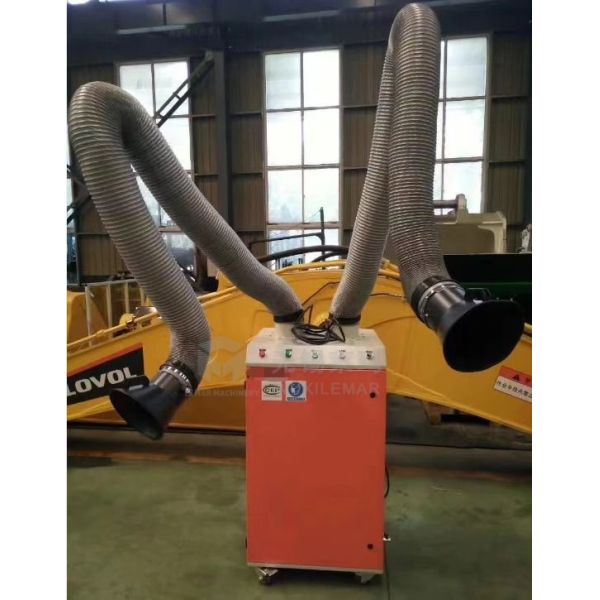

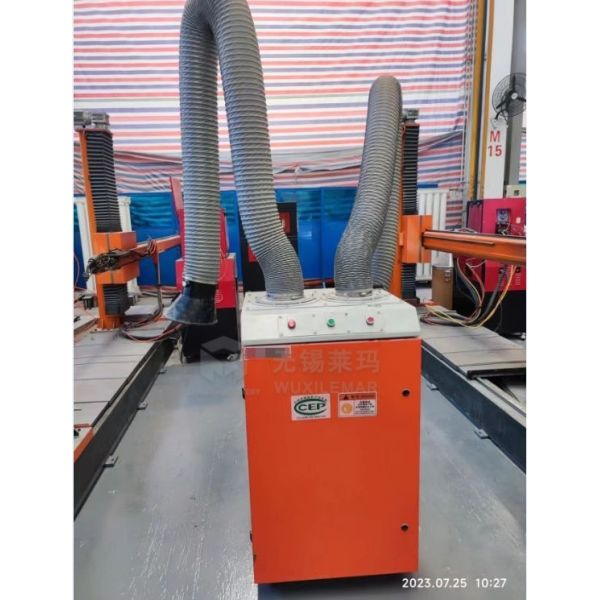

1000 - 1500m3/H Welding Smoke Extractor Particles Commercial Dust Collector
1000 - 1500m3/H Welding Smoke Extractor Particles Commercial Dust Collector
1000 - 1500m3/H Welding Smoke Extractor Particles Commercial Dust Collector
1000 - 1500m3/H Welding Smoke Extractor Particles Commercial Dust Collector
1000 - 1500m3/H Welding Smoke Extractor Particles Commercial Dust Collector
1000 - 1500m3/H Welding Smoke Extractor Particles Commercial Dust Collector
Specifications
Air Flow :
1100-20000 m³/h
Voltage :
220V/380V/415V/480V 50/60Hz
Brand Name :
LEMAR
Place of Origin :
WUXI
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,
Packaging Details :
3000*2000*300mm
Suction arm :
Single arm / Double arms
Material :
Thickened steel plate, static plastic spraying
Noise :
65-75 dB(A)
Filtration efficiency :
≥99.9% at 0.3μm
Model Number :
LW-C-M1201-030A2
Certification :
CE
Price :
100-500 USD
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Air Pressure :
1500-3500 Pa
Type :
Mobile / Portable / Stationary / Central Type
Arm length :
2m, 3m, 4m
Movement :
Casters with brake
Power :
0.75kW, 1.1kW, 1.5kW, 2.2kW, 3kW, 5.5kW, 7.5kW...
Description
Commercial Dust Collector for Welding Smoke and Particles
This commercial-grade air purification system is specifically engineered for industrial welding applications. It effectively captures and purifies welding fumes, metal particles, and harmful gases at the source, protecting worker health while meeting environmental emission standards.
Technical Specifications
Air Flow 1000-1500 m³/h
Power 1.0-3.0 kW
Voltage 220V/380V, 50/60Hz
Air Pressure 1500-3000 Pa
Filter Efficiency ≥99.9% for 0.3μm particles
Suction Arm 2m / 3m / 4m, 360° flexible
Dust Collection Drawer type, 10-30L
Noise Level ≤75 dB(A)
1000 - 1500m3/H Welding Smoke Extractor Particles Commercial Dust Collector
1000 - 1500m3/H Welding Smoke Extractor Particles Commercial Dust Collector
Core Components
Suction Arm/Collection Hood
360° rotation with damped suspension, high-temperature resistant hose for precise source capture
Fan System
Variable frequency centrifugal fan, high temperature resistant (150℃), adjustable airflow with low noise design
Filter Cartridge
PTFE membrane polyester pleated filters with flame retardant and antistatic properties, high dust holding capacity
Pulse Cleaning System
Compressed air tank with solenoid valve and nozzle, automatic cleaning triggered by timer or differential pressure
Dust Collection Device
Drawer/hopper type design for easy cleaning and prevention of secondary dust generation
Control System
PLC/microcontroller monitoring differential pressure, airflow, and filter life with remote start/stop capability
Product Advantages
  • Source capture technology ensures high purification efficiency and eliminates smoke diffusion
  • Powerful suction provides stable and consistent airflow performance
  • Automatic dust removal eliminates frequent manual cleaning requirements
  • Flexible mobility suitable for multi-workstation rotation
  • Low noise operation meets workshop environmental standards
  • Fireproof and anti-static design ensures safer industrial environment
  • Robust construction with low failure rate for long-term reliability
Air Intake Arm Details
Material High-temperature resistant, flame-retardant flexible hose (withstands >200℃)
Support External spring/bracket for secure positioning without sagging
Diameter φ140mm / φ160mm / φ200mm
Length 2m, 3m, 4m, 5m (customizable options available)
Suction Hood Equipped with adjustable valve for on/off airflow control
After-Sales Service and Support
  • Commercial Dust Collector for Welding Smoke and Particles - 1-Year Warranty
  • Long-Term Supply of Consumable Parts (Filters)
  • Complete Documentation: English Instruction Manual, Electrical Diagram, Installation Video
  • Lifetime Technical Support for Wiring, Debugging, and Troubleshooting
  • Optional On-Site Service by Overseas Engineers
