Specifications
Brand Name :
LEMAR
Model Number :
LW-C-M1201-030A2
Certification :
CE
Place of Origin :
WUXI
MOQ :
1
Price :
100-500 USD
Payment Terms :
L/C,D/A,D/P,Western Union,T/T
Supply Ability :
500 units/month
Delivery Time :
15-25 work days
Packaging Details :
3000*200*300mm
Air volume :
1500 m³/h
Motor power :
1.1 kW
Operating voltage :
220V/380V optional
Inhalation arm length :
2~3 m (360° omnidirectional positioning)
Filtering stages :
Three-stage filtration
External dimensions :
Approximately 550×550×1200 mm
Equipment weight :
Approximately 65~75 kg
Cleaning method :
Manual cleaning / Pulse cleaning optional
Installation method :
Mobile (with braked casters)
Description

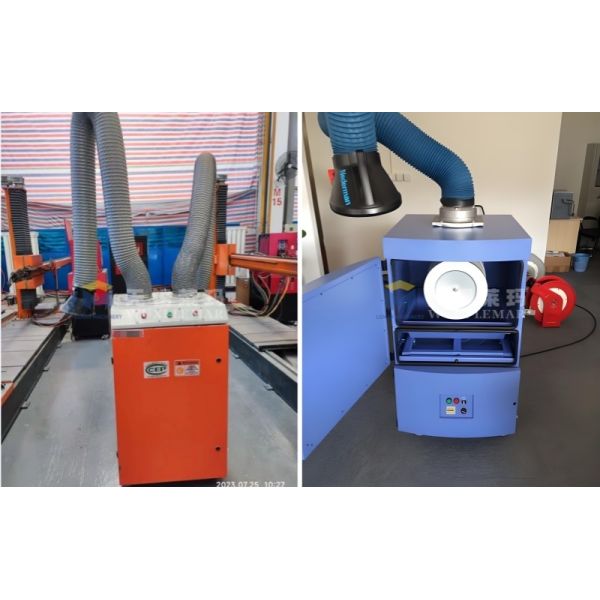

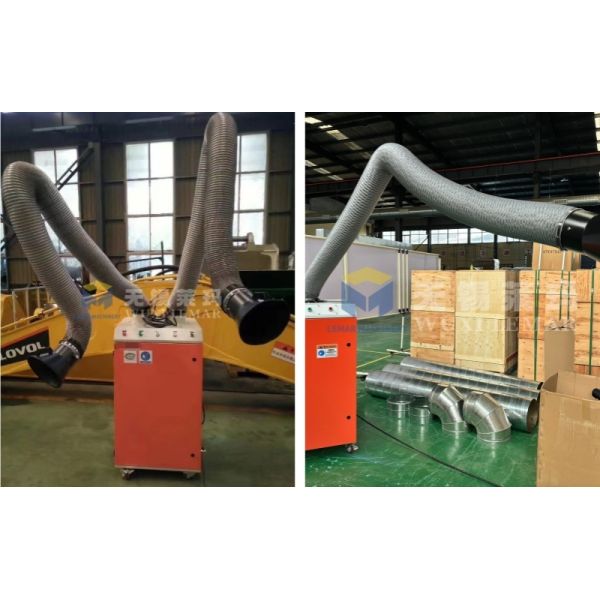

Welding Fume Collector with HEPA and Activated Carbon Filter
The Welding Fume Collector with HEPA and Activated Carbon Filter is an industrial-grade mobile purification device specifically designed to collect, filter, and purify fumes, dust, harmful gases, and odors generated during welding processes. Through a multi-stage filtration system, it achieves clean air emission, protects operator health, and meets workshop environmental emission requirements.
Technical Specifications
Specification Value
Air Volume 800-1500 m³/h
Power 0.75-1.5 kW
Voltage 220V / 380V optional
Inhalation Arm Length 2m / 3m
Filtration Level HEPA H13 + activated carbon
Noise ≤65-72 dB
Exterior Material Cold-rolled steel sheet / powder coating
HEPA Filter Welding Dust Collector 1500m3/H Activated Carbon Filter Fume Collector
HEPA Filter Welding Dust Collector 1500m3/H Activated Carbon Filter Fume Collector
Main Functions
  • Highly efficient purification of welding fumes and dust - Suitable for MIG/MAG/TIG/manual arc welding/plasma cutting applications
  • Removal of harmful gases and odors - Activated carbon adsorbs ozone, oil fumes, and irritating odors
  • Indoor circulating exhaust - No external duct required, does not consume workshop heating or cooling air, energy-saving and easy to install
  • Protection of welder health - Reduces inhalation of dust, heavy metals, and carcinogenic fumes
  • Mobile design for flexible use - Equipped with casters for movement between different workstations
  • Environmental compliance - Meets workshop environmental inspection and occupational health and safety standards
Product Advantages
  • Dual filtration system: HEPA + activated carbon for comprehensive smoke and odor purification
  • Moveable and flexible design with plug-and-play operation, no ductwork required
  • High efficiency and low noise operation with powerful suction capability
  • Easy filter replacement for low maintenance costs
  • Flame-retardant design for enhanced safety
  • Suitable for multi-station, small-batch, and flexible production scenarios
Company Advantages
  • Professional Manufacturer with Extensive Experience - Specializing in R&D, production, and sales of welding fume purifiers and industrial environmental purification products with mature production processes and strict quality control
  • Strong R&D and Technical Strength - Professional team continuously optimizing product structure, filtration effect, suction power, and energy efficiency to meet international industrial safety and environmental standards
  • Strict Quality Control - Every unit undergoes rigorous testing for suction power, noise, airflow, and filtration efficiency to ensure safe and durable performance
  • Complete Product Range - Mobile welding fume purifiers, single-arm/double-arm models, standard models, and customized solutions for diverse workshop requirements
  • Factory Direct Supply - High cost-effectiveness with competitive prices by eliminating intermediaries
  • Comprehensive After-Sales Service - Technical support, installation guidance, filter replacement, and maintenance solutions
  • Mature Foreign Trade Export Experience - Products sold internationally with expertise in logistics, packaging, customs clearance, and efficient order delivery
