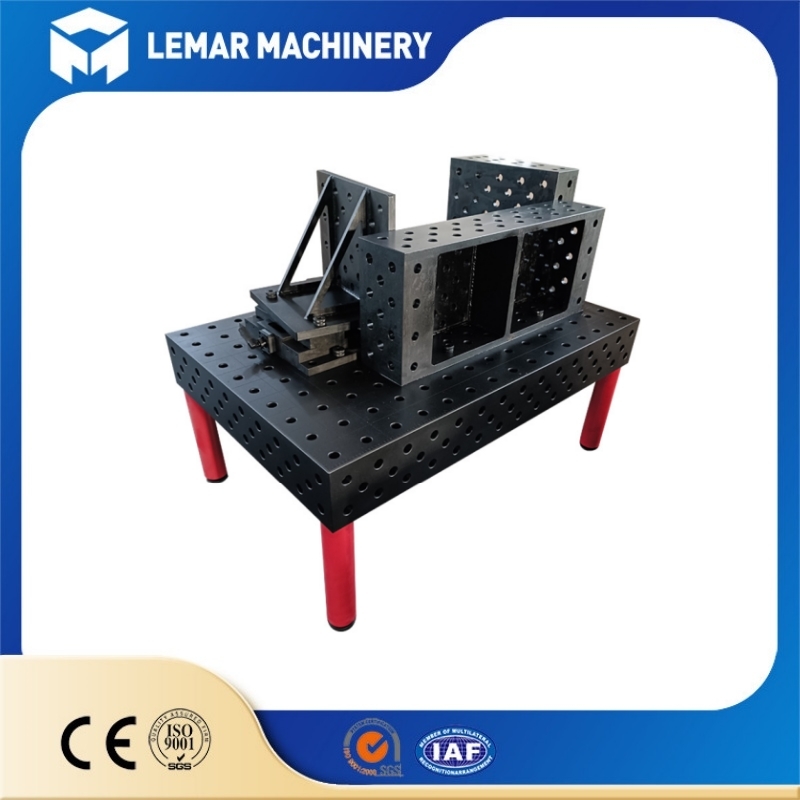

The High Precision D28 Flexible 3D Modular Welding Work Table is a professional-grade fixturing platform designed for metal fabrication shops that demand accuracy, versatility, and efficiency. Built around the industry-standard 28mm hole system on a 100mm grid pattern, this table enables rapid setup and reconfiguration for welding, assembly, and inspection tasks.

The 3D modular design allows fixturing across five working surfaces — the top plus all four side edges — giving fabricators unmatched flexibility for complex three-dimensional projects. Nitrided surface treatment delivers exceptional hardness and spatter resistance, ensuring years of reliable service in heavy production environments.

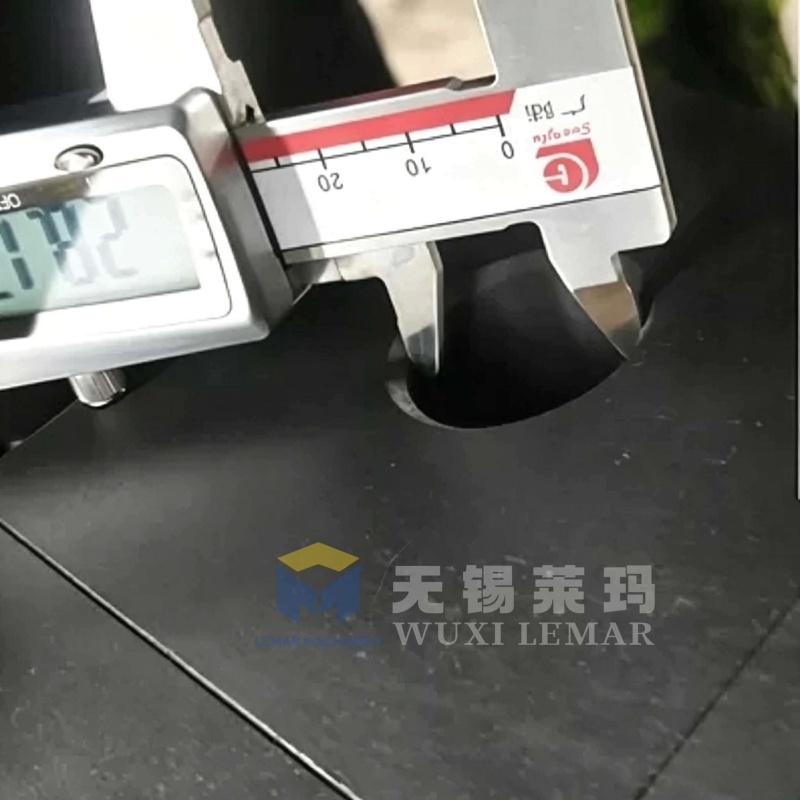

• Industry-Leading Precision: With flatness tolerance below 0.05mm per meter and hole positioning accuracy within 0.05mm, this table delivers consistent, repeatable results for every project. Precision-machined surfaces ensure that fixtures align perfectly every time, reducing rework and improving weld quality across batch production runs.
• Five-Sided 3D Modular Fixturing: Unlike standard flat welding tables, this 3D system supports clamping and fixturing on the top surface and all four vertical side edges. This multi-directional capability lets you build complex jigs, vertical assemblies, and three-dimensional structures that would be impossible on a conventional 2D table.
• Universal D28 Compatibility: The 28mm hole system on a 100mm grid is the global industry standard for heavy-duty welding tables. It works seamlessly with all major brand D28 accessories including locking pins, angle brackets, stop blocks, clamps, and support columns, giving you access to thousands of off-the-shelf fixturing components.
• Nitrided Surface for Extended Life: The nitrided surface treatment achieves hardness of HV600 to HV800, providing superior resistance to welding spatter, scratches, and corrosion. Weld spatter chips off easily without damaging the table surface, and the hardened layer maintains precision accuracy far longer than untreated or painted tables.
• Fast Setup and Changeover: The modular hole grid eliminates the need for custom-built jigs and fixtures. You can reconfigure the table for a new project in minutes instead of hours by simply repositioning standard D28 accessories. This flexibility dramatically reduces downtime between jobs and increases overall workshop productivity.
• Heavy-Duty Structural Design: Built with thick plate construction and internal rib reinforcement, this table maintains structural rigidity even under maximum load conditions. Heavy frame models support up to 15 tons with minimal deflection, ensuring consistent alignment and preventing weld seam misalignment caused by table flex during heavy fabrication work.
