D28 Standardized Welding Table with Complete Modular Accessory Range
D28 Standardized Welding Table with Complete Modular Accessory Range
D28 Standardized Welding Table with Complete Modular Accessory Range
D28 Standardized Welding Table with Complete Modular Accessory Range
D28 Standardized Welding Table with Complete Modular Accessory Range
D28 Standardized Welding Table with Complete Modular Accessory Range
D28 Standardized Welding Table with Complete Modular Accessory Range
D28 Standardized Welding Table with Complete Modular Accessory Range
Specifications
Model Number :
D28
Perpendicularity of Side Faces :
≤0.1 mm / 200 mm
Price :
500-1500 USD
Grid Spacing :
100 × 100 mm (Tolerance ±0.05 mm)
Hole Layout :
5-sided machined holes (Top surface + four vertical sides)
MOQ :
1 PCS
Delivery Time :
15-25 work days
Flatness :
≤0.1 mm / 1000 mm (Standard Grade)
Payment Terms :
D/A,L/C,D/P,T/T
Hole Tolerance :
D10
Hole Chamfer :
Standard C2
Supply Ability :
500 units/month
Hole Diameter :
Φ28 mm
Certification :
CE
Place of Origin :
WUXI , CHINA
Packaging Details :
4000*2000*200mm
Surface Hardness :
HV550–850
Brand Name :
WUXI LEMAR
Repeat Positioning Accuracy :
±0.02 ~ ±0.05 mm
Description
D28 Standardized Welding Table with Complete Modular Accessory Range
D28 Standardized Welding Table with Complete Modular Accessory Range

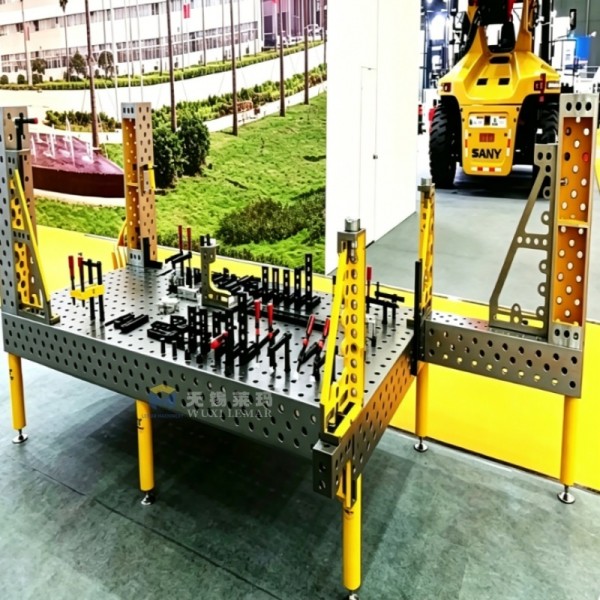

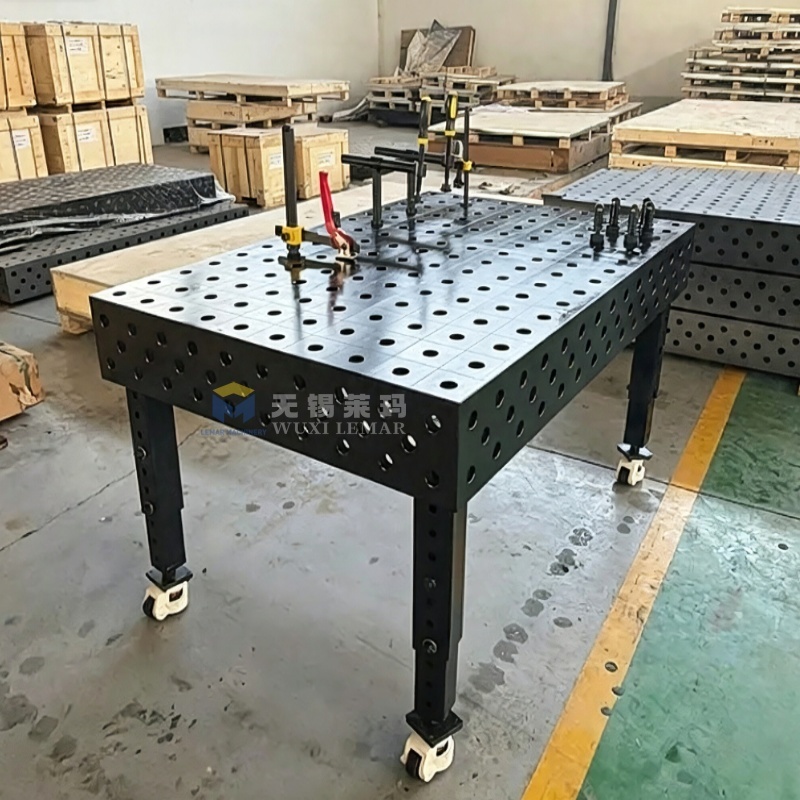

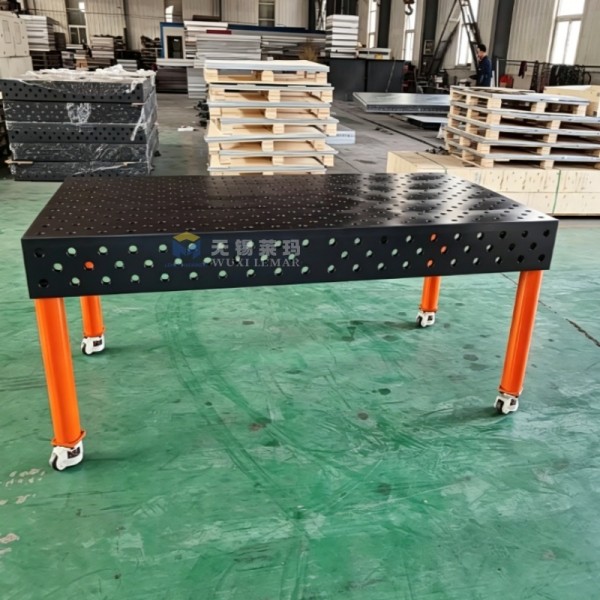

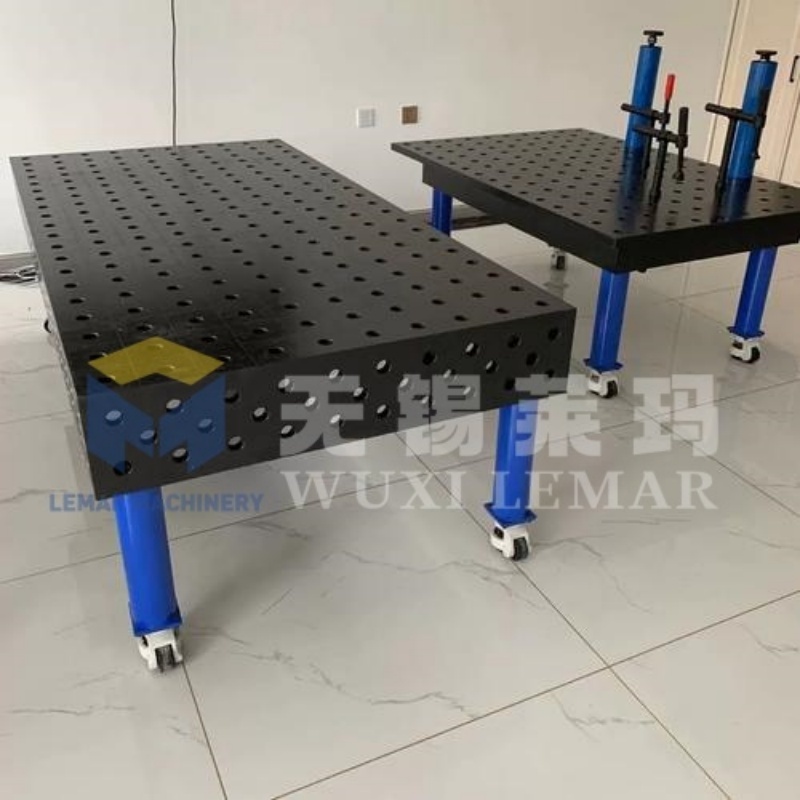

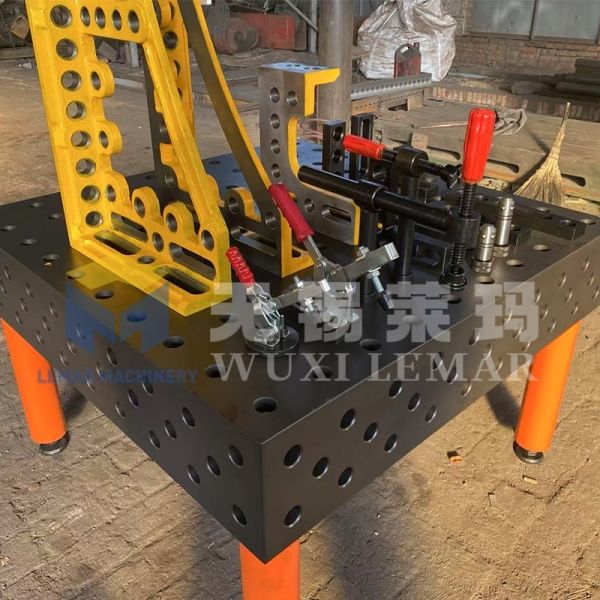

The D28 Standardized Welding Table with Complete Modular Accessory Range represents a universal heavy-duty 3D flexible welding platform. Adopting the standard D28 hole system, the table supports multi-angle three-dimensional positioning. Paired with a comprehensive range of modular locating, supporting and clamping accessories, you can build dedicated fixtures for different workpieces within minutes.

Select from cast iron or high-strength steel body options with wear-resistant nitrided surfaces. Perfect for both manual welding workshops and robotic welding stations, this modular welding system improves assembly accuracy and maximises production flexibility for heavy fabrication projects.

D28 Standardized Welding Table with Complete Modular Accessory Range D28 Standardized Welding Table with Complete Modular Accessory Range
Table Dimensions & Standard Parameters
Table Size (Length × Width) Platform Thickness Standard Grid Hole Spec Max Uniform Load
1000 × 1000 200 100×100 mm Φ28 mm, D10 5 t/㎡
1200 × 1200 200 100×100 mm Φ28 mm, D10 5 t/㎡
1500 × 1000 200 100×100 mm Φ28 mm, D10 6 t/㎡
2000 × 1000 200 100×100 mm Φ28 mm, D10 6 t/㎡
2400 × 1200 200 100×100 mm Φ28 mm, D10 8 t/㎡
3000 × 1500 200 100×100 mm Φ28 mm, D10 8 t/㎡
4000 × 2000 200 100×100 mm Φ28 mm, D10 10 t/㎡
Bearing Technical Specifications
  • Static uniform load capacity: 5-12 t/m² (standard specifications); heavy-duty customized load capacity up to 15 t/m²
  • Single-point concentrated load: Localized long-term heavy pressure is prohibited; tooling supports are recommended to be distributed in a dispersed manner
  • Splicing capability: Multiple D28 welding tables can be seamlessly spliced together via connecting pins to form a large continuous working surface, maintaining consistent flatness after splicing
  • Compatible support systems: Adjustable horizontal support legs, fixed steel frame, lockable heavy-duty casters, hydraulic lifting base
Craftsmanship Value

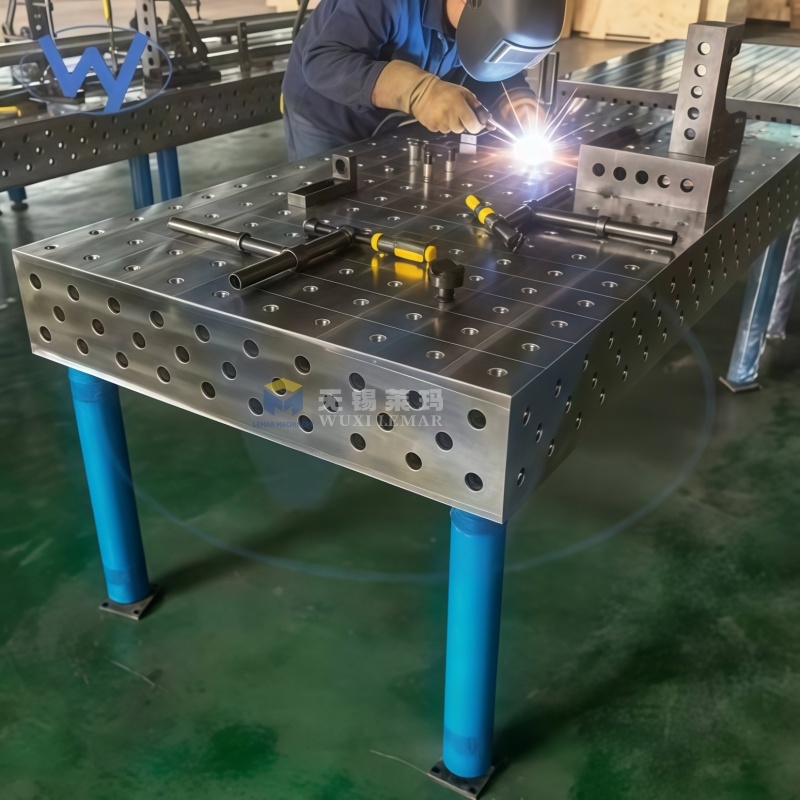

D28 Standardized Welding Table with Complete Modular Accessory Range D28 Standardized Welding Table with Complete Modular Accessory Range

D28 welding table standardized hole patterns establish a unified 3D datum, eliminating the need for traditional custom-welded fixtures:

  • Quickly assemble tooling using standard modular components based on workpiece drawings
  • Rapid positioning and locking via pins reduce setup time by over 60% compared to traditional tooling
  • Easily disassemble and reconfigure accessories for product changeovers; a single platform supports dozens of different products
  • Enables 3D positioning across X, Y, and Z axes, making it ideal for the assembly of frames, housings, and complex steel structures
  • Ensures high datum consistency, compatible with both manual welding and robotic automated welding stations
  • Improves dimensional consistency in batch production, reducing defects caused by weld misalignment or out-of-tolerance dimensions

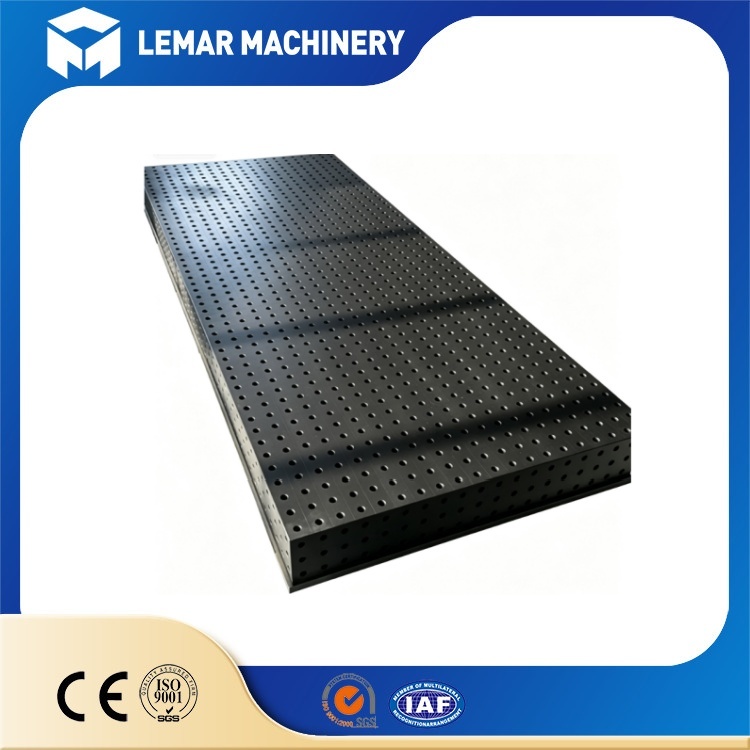

Product Certification
D28 Standardized Welding Table with Complete Modular Accessory Range
FAQ
What trade terms do you support?
We support EXW, DDP, FOB, CFR and CIF. Lead time will be confirmed once your official order is received.
Can you provide technical documents and certification files?
Yes. We can supply product drawings, 3D STEP models, factory inspection reports and CE relevant documents. Custom fixture layout suggestions are also available.
How are goods packed for sea shipment?
Welding Tables are packed with free-fumigated wooden pallets or steel frames to avoid damage during long-distance ocean transport.
Can I order only the table without accessories?
Yes. We support flexible orders: single welding table, basic accessory kits or complete modular fixture packages according to your production demands.
Can I get sample testing before bulk orders?
Single-size welding tables and small accessory sets are available for trial orders. Customers can verify precision, surface quality and assembly performance before placing mass purchase orders.
Our D28 Standardized Welding Table with Complete Modular Accessory Range delivers stable precision and flexible reusability for all heavy welding projects.
Share your workpiece requirements, workshop layout or target dimensions via inquiry. We are ready to offer professional technical support and suitable package suggestions for your fabrication business.
