Accurate Grid Positioning High Flatness D16 3D Welding Fixture Work Table
Product Overview
Accurate Grid Positioning High Flatness D16 3D Welding Fixture Work Table

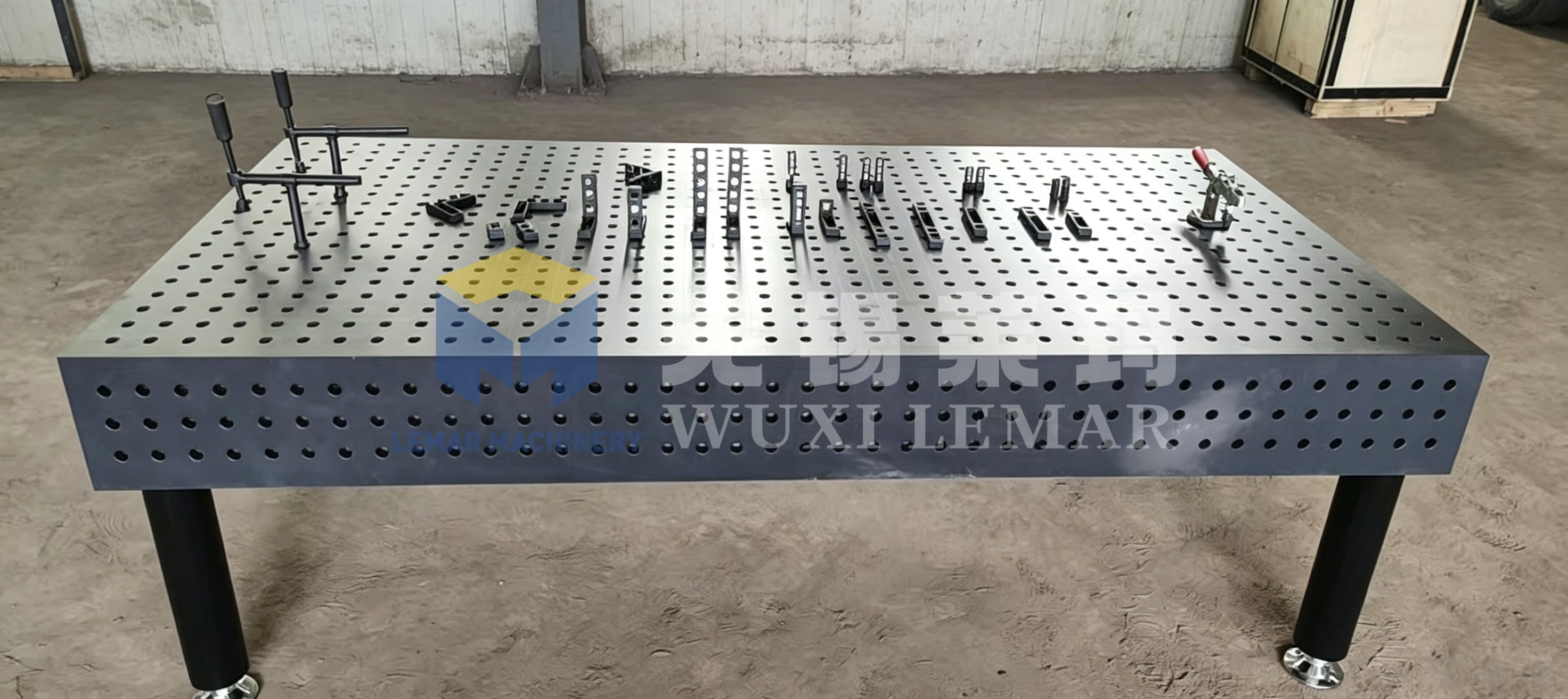

Precision meets versatility. Our D16 3D Welding Fixture Work Table delivers pinpoint grid positioning and ultra-high flatness in a compact, affordable package. Built around the 16mm grid system on 50mm centers, this table gives you the fixturing accuracy of a professional 3D welding table—perfect for small parts, detailed assemblies, and shops that demand precision without the heavy-duty price tag.

Every hole is drilled to tight tolerances. Every surface is machined flat. Every clamping point is exactly where you need it. Set up once, weld perfectly, repeat forever.

Product Parameters
Accurate Grid Positioning High Flatness D16 3D Welding Fixture Work Table
Parameter Specification
Grid System D16 – 16mm holes on 50mm centers
Hole Tolerance H7 (16.000 ~ 16.018mm)
Positioning Accuracy ±0.05mm repeatability
Tabletop Material HT300 gray cast iron
Tabletop Thickness 60mm
Surface Treatment Nitrided (HV ≥ 600)
Flatness Tolerance ±0.1mm per m²
Static Load Capacity 3,000 kg
Standard Sizes 1000×750, 1200×800, 1500×1000mm
Working Height 820mm (custom available)
Product Advantages
Accurate Grid Positioning High Flatness D16 3D Welding Fixture Work Table
Precision Grid Positioning

D16 50mm grid with H7 tolerance holes – ±0.05mm repeatable accuracy for consistent, error-free fixturing every time.

Guaranteed High Flatness

Stress-relieved + double-surface milled to ±0.1mm/m². Stays flat for years – no warping, no rework.

3D Fixturing Capability

Build vertically and horizontally. Full accessory ecosystem for complex multi-level weldments.

Nitrided Hardened Surface

HV 600+ nitriding repels spatter, resists wear, and keeps holes precise 10+ years.

Universal Compatibility

Industry-standard D16 grid works with Siegmund/Demmeler accessories – no proprietary lock-in.

Modular and Expandable

Bolt tables together for larger work. Start small, grow as your business does.

Product Applications
Accurate Grid Positioning High Flatness D16 3D Welding Fixture Work Table
Small parts fabrication – brackets, mounts, hinges, fittings
Sheet metal assemblies – enclosures, panels, frames
Tube and pipe welding – roll cages, handrails, furniture
Prototype development – quick, accurate test setups
Jewelry and precision metalwork – fine detail, tight tolerances
Educational and training – teach proper fixturing techniques
Customer Feedback
Accurate Grid Positioning High Flatness D16 3D Welding Fixture Work Table
Shipping and Delivery
Accurate Grid Positioning High Flatness D16 3D Welding Fixture Work Table
Contact Us

Contact us today for a free consultation and quote. Our team will help you select the perfect D16 welding table and accessory package for your shop.
