D28 Modular Welding Table For Construction Steel Beam Processing Factory
D28 Modular Welding Table For Construction Steel Beam Processing Factory
D28 Modular Welding Table For Construction Steel Beam Processing Factory
D28 Modular Welding Table For Construction Steel Beam Processing Factory
D28 Modular Welding Table For Construction Steel Beam Processing Factory
D28 Modular Welding Table For Construction Steel Beam Processing Factory
D28 Modular Welding Table For Construction Steel Beam Processing Factory
D28 Modular Welding Table For Construction Steel Beam Processing Factory
D28 Modular Welding Table For Construction Steel Beam Processing Factory
D28 Modular Welding Table For Construction Steel Beam Processing Factory
Specifications
Supply Ability :
500 units/month
System Standard :
D28 Φ28mm hole, 100×100mm grid spacing
Model Number :
D28
Load Capacity :
2–8 tons/㎡
Price :
500-1500 USD
Hole Precision :
±0.05mm
Table Flatness :
Standard ≤0.1mm/1000mm / Precision ≤0.05mm/1000mm
MOQ :
1 PCS
Delivery Time :
15-25 work days
Table Thickness :
25mm
Payment Terms :
D/A,L/C,D/P,T/T
Material Options :
Q355 Nitrided Alloy Steel/HT300 Cast Iron
Side Verticality :
≤0.1mm/200mm
Brand :
Custom OEM/ODM
Certification :
CE
Place of Origin :
WUXI , CHINA
Brand Name :
WUXI LEMAR
Surface Treatment :
Overall nitriding
Packaging Details :
4000*2000*200mm
Description
D28 Modular Welding Table For Construction Steel Beam Processing Factory
D28 Modular Welding Table For Construction Steel Beam Processing Factory

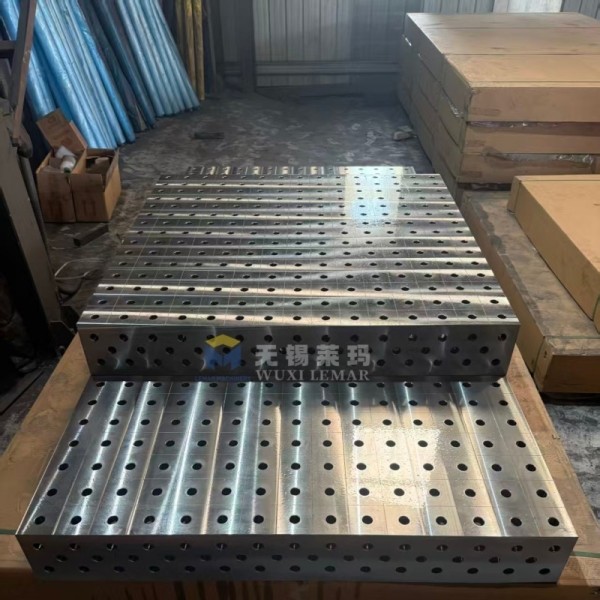

D28 Modular Welding Table For Construction Steel Beam Processing Factory is a professional industrial 3D flexible welding solution tailor-made for steel beam manufacturing, structural steel fabrication, and heavy steel structure processing plants. Built with industry-standard Φ28mm modular hole systems and full five-sided precision perforated design, this heavy-duty welding table delivers ultra-stable clamping, high-precision assembly, and low-deformation welding performance for all types of construction steel beams, H-beams, steel columns, and truss components. Replace inefficient custom single-purpose welding jigs with our reusable, spliceable, and robot-compatible D28 modular platform to boost production efficiency, reduce tooling costs, and ensure consistent workpiece accuracy for mass and custom steel structure orders.

D28 Modular Welding Table For Construction Steel Beam Processing Factory D28 Modular Welding Table For Construction Steel Beam Processing Factory
Standard Technical Parameters
Item Technical Specification
Standard Hole System Φ28mm, 100mm×100mm grid spacing
Hole Position Accuracy ±0.05mm
Table Flatness Standard grade: ≤0.1mm/1000mm; Precision grade: ≤0.05mm/1000mm
Verticality of Side Plate ≤0.1mm/200mm
Maximum Clamping Force 5000kg
Main Material Options HT300 Gray Cast Iron / Q355 Nitrided Steel
Table Thickness 20mm / 25mm / 30mm (custom thickened available)
Load Capacity 2-8 tons/㎡ (depending on material)
Standard Sizes 1500×1000 / 2000×1000 / 2000×1500 / 3000×1500 / 4000×2000mm
Splicing Method Seamless integral splicing with D28 positioning pins
Certification CE / SGS / Factory Material Test Report
Capacity & Benefits
  • Reduce tooling production costs by 80% - Each type of traditional steel beam is individually welded with a dedicated tire frame, with material and processing costs of several thousand yuan per set; D28 modular accessories are reusable, and new products do not require new installation
  • Increase production efficiency by 70% - Traditional tooling production takes 7-15 days; The D28 restructuring tooling only takes 10-30 minutes to complete a steel beam positioning scheme, suitable for flexible production of multi specification orders
  • The repair rate has decreased by 40% - Three dimensional multi-point compression control welding distortion and lateral bending deformation, ensuring consistency in steel beam dimensions and reducing post weld correction and rework polishing time
  • Save 30% of the venue - One welding table can handle the four processes of assembly, welding, calibration, and dimensional inspection, eliminating the need for multiple sets of dedicated tire rack storage space
  • Reduction in manual labor hours - No need for skilled marking workers to manually find benchmarks, novice workers can use hole based rulers to accurately locate and reduce labor costs for skilled workers

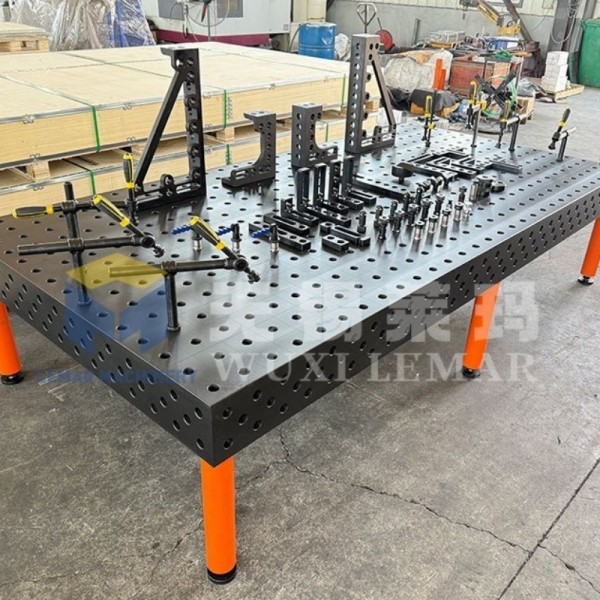

Complete Set of Optional Expansion Accessories
D28 Modular Welding Table For Construction Steel Beam Processing Factory

Four major categories of standard accessories, all interchangeable and can be purchased in batches for expansion:

  • Heavy duty clamping type: 5-ton flip quick clamp, vertical clamping clamp, side tensioning device, pneumatic hydraulic clamp
  • Positioning benchmark class: 90°/45° 3D angle ruler, V-shaped block (supported by circular steel beams), equal height cushion block, telescopic support column
  • Splicing connection type: quick locking pin, splicing positioning pin, extended positioning plate
  • Auxiliary accessories: tool cart, grounding device, lifting ring, nylon hole cleaning brush, rust prevention and maintenance oil set
FAQ
Is this D28 welding table compatible with welding robots?
Fully robot-compatible. The unified standard hole grid provides fixed repeatable positioning. It matches six-axis welding robots and positioners perfectly, supporting one-time teaching and batch high-precision automatic welding.
What is the load capacity and flatness accuracy?
Load capacity: 2-15 tons/㎡ (varies by thickness and material). Standard flatness: ≤0.1mm/1000mm; precision grade: ≤0.05mm/1000mm. All tables are stress-relieved to prevent permanent deformation under long heavy loads.
Do I need to make custom welding jigs after buying this table?
No custom jigs needed. All D28 modular accessories are universal and reusable. You can rebuild tooling layouts in 10-30 minutes for different steel beam models, cutting jig costs and shortening production changeover time.
Do you support customized sizes and OEM services?
Yes, we support full size customization, thickened plates, reinforced structures and robot reserved positions. OEM service and custom accessory packages are also available to match different production lines.
What after-sales support do you provide?
We offer professional installation guidance, operation manuals and video tutorials. Lifelong technical support and factory-cost wearing parts supply are provided to guarantee stable production.
