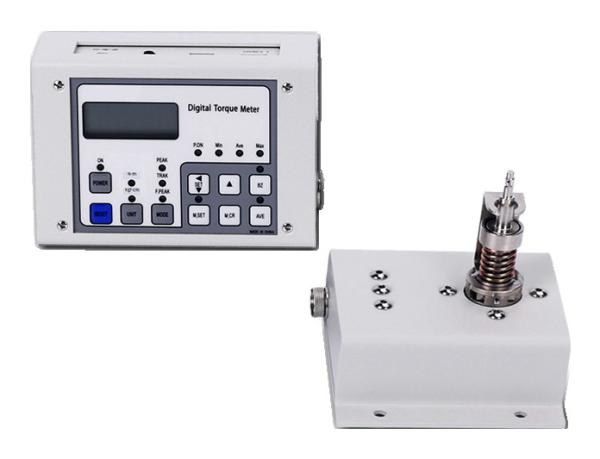

Split type digital torque meter eletronic torque measurement

Introduction:

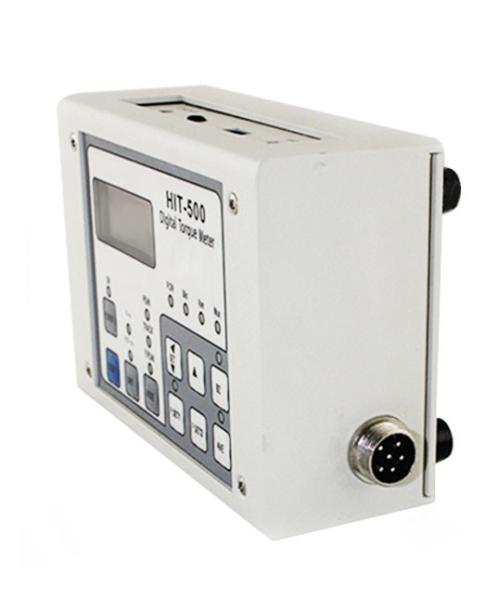

No matter how superior screw tightening tools are, they do not function well unless the torque setting is controlled, the HIT-10, HIT-100, HIT-300 and HIT-500 are instruments for setting the torque of electric screwdrivers, testing such tools as torque drivers and torque wrenches, measuring the torque of rotating parts, and also for systematizing extensive production control process with computers, Designed as easy-to-operate, accurate, and economical tools.

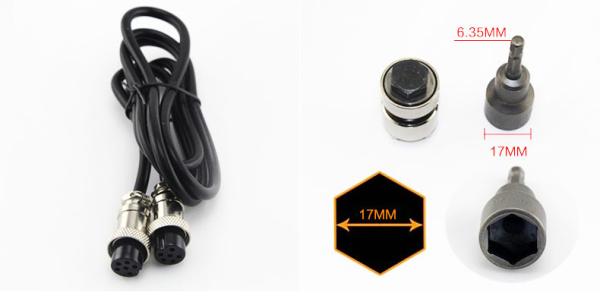

Using The Socket:

By devising the attachments, you can use this tester to measure the torque of tools other than screwdrivers. Careful attention should be given to the following points when

designing attachments.

1. The socket and the attachment should fit each other firmly.

2. The attachment should be durable enough not to break down during measurement.

3. The vertical load on the socket should be no more than 10kg.

4. No impact should be impost on the socket.

5. In addition, observe basic rules of the torque meters

Technical Details

Features:

1. Torque reading is simple and accurate because torque is displayed on a clear digital display.

2. By holding and displaying the peak torque value, you can set torque for tools precisely.

3. Testers work both clockwise and counterclockwise, so you can easily measure torque while tightening and loosening pieces.

4. The product is simple and robust because the strain gauge is directly attached to the torque detector.

5. Specially designed for management of torque for impact drives.

6. First peak measuring mode (F. PEAK) gives precision measurements of torque wrenches or other tools.

7. Confirm peak, FP mode value by buzzer.

Application :

1. For collecting data on holes diameters prepared for tapping screws ;

2. For torque classifiers of rotating parts; For controlling bottle cap fastening ;

3. For testing breakdown of small parts ;

4. For quality control of plastic screws and parts.
