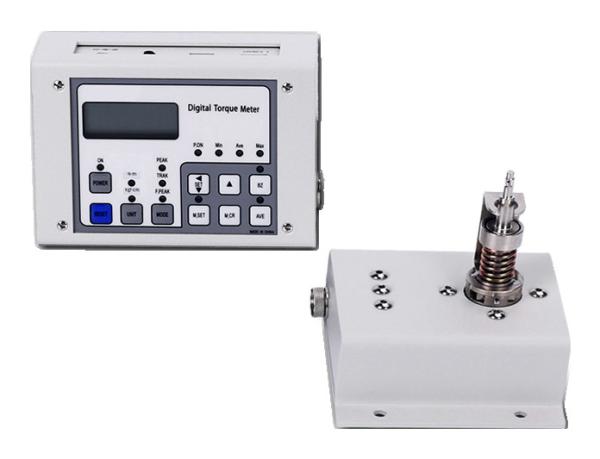

Durable Industrial Digital Torque Meter , Multiscene Torque Measurement Tool
Durable Industrial Digital Torque Meter , Multiscene Torque Measurement Tool
Durable Industrial Digital Torque Meter , Multiscene Torque Measurement Tool
Durable Industrial Digital Torque Meter , Multiscene Torque Measurement Tool
Durable Industrial Digital Torque Meter , Multiscene Torque Measurement Tool
Durable Industrial Digital Torque Meter , Multiscene Torque Measurement Tool
Durable Industrial Digital Torque Meter , Multiscene Torque Measurement Tool
Durable Industrial Digital Torque Meter , Multiscene Torque Measurement Tool
Specifications
Brand Name :
Waterun
Model Number :
W00463
Certification :
GS
Place of Origin :
China
MOQ :
1
Price :
USD262.2~ 611.8
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal, Credit Card
Supply Ability :
20000 units per month
Delivery Time :
3-10 days
Packaging Details :
Packed in carton
Name :
HIT series digital torque meters
Accuracy :
+-0.5% or +-1.0%
Dimensions(mm) :
123 x230 x 65
Measuring Modes :
Peak, Track, First Peak
Type :
HIT-10 / HIT-100/ HIT-300/ HIT-500
Weight :
1.8kg
Power source :
1.2V nicd cell x 5
Description

Digital gauge for measuring torque HIT series torque measurement

Introduction:

They do tfunction well no matter how superior screw tightening tools are. There are four types including HIT-10, HIT-100, HIT-300 and HIT-500 to set the torque of electric screwdrivers, which are used to test such tools as torque drivers and torque wrenches, measuring the torque of rotating parts, and also for systematizing extensive production control process with computers, Designed as easy-to-operate, accurate, and economical tools.

Application:

1. Specially designed for management of torque for impact drives.

2. First peak measuring mode (F. PEAK) gives precision measurements of torque wrenches or other tools.

3. Confirm peak, FP mode value by buzzer.

Example:
1. For collecting data on holes diameters prepared for tapping screws
2. For testing breakdown of small parts
3. For controlling bottle cap fastening
4. For quality control of plastic screws and parts

Durable Industrial Digital Torque Meter , Multiscene Torque Measurement ToolDurable Industrial Digital Torque Meter , Multiscene Torque Measurement Tool

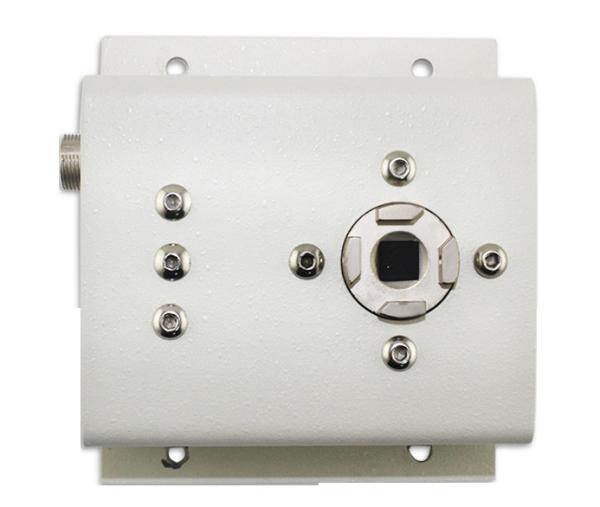

Using The Socket:

By devising the attachments, you can use this tester to measure the torque of tools other than screwdrivers. Careful attention should be given to the following points when

designing attachments.

1. The socket and the attachment should fit each other firmly.

2. The attachment should be durable enough not to break down during measurement.

3. The vertical load on the socket should be no more than 10kg.

4. No impact should be impost on the socket.

5. In addition, observe basic rules of the torque meters

Packing & Shipping:

Product Name
Split Type Digital Torque Meter HIT-500 with 15-500Kgf.cm
Payment
Bank, Paypal, Western Union, Money Gram
Package
1pcs/ctn Carton size: 40 x 31 x 14cm Weight: 2.96kg
Delivery
Within 7 days
Port
Shenzhen
Shipment
1. By Courier: 4-7 Working days by special offer
2. By Air: 7 Working days at appointed airport
3. By Sea: 20-25 Working days at appointed port


Product tags

torque measuring tool

,

screwdriver torque meter

,

torque measuring screwdriver
