Normal type digital torque meter screwdriver torque meter digital torque gauge

Description:

Semi-automatic Epoxy Dispensing Machine have precise gear ration pump can supply glue continuously. Low liquid level reminder, special pull-back type glue closing instruction, can quickly break the glue, the use of high viscosity glue also does not appear drawing phenomenon. The proportion is fixed, the amount of glue can be adjusted, it can be used at any time and matched at any time. The ratio is high and the ratio is proportioned according to the demand to save glue..

Introduction:

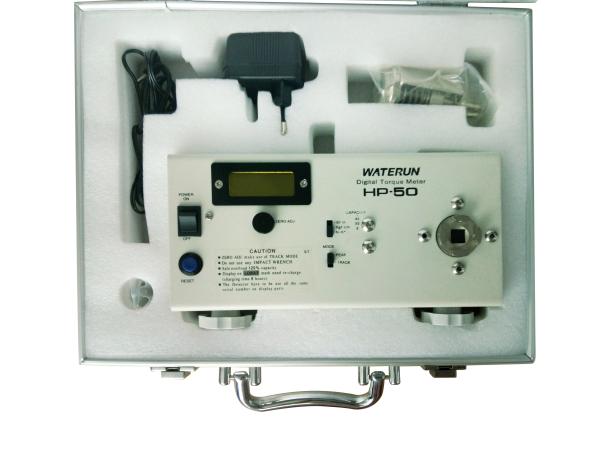

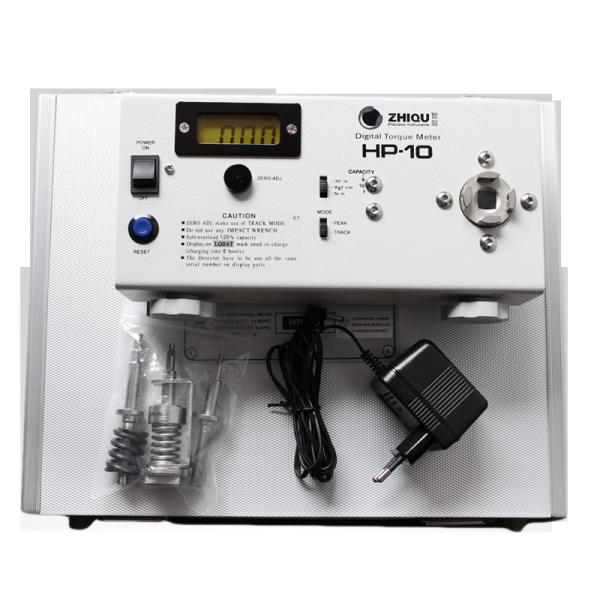

No matter how superior screw tightening tools are, they do not function well unless the torque setting is controlled, the HP-100,HP-50 and HP-10 are instruments for setting the torque of electric screwdrivers, testing such tools as torque drivers and torque wrenches, measuring the torque of rotating parts, and also for systematizing extensive production control process with computers, Designed as easy-to-operate, accurate, and economical tools.

Product Detail:

The HP-100, HP-50 and HP-10 are widely used for products in many industries ranging from electronic equipment ,cameras, watches, and measuring instruments to automobiles and aircraft.

Features:

1. Torque reading is simple and accurate because torque is displayed on a clear digital display.

2. By holding and displaying the peak torque value, you can set torque for tools precisely.

3. Testers work both clockwise and counterclockwise, so you can easily measure torque while tightening and loosening pieces.

4. The product is simple and robust because the strain gauge is directly attached to the torque detector.

5. Meters conform with the SPC(Statistical Process Control)system.

6. The analog output can be used for many applications, including waveform observation, and recording and judgment of measured data.

7. Testers are easy to carry, they are compact, lightweight, and powered by a rechargeable battery.

Application :

1. For measuring the torque setting of electric screwdrivers, torque drivers and torque wrenches

2,For inspecting torque of electric screwdrivers, torque drivers, and wrenches, as well as for Laboratory inspection and function control

3,For many other applications for which jig tools are devised.
