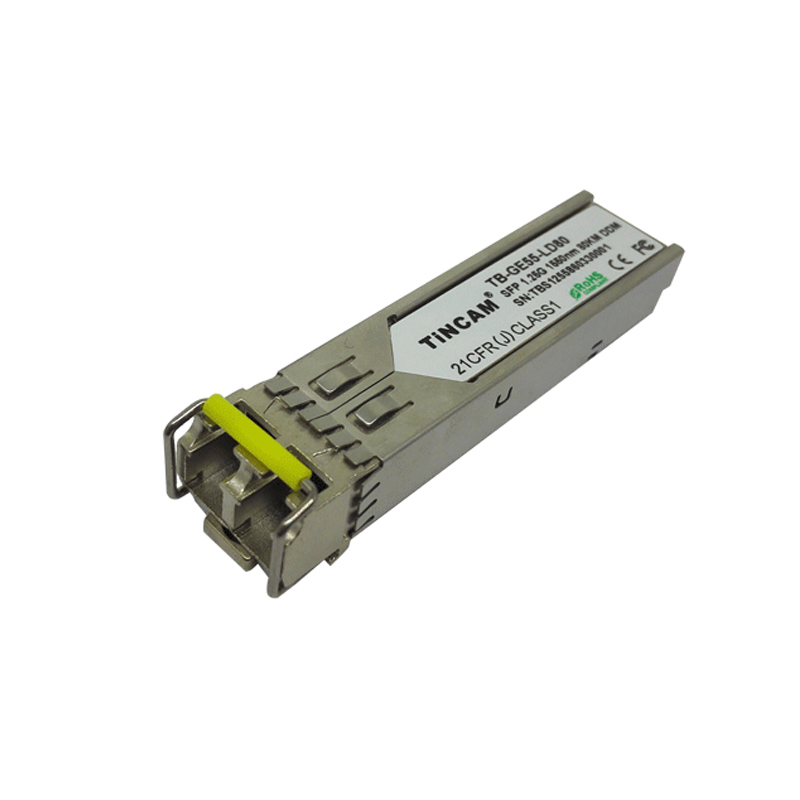

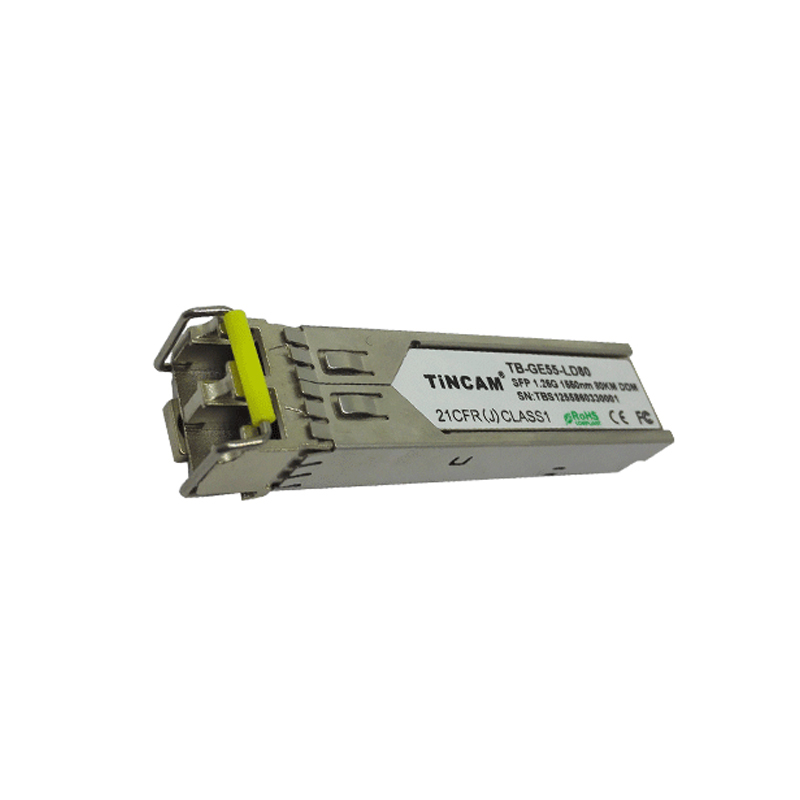

1.25G SFP Module single mode dual fiber 80km
1.25G SFP Module single mode dual fiber 80km
1.25G SFP Module single mode dual fiber 80km
1.25G SFP Module single mode dual fiber 80km
Specifications
Typ. :
3.3
Max. :
70/80/85
Unit :
℃
Min. :
0/-10/-45
Parameter :
Operating Case Temperature
Description

1.25Gbps 80km SFP Transceiver

High-performance, cost-effective SFP modules designed for reliable long-distance data transmission over Single Mode Fiber (SMF).

Key Features & Benefits

  • High Data Rate: Supports 1.25Gbps (Gigabit Ethernet) and 1.0625Gbps (Fiber Channel).
  • Long Reach: Capable of up to 80km transmission distance.
  • Advanced Components: Integrated DFB laser transmitter, PIN photodiode, and TIA with MCU control.
  • Compliance: Fully compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
  • Safety: Satisfies Class I laser safety requirements.

Product Attributes

Compatibility: SFP MSA & SFF-8472
Laser Type: DFB Laser
Fiber Type: Single Mode Fiber (SMF)
Safety Standard: Class I Laser Safety

Technical Specifications

Parameter Min Typ Max Unit
Data Rate (GbE) - 1.25 - Gb/s
Data Rate (FC) - 1.0625 - Gb/s
Supply Voltage 3.1 3.3 3.47 V
Supply Current - - 260 mA
Case Temperature 0/-10/-45 - 70/80/85 ℃
