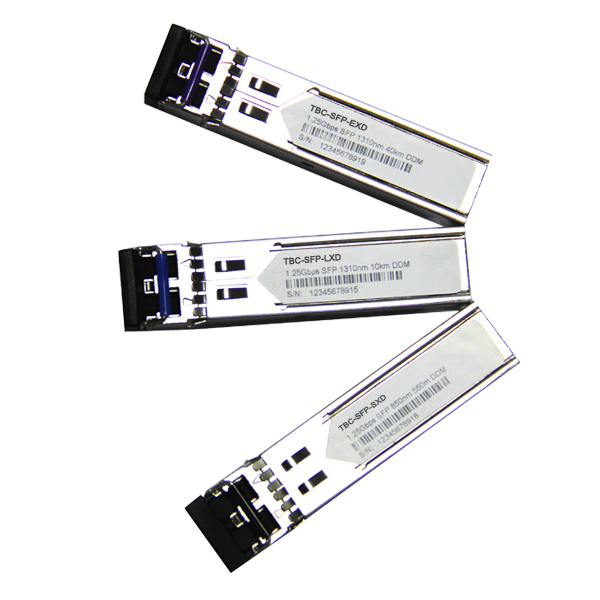

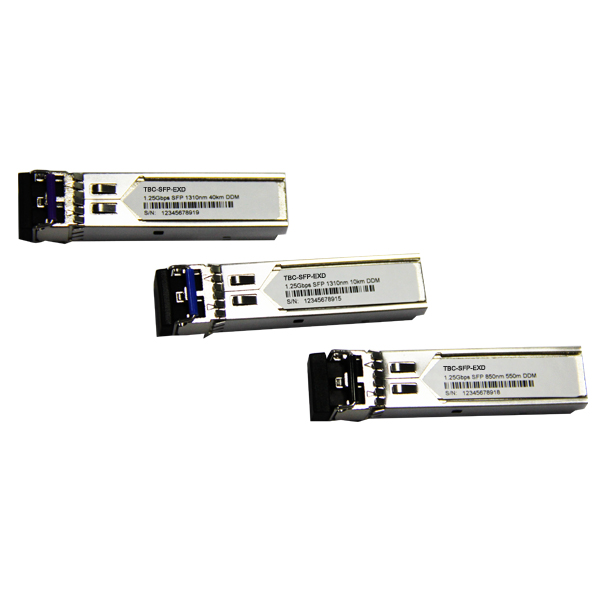

1.25G SFP Module single mode dual fiber 40km
1.25G SFP Module single mode dual fiber 40km
1.25G SFP Module single mode dual fiber 40km
1.25G SFP Module single mode dual fiber 40km
Specifications
Typ. :
3.3
Max. :
70/80/85
Unit :
℃
Min. :
0/-10/-45
Parameter :
Operating Case Temperature (Tc)
Description

1.25Gbps 40km SFP Transceiver

High-performance, cost-effective optical modules designed for reliable long-distance data transmission.

Overview

1.25G SFP Module single mode dual fiber 40km 1.25G SFP Module single mode dual fiber 40km

The SFP transceivers support a data rate of 1.25Gbps and a 40km transmission distance with SMF. The module integrates a DFB laser transmitter, a PIN photodiode with TIA, and an MCU control unit.

  • High Performance: Supports 1.25Gbps data rates.
  • Long Range: Capable of up to 40km transmission distance.
  • Safety Certified: Satisfies Class I laser safety requirements.
  • Compatibility: Compliant with SFP MSA and SFF-8472 standards.

Technical Specifications

Parameter Min Typ Max Unit
Data Rate (Gigabit Ethernet) - 1.25 - Gb/s
Data Rate (Fiber Channel) - 1.0625 - Gb/s
Supply Voltage (Vcc) 3.1 3.3 3.47 V
Supply Current (Icc) - - 220 mA
Operating Case Temp (Tc) 0/-10/-45 - 70/80/85 ℃
