Bitumen Coated Asphalt Pavement Fiberglass Geogrids For Road Highway Pavement Construction
Bitumen Coated Asphalt Pavement Fiberglass Geogrids For Road Highway Pavement Construction
Bitumen Coated Asphalt Pavement Fiberglass Geogrids For Road Highway Pavement Construction
Bitumen Coated Asphalt Pavement Fiberglass Geogrids For Road Highway Pavement Construction
Specifications
Brand Name :
SZ
Model Number :
FG
Certification :
ISO,CE
Place of Origin :
China
MOQ :
10,000 Square Meter
Price :
$0.3-$2.0/SQM
Payment Terms :
L/C,T/T
Supply Ability :
100,000 Square Meters per Week
Delivery Time :
5-8 Working day
Packaging Details :
By roll, paper pipe + black PE shrinkage membrane + woven bag ( waterproof & UV resistance)
Product Name :
Fiberglass Geogrid
Function :
Asphalt Pavement
Coating :
Bitumen & asphalt geogrid
Mesh size :
25.4*25.4mm 12.5*12.5 50.8*50.8
Material :
Fiberglass Yarn
Width :
1/2/3/3.95/4/5/5.95/6m
Standard :
ISO, GB,ASTM
Certificates :
ISO, CE
Strength :
30-200kn/m
Elongation :
3%
Description

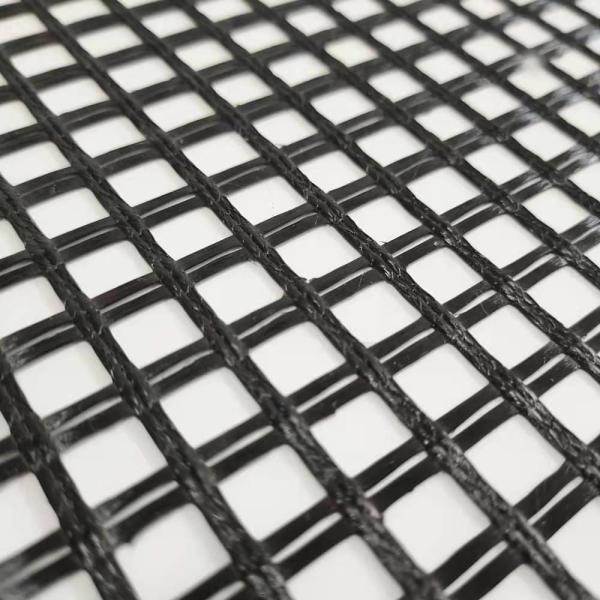

Bitumen Coated Asphalt Pavement Fiberglass Geogrid For Road Highway Pavement Construction

Description

Fiberglass Geogrid is a kind of new favorable earthwork base material to strengthen the road surface and roadbed. This product is made by weaving and covering fiberglass filament. fiberglass geogrid is produced by our import German "Liba" warp knitting machine.

Product Features

· High tensile strength,reducing reflective cracking

· Low elongation, its break elongation is less than 3%

· Creep resistance

· Consistency

· Temperature Stability

· Nesting,Interlock and Restraint Effects

Bitumen Coated Asphalt Pavement Fiberglass Geogrids For Road Highway Pavement Construction

Product Function

· It reinforce old asphalt concrete road surface and asphalt layer, and prevents damage;

· It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction.

· It is used in road expansion and improvment project and crack caused by old and new combination position and uneven sedimentation;

· Coated Fiberglass Geogrid is used in soft soil base reinforcement treatment ,is favorable for soft soil water separation and concretion,restrains sedimentation effectivly,distributes stress uniformly and improve overall strength of road base;

· High Strength Fiberglass Geogrid is sued for preventing contraction crack caused by new road semi-rigid base layer,and reinforces and prevents road surface crack caused by foundation crack reflection.

Bitumen Coated Asphalt Pavement Fiberglass Geogrids For Road Highway Pavement Construction

Fiberglass Geogrid Specification

Fiberglass geogrid technological standard(GB/T 21825-2008)

specification

FG30×30

FG50×50

FG
60×60

FG
80×80

FG
100×100

FG
120×120

FG
150×150

Mesh center distance(mm)

MD

25.4±3.8 , 12.7±3.8

CMD

25.4±3.8 , 12.7±3.8

breaking strength(kn/m)

MD

30

50

60

80

100

120

150

CMD

30

50

60

80

100

120

150

Breaking Elongation(%)

MD

4

4

4

4

4

4

4

CMD

4

4

4

4

4

4

4

Width(m)

1m-6m

1m-6m

1m-6m

1m-6m

1m-6m

1m-6m

1m-6m

Available type for Fiberglass Geogrid covered with bitumen:

50-50 FiberGlass Geogrid Mesh

80-80 GlassFiber Geogrid

100-100 Glassgrid

120-120 FG Geogrid

Geogrid Mesh Size available:12.7*12.7mm / 25.4mm*25.4mm/50.8*50.8mm

Width:1-6M

Length: 50M Or 100M Or Customize
