80-80KN/M GlassFiber Asphalt Biaxial Reinforce Fiberglass Geogrid Parking Lots Strength Road Bearing

Product characteristics and strength performance
Tensile strength: The biaxial design of 80-80KN/M means that both the longitude and latitude have high tensile strength, which can evenly disperse the concentrated load of the parking lot and reduce local deformation
Asphalt coating: The surface is coated with an asphalt reinforcement layer to improve the adhesion with the asphalt mixture, prevent interlayer slippage, and extend the service life
Corrosion resistance: The glass fiber material is acid and alkali resistant and aging resistant, suitable for the humid environment and chemical exposure of the parking lot

Parking lot application advantages
Rutting and crack resistance: By enhancing the bearing capacity of the base layer, the rutting and reflective cracks of the asphalt layer caused by repeated rolling of heavy-loaded vehicles are reduced.
Thin layer construction: The thickness of the asphalt covering layer of the parking lot can be reduced to 50mm, saving material costs
Quick construction: The self-adhesive design simplifies the laying process and supports fast construction of large-area parking lots

Technical parameters and standards
Grid size: Commonly 25.4×25.4mm or customized specifications to meet the needs of different parking lot bases

Asphalt Fiberglass Geogrid Function:

high temperature resistance (mostly used in the construction of asphalt pavement), function

1. Effective reinforcement and anti-cracking, effectively prolonging the life of the road

(asphalt pavement, cement concrete pavement subgrade reinforcement)

2. It has high tensile strength and low elongation in both directions of warp and weft, and has excellent properties

such as high temperature resistance, low cold resistance, aging resistance, and corrosion resistance.

3. Slow down cracking

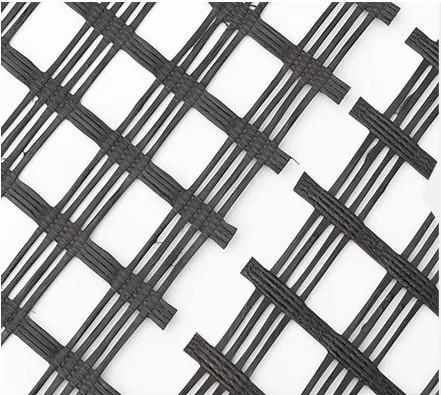

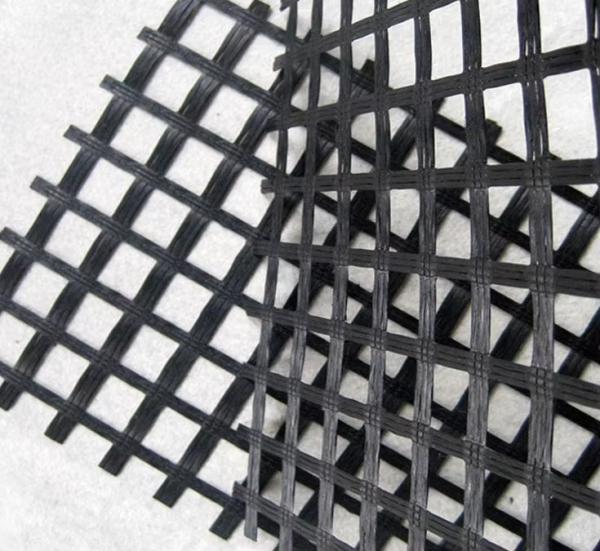

Asphalt Fiberglass Geogrid :

100-100K Fiberglass Geogrid Before Coated 50-50 Glassfiber After Coated Bitumen

Mesh Size 25.4x25.4mm Mesh Size 12.8x 12.8 mm

Applications of Fiberglass Geogrid

1. Road & Highway Reinforcement

• Reduces asphalt cracking and rutting.

• Extends pavement lifespan.

2. Retaining Walls & Slopes

• Provides structural stability for reinforced soil structures.

3. Airport Runways & Parking Lots

• Enhances load-bearing capacity for heavy traffic areas.

4. Landfill & Erosion Control

• Strengthens soil layers and prevents erosion.

Asphalt Fiberglass Geogrid Professional Installation Guide :
Surface Preparation:
Mill existing pavement as needed
Apply polymer-modified tack coat (0.6-0.8 kg/m²)

Geogrid Placement:
Unroll with machine direction perpendicular to traffic flow
Minimum 300mm side overlaps, 500mm end overlaps

Asphalt Placement:

Minimum 75mm overlay thickness recommended
Maintain ≥150°C mix temperature during placement
