High Strength 120-120 Fiberglass Geogrid Reinforcement Solution Slope Retaining Walls Prevents Erosion Strengthens Soil

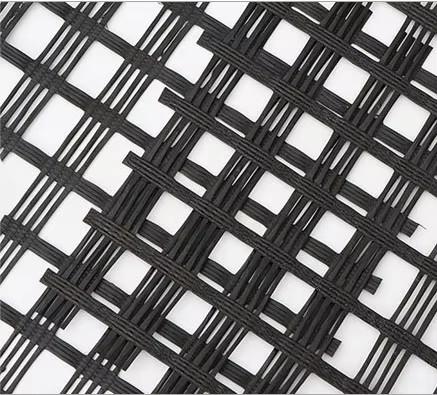

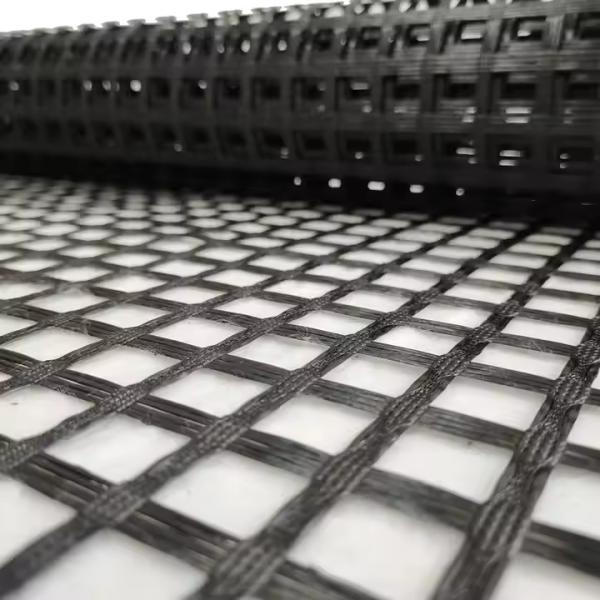

Fiberglass Geogrid Reinforcement Solution Product Overview:

Our Fiberglass Geogrid 120-120 KN/M is a high-performance geosynthetic material designed for soil stabilization, road reinforcement, and slope protection. With exceptional tensile strength and durability, it provides long-term structural support in civil engineering and construction projects.

Fiberglass Geogrid Reinforcement Solution Key Features:
✔ High Tensile Strength: 120 kN/m in both longitudinal and transverse directions
✔ Excellent Durability: Resistant to corrosion, chemicals, and UV radiation
✔ Lightweight & Flexible: Easy to handle and install
✔ Enhanced Load Distribution: Reduces cracking and extends pavement life
✔ Cost-Effective: Lowers maintenance and construction costs

Asphalt Fiberglass Geogrid Function:

high temperature resistance (mostly used in the construction of asphalt pavement), function

1. Effective reinforcement and anti-cracking, effectively prolonging the life of the road

(asphalt pavement, cement concrete pavement subgrade reinforcement)

2. It has high tensile strength and low elongation in both directions of warp and weft, and has excellent properties

such as high temperature resistance, low cold resistance, aging resistance, and corrosion resistance.

3. Slow down cracking

Asphalt Fiberglass Geogrid :

Applications of Fiberglass Geogrid

✅ Road & Highway Construction – Prevents reflective cracking and improves load-bearing capacity
✅ Railway Embankments – Enhances stability and reduces settlement
✅ Slope & Retaining Walls – Prevents erosion and strengthens soil structures
✅ Airport Runways & Parking Lots – Reinforces base layers for heavy-duty use
✅ Landfill & Mining Sites – Provides long-term ground stabilization

Asphalt Fiberglass Geogrid Professional Installation Guide :
Surface Preparation:
Mill existing pavement as needed
Apply polymer-modified tack coat (0.6-0.8 kg/m²)

Geogrid Placement:
Unroll with machine direction perpendicular to traffic flow
Minimum 300mm side overlaps, 500mm end overlaps

Asphalt Placement:

Minimum 75mm overlay thickness recommended
Maintain ≥150°C mix temperature during placement
