Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification
Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification
Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification
Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification
Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification
Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification
Specifications
Brand Name :
SZ
Model Number :
FG
Certification :
ISO,CE
Place of Origin :
China
MOQ :
10,000 Square Meter
Price :
$0.3-$2.0/SQM
Payment Terms :
L/C,T/T
Supply Ability :
100,000 Square Meters per Week
Delivery Time :
5-8 Working day
Packaging Details :
By roll, paper pipe + black PE shrinkage membrane + woven bag ( waterproof & UV resistance)
Product Name :
Fiberglass Reinforcement Geogrid
Application :
Asphalt Paving Reinforcement
Function :
Reinforcing Glass Grid
Material :
Fiberglass Yarn
Coating :
Bitumen & asphalt geogrid
Tensile Strength :
30kN/m-300kN/m
Elongation Rate :
<=4%
Roll Measure :
1-6m width , 50-200m length
Mesh size :
25.4*25.4mm 12.7*12.7 50.8*50.8
Standard :
ASTM ISO
Description

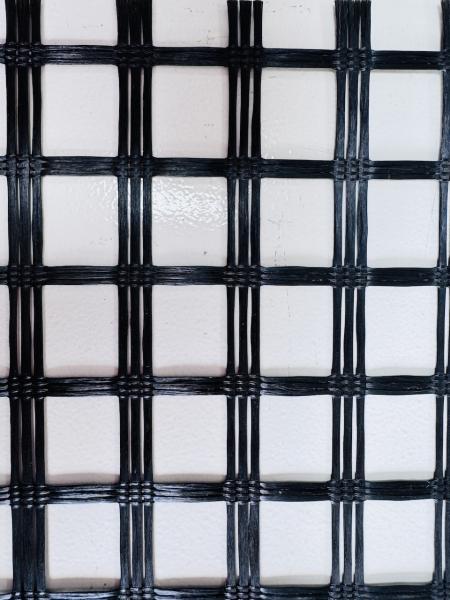

Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification

Low elongation warp knitting fiberglass geogrid,it is the pavement reinforcement geogrid which composed of a series of fiberglass strands coated with an elastomeric polymer and formed into a grid structure. It’s the biaxial fiberglass geogrid with high adhesion strength reinforced overlays.Each strand has a remarkably high tensile strength, as well as a high modulus of elasticity at low elongation,making it stronger than steel by weight. The open grid structure promotes the efficient transfer of stress from both overlying and underlying asphalt layers.

Type
Item No.
Tensile Strength
(kN/m)
Elongation(%)
Mesh Size
(mm×mm)
Width
(m)
Warp
Weft
Warp
Weft

Fiberglass Geogrid
EG5050
≥50
≥50
≤4
≤4
12~50
1~6
EG100100
≥100
≥100
≤4
≤4
12~50
1~6
EG200200
≥200
≥200
≤4
≤4
12~50
1~6


Self-adhesive Geogrid
EGA5050
≥50
≥50
≤4
≤4
12~50
1~6
EGA100100
≥100
≥100
≤4
≤4
12~50
1~6
EGA100200
≥100
≥200
≤4
≤4
12~50
1~6
EGA200200
≥200
≥200
≤4
≤4
12~50
1~6

Low Elongation Warp Knitting Fiberglass Geogrid With CE CertificationLow Elongation Warp Knitting Fiberglass Geogrid With CE Certification

Low Elongation Warp Knitting Fiberglass Geogrid With CE Certification

Fiberglass Geogrid Feature and Use

* High tensile strength: reducing reflective cracking.
* Low elongation, its break elongation is less than 4%.
* Creep resistance.
* Consistency.
* Temperature Stability.
* Nesting, Interlock and Restraint Effects.

* Reinforces asphalt concrete overlays in pavement construction.
* Utilized in the road widening
* Utilized in repaving of the airport upgrade.
* Reinforce roadbeds, railway, bridges, hydraulic, slope.
