100-100KN/M Bitumen Coated Fiberglass Geogrid Asphalt Pavement Reinforcement Geogrid
100-100KN/M Bitumen Coated Fiberglass Geogrid Asphalt Pavement Reinforcement Geogrid
100-100KN/M Bitumen Coated Fiberglass Geogrid Asphalt Pavement Reinforcement Geogrid
100-100KN/M Bitumen Coated Fiberglass Geogrid Asphalt Pavement Reinforcement Geogrid
100-100KN/M Bitumen Coated Fiberglass Geogrid Asphalt Pavement Reinforcement Geogrid
100-100KN/M Bitumen Coated Fiberglass Geogrid Asphalt Pavement Reinforcement Geogrid
Specifications
Brand Name :
SZ
Model Number :
FG
Certification :
ISO,CE
Place of Origin :
China
MOQ :
10,000 Square Meter
Price :
$0.3-$2.0/SQM
Payment Terms :
L/C,T/T
Supply Ability :
100,000 Square Meters per Week
Delivery Time :
5-8 Working day
Packaging Details :
By roll, paper pipe + black PE shrinkage membrane + woven bag ( waterproof & UV resistance)
Product Name :
Bitumen Coated Fiberglass Geogrid
Material :
Fiberglass Yarn
Coating :
Bitumen & asphalt geogrid
Tensile Strength :
50kN/m-300kN/m
Elongation Rate :
<=4%
Width :
1-6m
Length :
50m-100m
Mesh size :
25.4*25.4mm 12.5*12.5 50.8*50.8
Technology :
fiberglass filaments
Coated :
high quality modified asphalt
Description

100-100KN/M Bitumen Coated Fiberglass Geogrid Asphalt Pavement Reinforcement Geogrid

Description

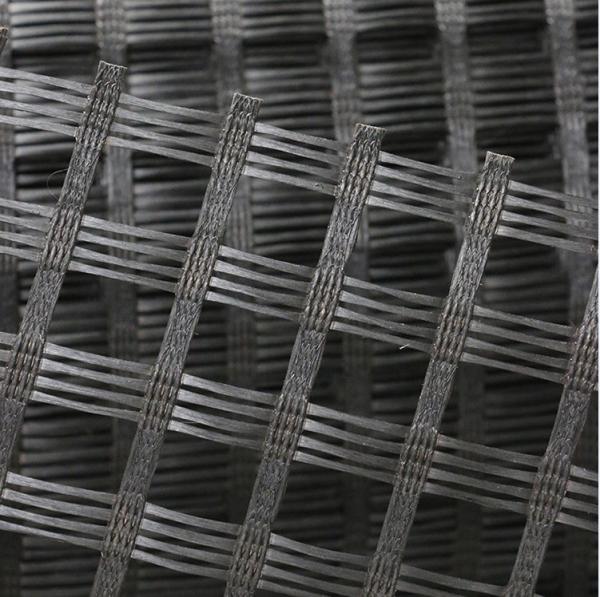

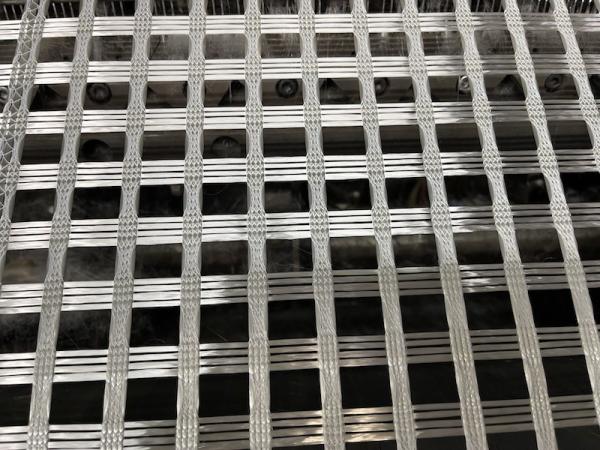

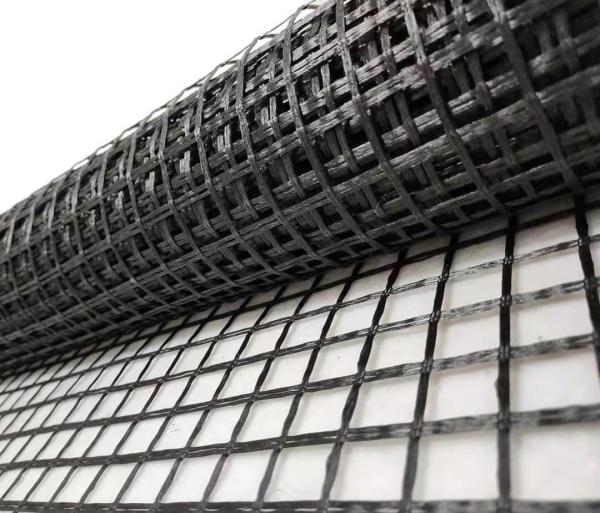

Fiberglass Geogrid is a high-performance geosynthetic material made from fiberglass (AR-glass) yarns coated with a protective polymer (usually modified asphalt or PVC). It is designed for soil stabilization, asphalt reinforcement, and structural strengthening in roads, pavements, retaining walls, and slopes

Yixing shenzhou fiberglass geogrid is produced by our import German "Liba" warp knitting machine.

Why Choose Yixing Shenzhou Fiberglass Geogrid?


Fiberglass geogrids are lightweight, corrosion-resistant, and high-tensile geosynthetic materials designed for soil stabilization, asphalt reinforcement, and erosion control.

Superior Strength – High tensile modulus for long-term load distribution.
Alkali-Resistant Coating – Withstands harsh soil and environmental conditions.
Lightweight & Easy to Install – Reduces labor and transportation costs.
Prevents Reflective Cracking – Ideal for road pavements and overlays.
Non-Corrosive – Unlike steel, it won’t rust or degrade over time.

Applications of Fiberglass Geogrid

1. Road & Highway Reinforcement

  • Reduces asphalt cracking and rutting.

  • Extends pavement lifespan.

2. Retaining Walls & Slopes

  • Provides structural stability for reinforced soil structures.

3. Airport Runways & Parking Lots

  • Enhances load-bearing capacity for heavy traffic areas.

4. Landfill & Erosion Control

  • Strengthens soil layers and prevents erosion.

100-100KN/M Bitumen Coated Fiberglass Geogrid Asphalt Pavement Reinforcement Geogrid 100-100KN/M Bitumen Coated Fiberglass Geogrid Asphalt Pavement Reinforcement Geogrid

Fiberglass Geogrid Specification

Fiberglass geogrid technological standard(GB/T 21825-2008)

specification

FG30×30

FG50×50

FG
60×60

FG
80×80

FG
100×100

FG
120×120

FG
150×150

Mesh center distance(mm)

MD

25.4±3.8 , 12.7±3.8

CMD

25.4±3.8 , 12.7±3.8

breaking strength(kn/m)

MD

30

50

60

80

100

120

150

CMD

30

50

60

80

100

120

150

Breaking Elongation(%)

MD

4

4

4

4

4

4

4

CMD

4

4

4

4

4

4

4

Width(m)

1m-6m

1m-6m

1m-6m

1m-6m

1m-6m

1m-6m

1m-6m

Customization options

Customized packaging (Min. order: 50000 square meters)
Graphic customization (Min. order: 50000 square meters)
Customized logo (Min. order: 50000 square meters)
