50-50KN/M Fiberglass Geogrid For Airport Runway Asphalt Placement Biaxial Reinforced
50-50KN/M Fiberglass Geogrid For Airport Runway Asphalt Placement Biaxial Reinforced
50-50KN/M Fiberglass Geogrid For Airport Runway Asphalt Placement Biaxial Reinforced
50-50KN/M Fiberglass Geogrid For Airport Runway Asphalt Placement Biaxial Reinforced
Specifications
Brand Name :
SZ
Model Number :
FG
Certification :
ISO,CE
Place of Origin :
China
MOQ :
10,000 Square Meter
Price :
$0.3-$2.0/SQM
Payment Terms :
L/C,T/T
Supply Ability :
100,000 Square Meters per Week
Delivery Time :
5-8 Working day
Packaging Details :
By roll, paper pipe + black PE shrinkage membrane + woven bag ( waterproof & UV resistance)
Product Name :
50-50KN/M Fiberglass Geogrid
Application :
Airport Runway
Function :
Asphalt Placement Biaxial Reinforced
Material :
Fiberglass Yarn
Coating :
Bitumen & asphalt geogrid
Tensile Strength :
50kN/m-300kN/m
Elongation Rate :
<=4%
Width :
1-6m
Length :
50m-100m
Mesh size :
25.4*25.4mm 12.5*12.5 50.8*50.8
Description

Coated Bitumen 50-50KN/M Fiberglass Geogrid Airport Runway Asphalt Placement Biaxial Reinforced

Product Overview :

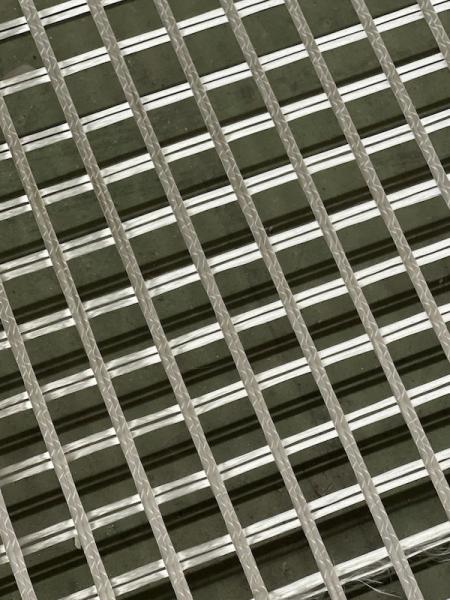

Our 50-50 kN/m fiberglass geogrid is engineered from high-modulus E-glass fibers with

a specialized polymer coating, creating the ideal reinforcement solution for asphalt pavements.

The balanced biaxial structure provides equal strength in all directions while allowing complete asphalt penetration.

Yixing Shenzhou 50-50KN/M Fiberglass Geogrid Key Technical Advantages:

✔ Balanced Biaxial Strength (50×50 kN/m)
✔ Ultra-Low 3% Elongation Under Load
✔ Temperature Resistant (-50°C to +250°C)
✔ Reflective Crack Reduction Up to 70%
✔ Easy to Install – Immediate Asphalt Overlay Possible

50-50KN/M Fiberglass Geogrid For Airport Runway Asphalt Placement Biaxial Reinforced

Fiberglass Geogrid Specification

Fiberglass geogrid technological standard(GB/T 21825-2008)

specification

FG30×30

FG50×50

FG
60×60

FG
80×80

FG
100×100

FG
120×120

FG
150×150

Mesh center distance(mm)

MD

25.4±3.8 , 12.7±3.8

CMD

25.4±3.8 , 12.7±3.8

breaking strength(kn/m)

MD

30

50

60

80

100

120

150

CMD

30

50

60

80

100

120

150

Breaking Elongation(%)

MD

4

4

4

4

4

4

4

CMD

4

4

4

4

4

4

4

Width(m)

1m-6m

1m-6m

1m-6m

1m-6m

1m-6m

1m-6m

1m-6m

50-50KN/M Fiberglass Geogrid For Airport Runway Asphalt Placement Biaxial Reinforced 50-50KN/M Fiberglass Geogrid For Airport Runway Asphalt Placement Biaxial Reinforced

Fiberglass Geogrid Function:

high temperature resistance (mostly used in the construction of asphalt pavement), function

1. Effective reinforcement and anti-cracking, effectively prolonging the life of the road

(asphalt pavement, cement concrete pavement subgrade reinforcement)

2. It has high tensile strength and low elongation in both directions of warp and weft, and has excellent properties

such as high temperature resistance, low cold resistance, aging resistance, and corrosion resistance.

3. Slow down cracking

Applications of Fiberglass Geogrid

1. Road & Highway Reinforcement

  • Reduces asphalt cracking and rutting.

  • Extends pavement lifespan.

2. Retaining Walls & Slopes

  • Provides structural stability for reinforced soil structures.

3. Airport Runways & Parking Lots

  • Enhances load-bearing capacity for heavy traffic areas.

4. Landfill & Erosion Control

  • Strengthens soil layers and prevents erosion.
