Geo Textile Geofabric UV Resistance Needle Punched Polypropylene Nonwoven Geotextile Fabric

About PP Nonwoven Short Fiber Geotextile

1. Material definition and characteristics

Basic composition

Made of short polypropylene (PP) fibers reinforced by needle punching process, it has a three-dimensional porous structure, and is both flexible and high-strength.

2. Key characteristics

• Physical properties: low specific gravity (0.191g/cm³), only 66% of PET; high tensile strength (longitudinal ≥4.5CN/dt), elongation ≥300%.
• Durability: anti-corrosion, anti-aging, acid and alkali resistant, and can be exposed to ultraviolet light for a long time (some products are treated with TiO₂ impregnation to enhance anti-ultraviolet performance).
• Functional characteristics: good water permeability, which can realize the free flow of water/air, while isolating soil particles and preventing the loss of structural layers.

Main application areas

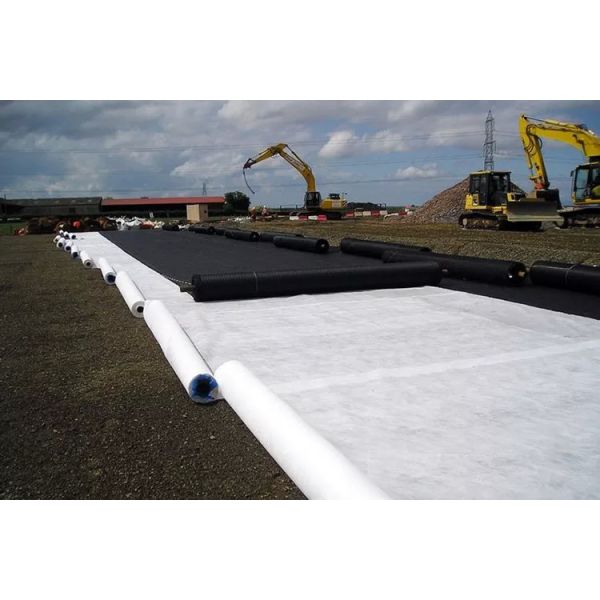

1. Civil engineering

• Roads and railways: Strengthen roadbed, prevent cracks, and improve soil stability.
• Drainage system: Used for water seepage prevention around concealed pipes and tunnel seepage removal.
• Dams and slopes: Isolate different rock and soil materials and enhance the structural deformation resistance.

2. Environmental protection and municipal administration

• Domestic waste landfill anti-seepage, sewage treatment plant filtration.
• Used for reservoir dam reinforcement in water conservancy projects.

3. Agriculture and landscape

• Land cover, weed control, gardening drainage.

Product specifications and standards

1. Common parameters

• Weight range: 100g/m²~800g/m², width 1m~6m, roll length 50m~1000m.
• Thickness: 0.3mm~20mm, customized according to project requirements.

2. Industry standards

• Chinese standard: JT/T992.1-2015 (highway engineering geotextile standard).
• International certification: ISO9001, ISO14001, etc.

Yixing Shenzhou Partial Typical engineering cases for PP Nonwoven Geotextile used in Railway project

1. Suiyu Railway Test Section

Our country used geosynthetics in ballastless track for the first time, verifying the feasibility of polypropylene geotextile in the sliding layer.

2. Beijing-Shanghai High-speed Railway and Wuhan-Guangzhou High-speed Railway

CRTSⅠ/Ⅱ type slab track is widely used, and polypropylene geotextile is used as the key material of the isolation layer and sliding layer.

3. Zhengzhou-Xuzhou Passenger Dedicated Line

CRTSⅢ type track slab was used on a large scale for the first time, with 700g/㎡ high-strength polypropylene geotextile, marking the maturity of domestic production technology.
