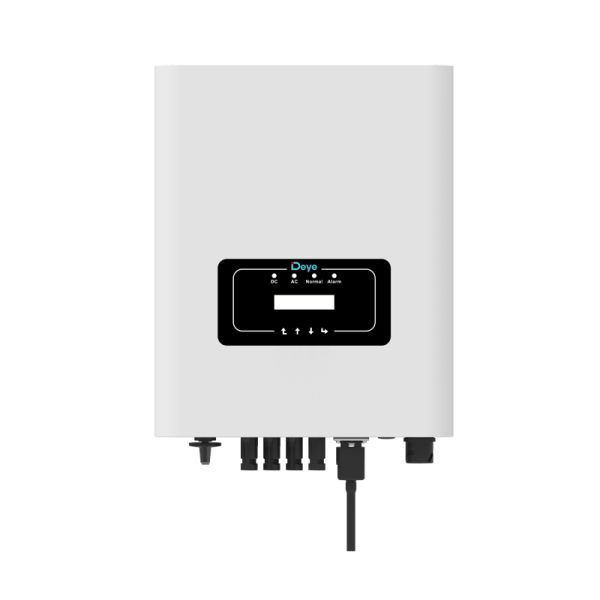

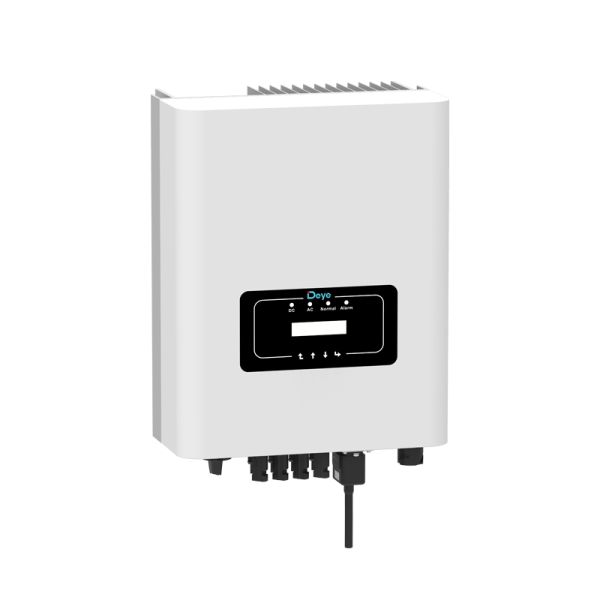

Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Specifications
Place of Origin :
Anhui, China
Model Number :
SUN-10K-G
Brand Name :
Deye
Input Voltage :
550V
Output Voltage :
220v
Output Current :
35/33.5
Output Frequency :
50Hz/60Hz
Output Type :
Single
Size :
330*410*198.5mm
Type :
DC/AC Inverters
Inverter Efficiency :
97.7%
Weight :
15.3KG
Application :
Solar System
Inverter type :
Single Phase On Grid Solar Inverter
Degree of protection :
IP65
Cooling :
Free Cooling
Interface :
RS485/RS232/Wifi/LAN
No.of MPP Trackers :
2
No.of Strings per MPP Tracker :
1+2
Certificate :
CE /IEC/TUV/NRS
Warranty :
5 Years
MOQ :
1 piece
Price :
$640-688 / piece
Description
Products Description



Single Phase

String Inverter



SUN-7/7.5/8/9/10K-G


Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter












Key Features


1. 2 MPP trackers, Max. efficiency up to 97.7%
2. Zero export application, VSG application
3. String intelligent monitoring (optional)
4. Wide output voltage range
5. Anti-PID function (Optional)
6. Low start-up voltage of 80V


Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Product Paramenters
Model
SUN-10K-G
Input Side

Max.DCInput Power(kW)
13
Max.DC Input Voltage (V)
550
Start-up DC Input Voltage(V)
80
MPPT Operating Range(V)
70-500
Max.DC Input Current(A)
26+26
Max. Short Circuit Current(A)
39+39
No.of MPP Trackers
2
No.of Strings per MPPT Tracker
2+2
Output Side

Rated Output Power(kW)
10
Max.Active Power(kW)
11
Nominal Output Voltage/Range(V)
L/N/PE 220/230V (Optional)
Rated Grid Frequency(Hz)
50 / 60 (Optional)
Operating Phase
Single Phase
Rated AC Grid Output Current(A)
45.5/43.5
Max.AC Output Current(A)
50/47.8
Output Power Factor
0.8 leading to 0.8 lagging
Grid Current THD
<3%
DC Injection Current(mA)
<0.5%
Grid Frequency Range
45~55 or 55~65 (Optional)
Efficiency

Max.Efficiency
97.7%
Euro Efficiency
97.5%
MPPT Efficiency
>99%
Protection

DC Reverse-Polarity Protection
Yes
ACShort Circuit Protection
Yes
ACOutput Overcurrent Protection
Yes
Output Overvoltage Protection
Yes
Insulation Resistance Protection
Yes
Ground Fault Monitoring
Yes
Anti-islanding Protection
Yes
Temperature Protection
Yes
Integrated DCSwitch
Yes
Remote Software Upload
Yes
Remote Change of Operating Parameters
Yes
Surge Protection
DC Type II / AC Type II
General Data

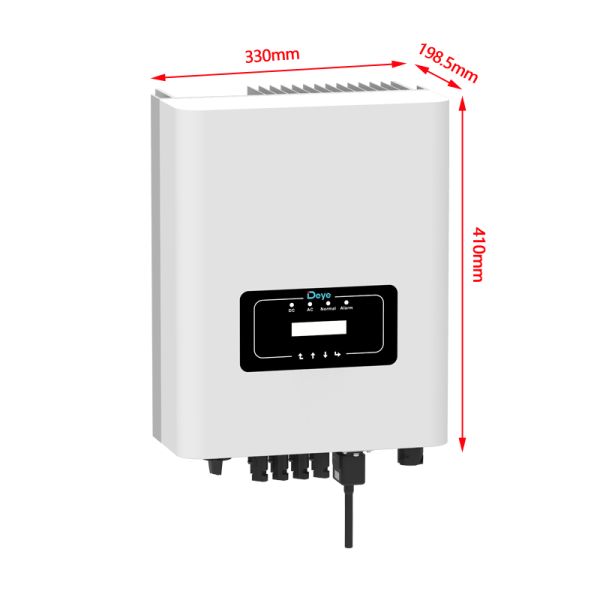

Cabinet Size(WxHxDmm)
330×410×198.5 (Excluding Connectors and Brackets)
Weight(kg)
15.3
Topology
Transformerless
Intermal Consumption
<1W (Night)
Running Temperature
-25-65℃, >45℃ Derating
Ingress Protection
IP65
Noise Emission (Typical)
≤35 dB
Cooling Concept
Free Cooling
Permissible Altitude(m)
2000
Warranty
5 Years
Grid Connection Standard
IEC 62116, AS 4777.2
Operating Surroundings Humidity 0-100%
0-100%
Safety EMC/Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Features

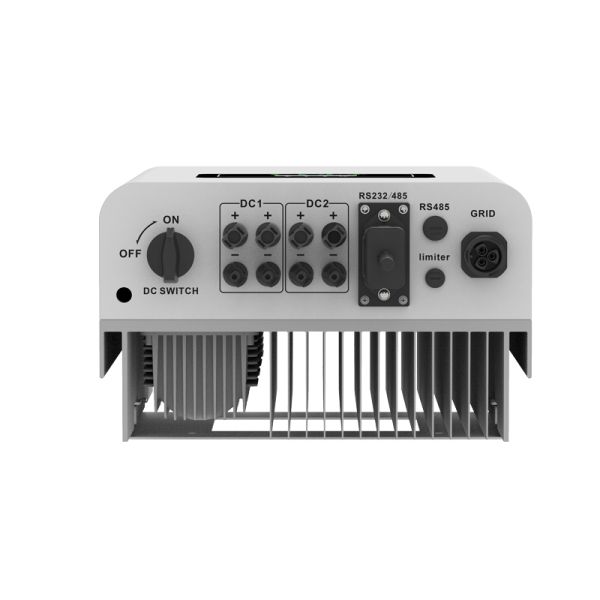

DC Connection
MC-4 Mateable
AC Connection
IP65 Rated Plug
Display
LCD1602
Interface
RS485/RS232/Wifi/LAN

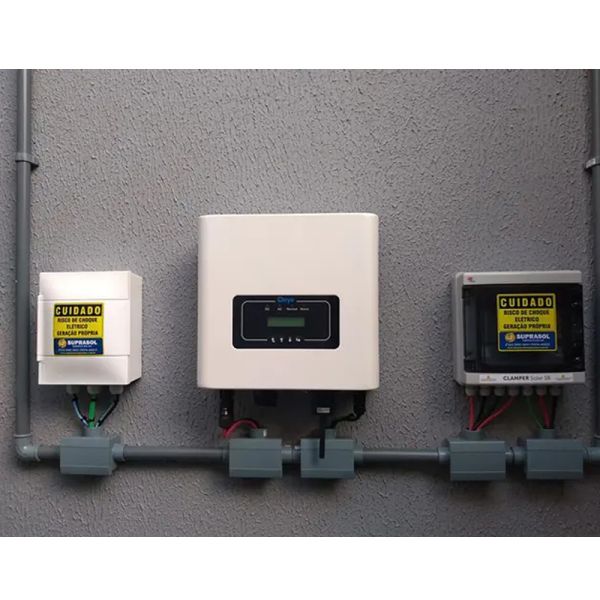

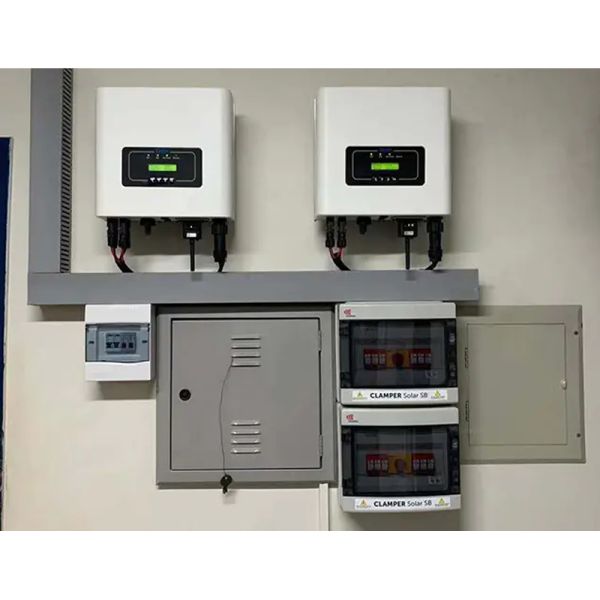

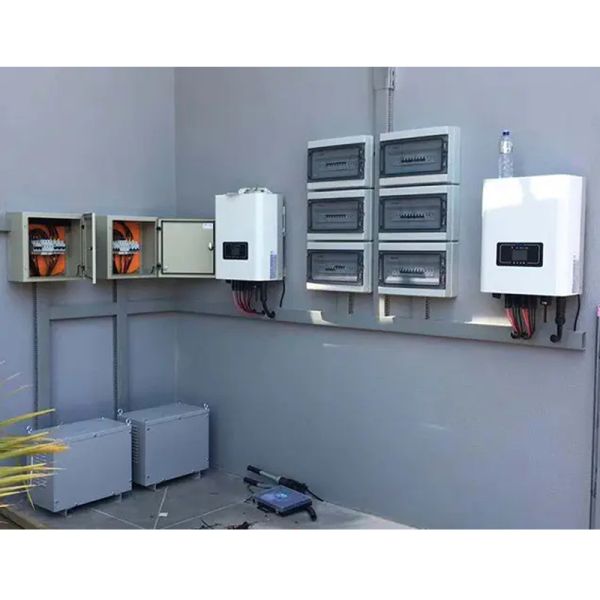

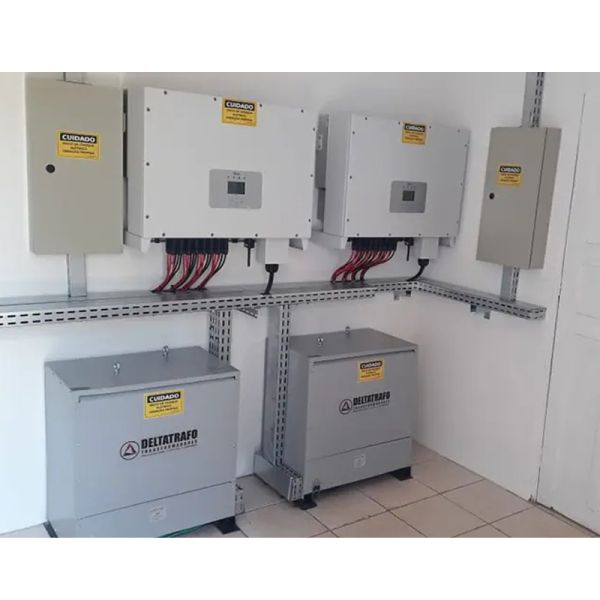

Project Case
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Product packaging
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Certificate
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Recommend Products
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
Deye 10kw Solar on Grid Inverter Single Phase 10KW Solar Inverter
FAQ

1. Who are we?

We are based in Hefei, Anhui, China, established in 2018. We are proffesional Solar system and Products provider. For the past
years, we have rich experience and lots of successful projects all around the world. We have whole supply chain on PV products and
we have our own factory so we can provide OEM service for customer.

2. How can we guarantee quality?

We have proffesional technical team who can help customer to do the product test and technical trainning.Also, before mass order,
we can have a sample order first.

3. What you can get from us?

Solar panels including the top brands and our own brand.Solar inverters including On-grid/Off-grid inverters and Hybrid inverters.
Solar energy storage system including the batteries, the BMS platform and the integrated system.

4. Why choose us?

We have more than 10 years experience in PV industry. Also we sell the solar products all around the world since 2018.A
proffesional team makes us having lots of successful projects during the past several years.

Proffesinal technical team can maintain our service on technical support and after-sale service.
Whole supply chain can maintain the requirments from customers.

5. Some features

Deliver Terms: EXW, FOB, CIF and etc.Payment Terms: T/T, L/C, MoneyGram, Paypal, WesternUnion and Cash.
Export Ports: Ningbo, Shanghai, Shenzhen and Hongkong
