Specifications
Place of Origin :
Guangdong, China
Model Number :
SUN-100K-G03
Brand Name :
Deye
Input Voltage :
1000V
Output Voltage :
220v/380v
Output Current :
151.5/144.9A
Output Frequency :
50Hz/60Hz
Output Type :
Triple
Size :
826*516*312.7mm
Type :
DC/AC Inverters
Inverter Efficiency :
98.8%
Weight :
81KG
Output Power :
100KW
Application :
Commercial and Industrial Solar System
Inverter type :
Three Phase On Grid Solar Inverter
Degree of protection :
IP65
Cooling :
Smart cooling
Interface :
RS485/RS232/Wifi/LAN
No.of MPP Trackers :
4
No.of Strings per MPP Tracker :
4+4+4+4
Certificate :
CE /IEC/TUV/NRS
Warranty :
5 Years
MOQ :
1 piece
Price :
$2,348-2,398 / piece
Description
Product Description

Deye Inverter Power Solar Three 3 Phase Grid Tie 100KW on Grid Solar Inverter for Commercial and Industrial Use
Deye Inverter Power Solar Three 3 Phase Grid Tie 100KW on Grid Solar Inverter for Commercial and Industrial Use
Deye Inverter Power Solar Three 3 Phase Grid Tie 100KW on Grid Solar Inverter for Commercial and Industrial Use
Deye Inverter Power Solar Three 3 Phase Grid Tie 100KW on Grid Solar Inverter for Commercial and Industrial Use
Deye Inverter Power Solar Three 3 Phase Grid Tie 100KW on Grid Solar Inverter for Commercial and Industrial Use

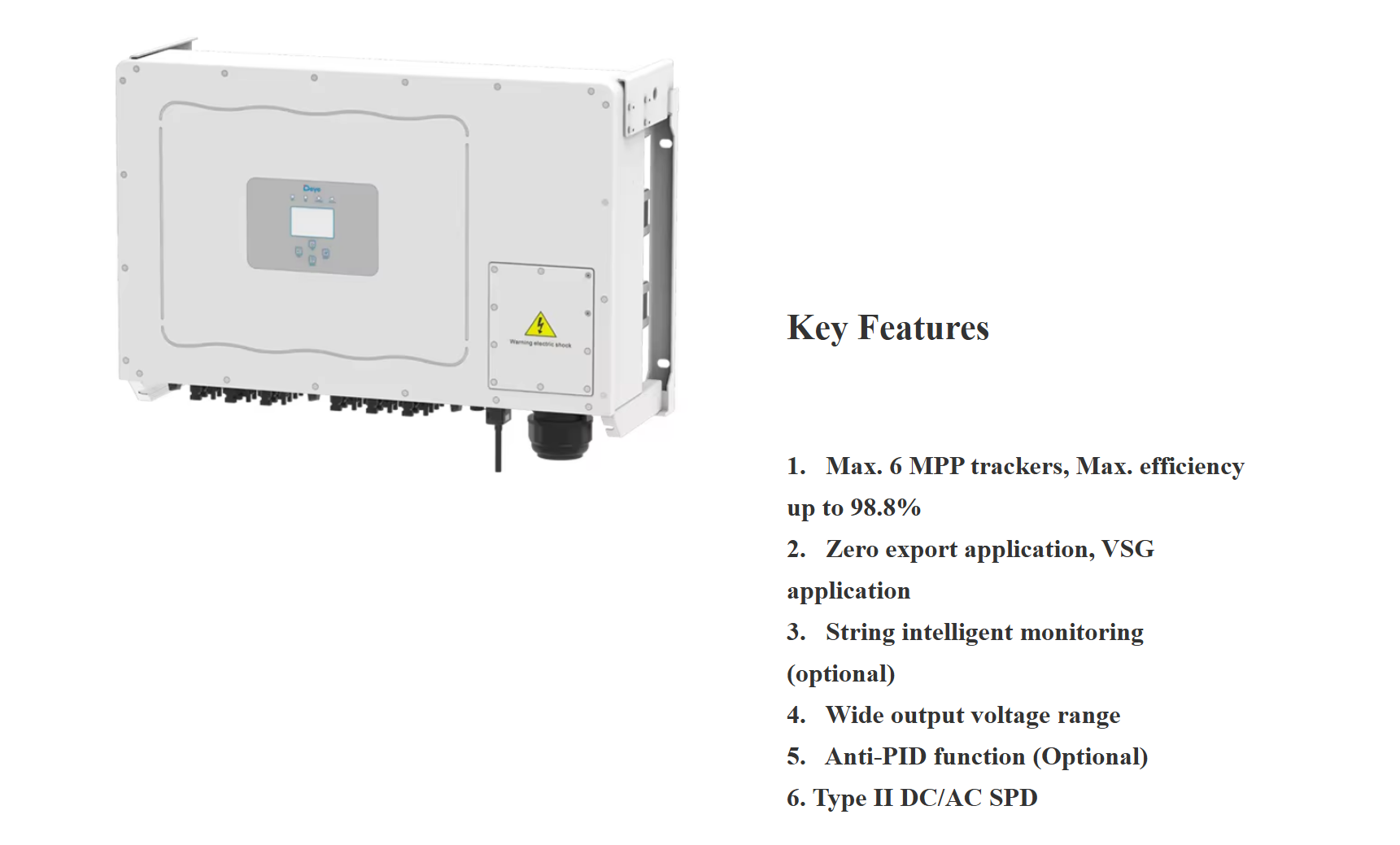

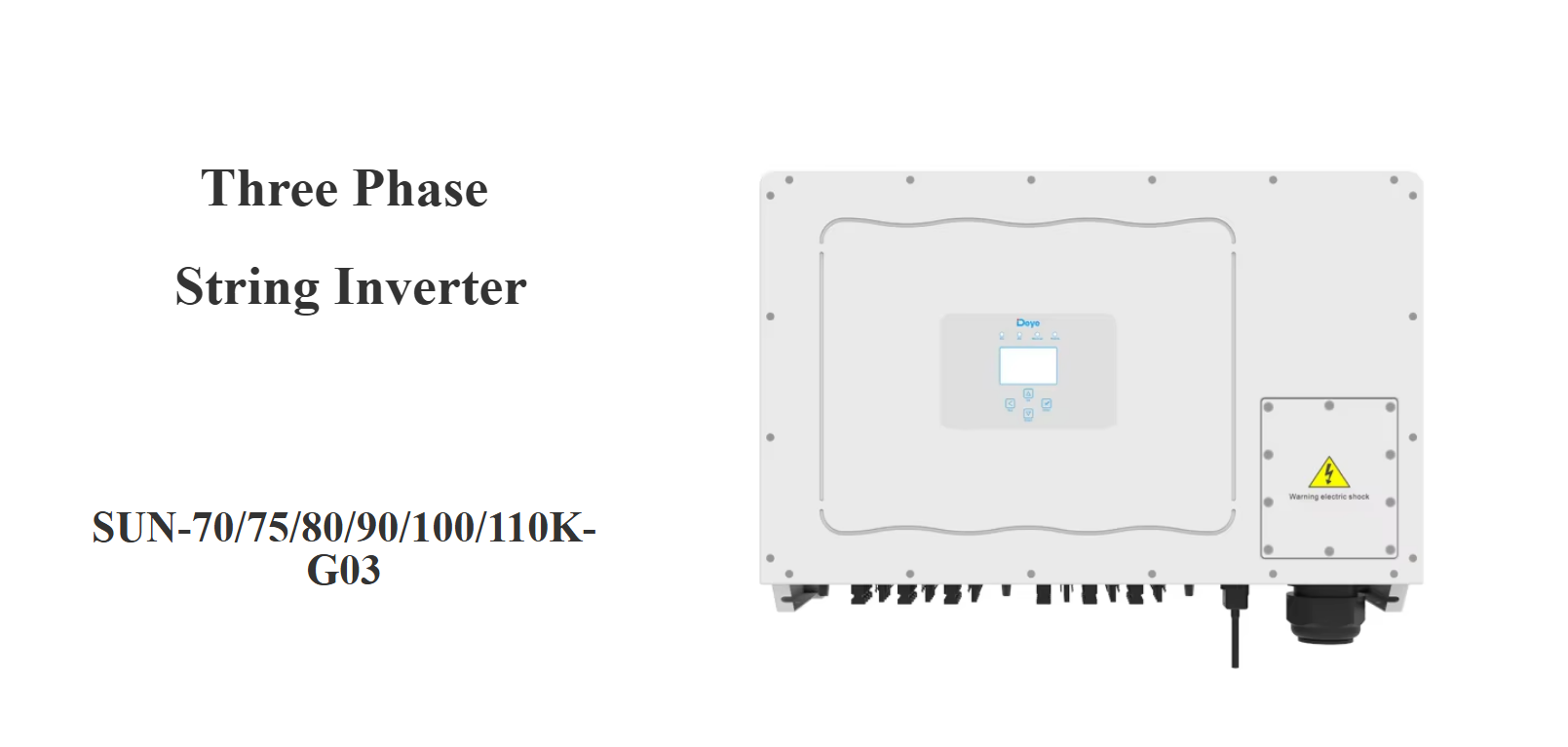

SUN-70/75/80/90/100/110K-G03
* Max. 6 MPP trackers, Max. efficiency up to 98.8%
* Zero export application, VSG application
* String intelligent monitoring (optional)
* Wide output voltage range
* Type II DC/AC SPD
* Anti-PID function (Optional)
Product Parameter

Model SUN-70K-G03 SUN-75K-G03 SUN-80K-G03 SUN-90K-G03 SUN-100K-G03 SUN-110K-G03
PV String Input Data
Max. PV Input Power(kW) 91 97.5 104 135 150 150
Max. PV Input Voltage(V) 1000
Start-up Voltage(V) 250
MPPT voltage range(V) 200-800
Rated PV Input voltage(V) 600
Max. Operating PV Input Current(A) 40+40+40+40 40+40+40+40+40+40
Max. Input Short Circuit Current (A) 60+60+60+60 60+60+60+60+60+60
NO. of MPP Trackers/No. of Strings per MPP Tracker 4/4+4+4+4 6/4+4+4+4+4+4
AC Output Side
Rated AC Output Active Power(KW) 70 75 80 90 100 110
Max. AC Output Apparent Power(KVA) 77 82.5 88 99 110 121
Rated AC output current (A) 106.1/101.5 113.6/108.7 121.2/115.9 136.4/130.4 151.5/144.9 166.7/159.4
Max. AC Output Current(A) 116.7/111.6 125/119.6 133.3/127.5 150//143.5 166.7/159.4 183.3/175.4
Rated output voltage/range (V) 220/380V, 230/400V 0.85Un-1.1Un
Grid Connection Form 3L+N+PE
Rated Output Grid Frequency/range(Hz) 50/45-55, 60/55-65
Power Factor Adjustment Range 0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi <3%
DC Injection Current <0.5%ln
Efficiency
Max. Efficiency 98.7% 98.8%
Euro Efficiency 98.1% 98.2%
MPPT Efficiency >99%
Equipment Protection Yes
DC Polarity Reverse Connection Protection Yes
AC Output Overcurrent Protection Yes
AC Output Overvoltage Protection Yes
AC Output Short Circuit Protection Yes
Thermal Protection Yes
DC Terminal Insulation Impedance Monitoring Yes
DC Component Monitoring Yes
Ground Fault Current Monitoring Yes
Power Network Monitoring Yes
Arc Fault Circuit Interrupter (AFCI) Optional
Island Protection Monitoring Yes
Earth Fault Detection Yes
Overvoltage Load Drop Protection Yes
Residual Current (RCD) Detection Yes
Surge Protection Level TYPE II(DC),TYPE II(AC)
Interface
Communication Interface RS485/RS232
Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (°C) -25 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude (m) 4000m
Noise (dB) ≤ 55
Ingress Protection(IP) Rating IP65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC),OVC III(AC)

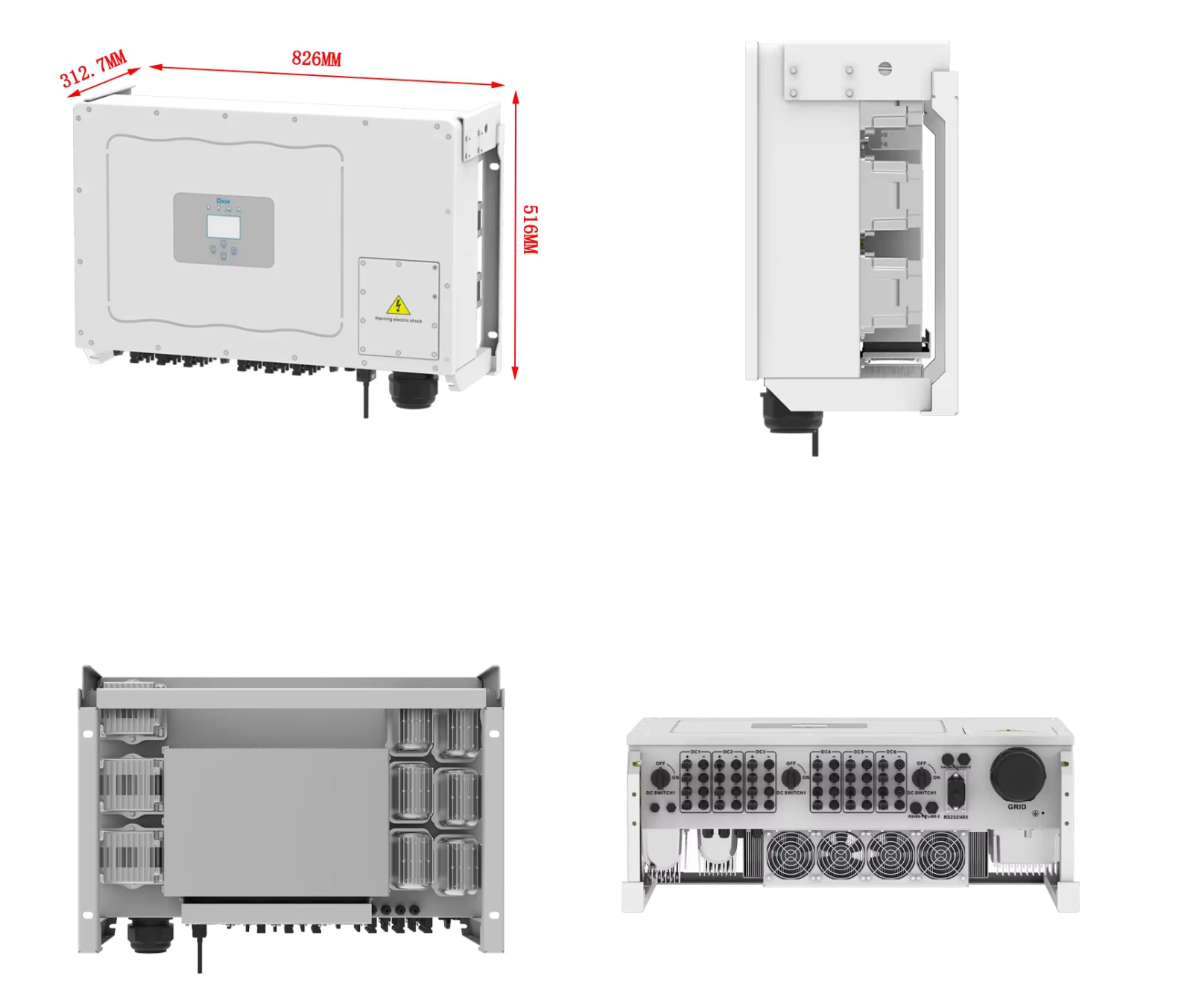

Cabinet Size (WxHxD mm) 824mm*516mm*312.7mm(Excluding connectors and brackets)
Weight [kg] 81
Warranty 5 years
Type Of Cooling Intelligent air cooling
Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
