Specifications
Place of Origin :
Anhui, China
Model Number :
SUN-120/125/130/135/136-G01P3-EU-AM8
Brand Name :
Deye
Input Voltage :
600
Output Voltage :
220/380V, 230/400V
Output Current :
0.85Un-1.1Un
Output Frequency :
50/45-55, 60/55-65Hz
Output Type :
Three Phase
Size :
1006mm*516mm*325.5mm
Type :
DC/AC Inverters
Inverter Efficiency :
98.8%
Weight :
103kg
MOQ :
1 piece
Price :
$3,050-3,150 / piece
Description
Product Description

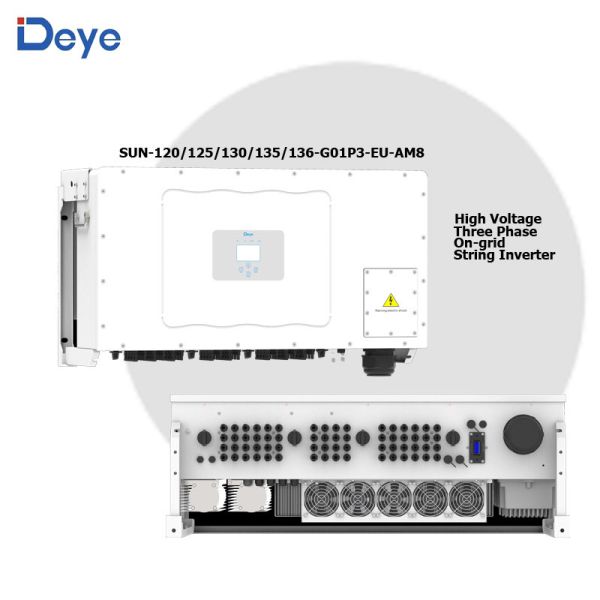

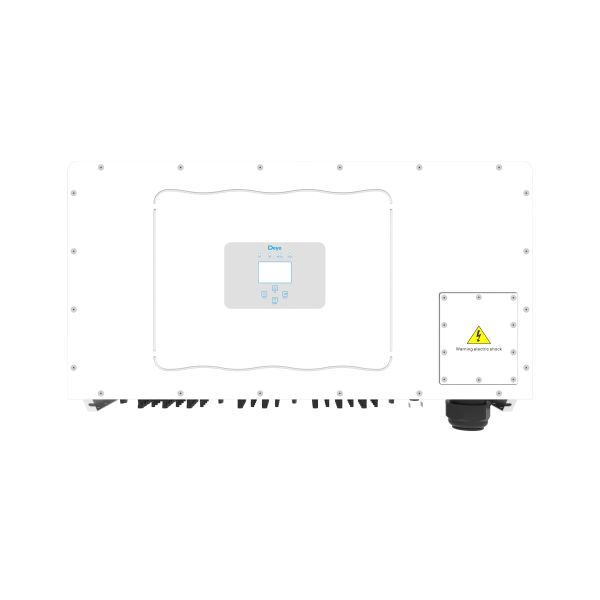

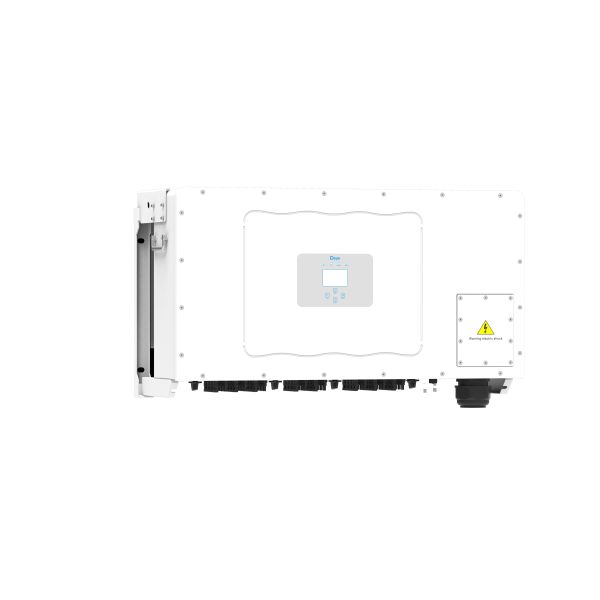

Deye SUN-120/125/130/135/136-G Solar String Inverter On-grid String Inverter High Voltage Three Phase Inverter 8MPPT

SUN-120/125/130/135/136- G01P3-EU-AM8
* 8 MPP trackers, Max. effiffifficiency up to 98.8%
* Zero export application, VSG application
* String intelligent monitoring (optional)
* Wide output voltage range
* Anti-PID function (Optional)
* Type II DC/AC SPD
Specification
Model
SUN-120K-G01P3
SUN-125K-G01P3
SUN-130K-G01P3
SUN-135K-G01P3
SUN-136K-G01P3
PV String Input Date
Max. PV Input Power(kW)
180
187.5
195
202.5
204
Max. PV Input Voltage(V)
1100
Start-up Voltage(V)
250
MPPT voltage range(V)
200-1000
Rated PV Input voltage(V)
600
Max. Input Short Circuit Current (A)
60+60+60+60+60+60+60+60
Max. Operating PV Input Current(A)
40+40+40+40+40+40+40+40
No. of MPP Trackers/No. of Strings per MPP Tracker
8/4+4+4+4+4+4+4+4
AC Output Side
Rated AC Output Active Power(kW)
120
125
130
135
136
Max. AC Output Apparent Power(kVA)
132
135
135
135
136
Rated AC output current (A)
181.9/174
189.4/181.2
197/188.5
204.6/195.7
206.1/197.2
Max. AC Output Current(A)
200/191.4
204.6/195.7
204.6/195.7
204.6/195.7
206.1/197.2
Rated output voltage/range (V)
220/380V, 230/400V 0.85Un-1.1Un
Grid Connection Form
3L+N+PE
Rated Output Grid Frequency/range(Hz)
50/45-55, 60/55-65
Power Factor Adjustment Range
0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi
<3%
DC Injection Current
<0.5%ln
Efficiency
Max. Efficiency
98.8%
Euro Efficiency
98.2%
MPPT Efficiency
>99%
Equipment Protection
DC Polarity Reverse Connection Protection
YES
AC Output Overcurrent Protection
YES
AC Output Overvoltage Protection
YES
AC Output Short Circuit Protection
YES
Thermal Protection
YES
DC Terminal Insulation Impedance Monitoring
YES
DC Component Monitoring
YES
Ground Fault Current Monitoring
YES
Power Network Monitoring
YES
Arc Fault Circuit Interrupter (AFCI)
Optional
Island Protection Monitoring
YES
Earth Fault Detection
YES
Overvoltage Load Drop Protection
YES
Residual Current (RCD) Detection
YES
Surge Protection Level
TYPE II(DC),TYPE II(AC)
Interface
Communication Interface
RS485/RS232
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (°C)
‘-25 to +60℃, >45℃ Derating
Permissible Ambient Humidity
0~100%
Permissible Altitude (m)
4000m
Noise (dB)
≤ 65
Ingress Protection(IP) Rating
IP 65
Inverter Topology
Non-Isolated
Over Voltage Category
OVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm)
1006mm*516mm*325.5mm(Excluding connectors and brackets)
Weight [kg]
103
Warranty
5 years
Type Of Cooling
Intelligent air cooling
Grid Regulation
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Packing & Delivery
Deye SUN-120/125/130/135/136-G Solar String Inverter On-grid String Inverter High Voltage Three Phase Inverter 8MPPT
Deye SUN-120/125/130/135/136-G Solar String Inverter On-grid String Inverter High Voltage Three Phase Inverter 8MPPT
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Anhui Minvic New Energy Technology Co., Ltd, established in 2018, has a subsidiary, Anhui Minvic Import & Export Trading Co. We focus on the development, production and sales of photovoltaic new energy products. We are committed to helping our global partners make great strides in products, technologies and solutions related to new energy generation. We are adhering to our vision of linking the world's trading partners and driving the global PV industry forward to achieve a carbon neutral world.
