Specifications
Place of Origin :
Guangdong, China
Model Number :
SUN-23/25/30K-G04-LV
Brand Name :
Deye
Input Voltage :
800V
Output Voltage :
220/380V, 230/400V
Output Current :
63.9/60.4/57.7A-83.4/78.8/75.2A
Output Frequency :
50/60Hz
Output Type :
Three Phase
Size :
647.5x537x303.5mm
Type :
DC/AC Inverters
Inverter Efficiency :
98.5%
Weight :
44.5 kg
MOQ :
1 piece
Price :
$420-500 / piece
Description
Product Description

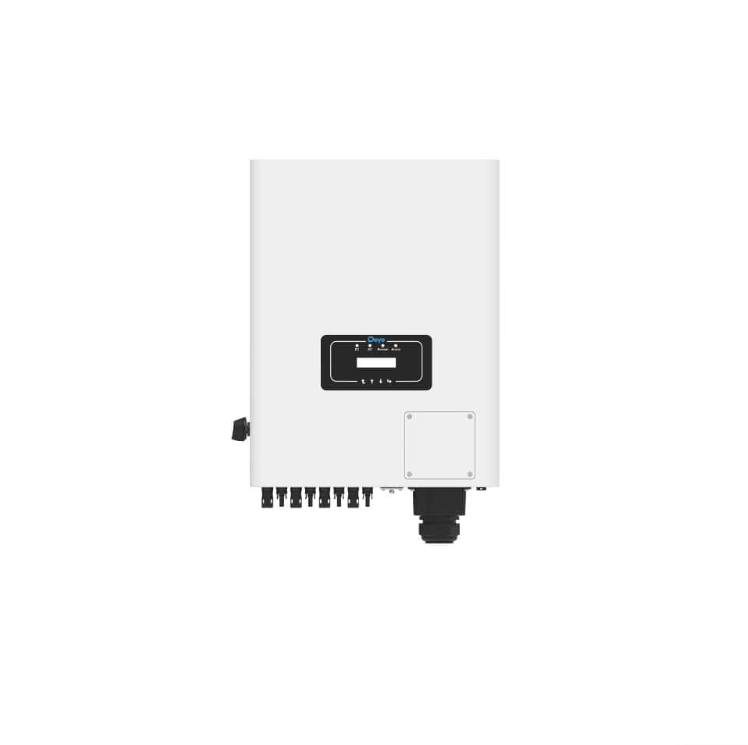

Deye SUN-23/25/30K-G04-LV On-grid Solar String Inverter 23kw 25kw 30kw Three Phase on Grid Solar Inverter
SUN-23/25/30K-G04-LV
* 127V/220V, 133V/230V and 50/60Hz, Three phase system
* Max 4 MPP tracker, Max. efficiency up to 98.7%
* Zero export application, VSG application
* String intelligent monitoring (optional)
* Wide output voltage range
* Anti-PID function (Optional)
Product Parameter

Model SUN-23K-G04-LV SUN-25K-G04-LV SUN-30K-G04-LV
PV String Input Data
Max. PV Input Power(kW) 29.9 32.9 39
Max. PV Input Voltage(V) 800
Start-up Voltage(V) 250
MPPT voltage range(V) 200-700
Rated PV Input voltage(V) 400
Max. Operating PV Input Current(A) 40+40+40 40+40+40+40
Max. Input Short Circuit Current (A) 60+60+60 60+60+60+60
NO. of MPP Trackers/No. of Strings per MPP Tracker 3/3+3+3 4/3+3+3+3
AC Output Side
Rated AC Output Active Power(KW) 23 25 30
Max. AC Output Apparent Power(KVA) 23 25 30
Rated AC output current (A) 60.4/57.7 65.7/62.7 78.8/75.2
Max. AC Output Current(A) 60.4/57.7 65.7/62.7 78.8/75.2
Rated output voltage/range (V) 127V/220V, 133V/230V 0.85UN-1.1UN
Grid Connection Form 3L/N/PE
Rated Output Grid Frequency/range(Hz) 50/45-55, 60/55-65
Power Factor Adjustment Range 0.8 leading to 0.8lagging
Total Current Harmonic Distortion THDi <3%
DC Injection Current <0.5%ln
Efficiency
Max. Efficiency 98.7%
Euro Efficiency 98.1%
MPPT Efficiency >99%
Equipment Protection Yes
DC Polarity Reverse Connection Protection Yes
AC Output Overcurrent Protection Yes
AC Output Overvoltage Protection Yes
AC Output Short Circuit Protection Yes
Thermal Protection Yes
DC Terminal Insulation Impedance Monitoring Yes
DC Component Monitoring Yes
Ground Fault Current Monitoring Yes
Power Network Monitoring Yes
Arc Fault Circuit Interrupter (AFCI) Optional
Island Protection Monitoring Yes
Earth Fault Detection Yes
Overvoltage Load Drop Protection Yes
Residual Current (RCD) Detection Yes
Surge Protection Level TYPE II(DC),TYPE II(AC)
Interface
Communication Interface RS485/RS232
Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range (°C) -25 to +60℃, >45℃ Derating
Permissible Ambient Humidity 0~100%
Permissible Altitude (m) 4000m
Noise (dB) ≤ 55
Ingress Protection(IP) Rating IP65
Inverter Topology Non-Isolated
Over Voltage Category OVC II(DC),OVC III(AC)
Cabinet Size (WxHxD mm) 824mm*516mm*312.7mm(Excluding connectors and brackets)
Weight [kg] 81
Warranty 5 years
Type Of Cooling Intelligent air cooling
Grid Regulation IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
More Details and Informations Please Contact Us by WhatsApp/WeChat:+86 184 7691 5685

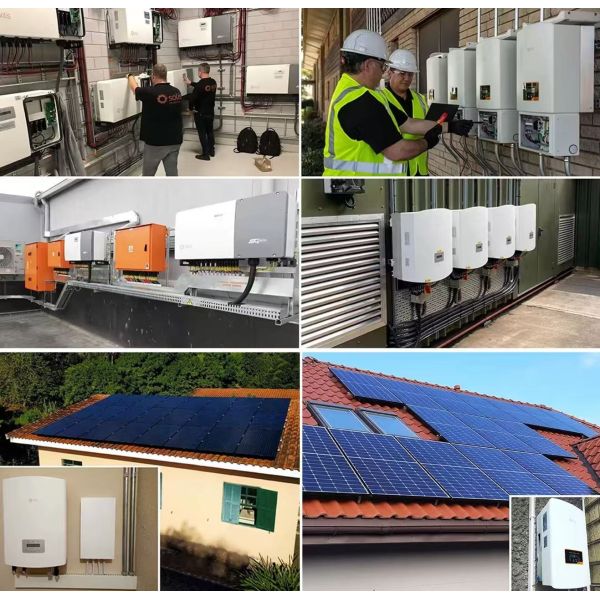

Project Cases

Deye SUN-23/25/30K-G04-LV On-grid Solar String Inverter 23kw 25kw 30kw Three Phase on Grid Solar Inverter
Deye SUN-23/25/30K-G04-LV On-grid Solar String Inverter 23kw 25kw 30kw Three Phase on Grid Solar Inverter
Packaging & Shipping

Deye SUN-23/25/30K-G04-LV On-grid Solar String Inverter 23kw 25kw 30kw Three Phase on Grid Solar Inverter
Deye SUN-23/25/30K-G04-LV On-grid Solar String Inverter 23kw 25kw 30kw Three Phase on Grid Solar Inverter
FAQ

1. Who are we?
We are based in Shenzhen, China, establish in 2015,our products are sold to Northern Europe(4.00%),Eastern Europe(6.00%),Western Europe(18.00%),Domestic Market(8.00%),Mid East(8.00%),Southern Europe(11.00%),Central America(8.00%),South America(5.00%),North America(11.00%),Africa(8.00%),Eastern Asia(1.00%),Oceania(5.00%),Southeast Asia(5.00%),South Asia(2.00%). There are total more than 200 staffs in our company.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
100% final Inspection before shipment.

3.What can you buy from us?
Solar Inverters, Solar Panels,Energy Storage Batteries, Solar Systems with battery or withiout battery,EV Charging Station.

4. Why should you buy from us not from other suppliers?
New energy integrated company, more than 11 years experience in PV industry, with complete supply chain for battery,solar modules, inverters,etc. Also, provide the whole system design, development and implementation.

5. What services can we provide?
Accepted Delivery Terms: EXW,FOB,CIF,CFR,DDP,DDU,Express Delivery,etc;
Accepted Payment Currency:USD,EUR,AUD,CNY,RMB,CAD,SGD,etc;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,etc.
Language Spoken:English,French,Spanish,Italian,German,Arabic,Chinese,Russian,etc.
