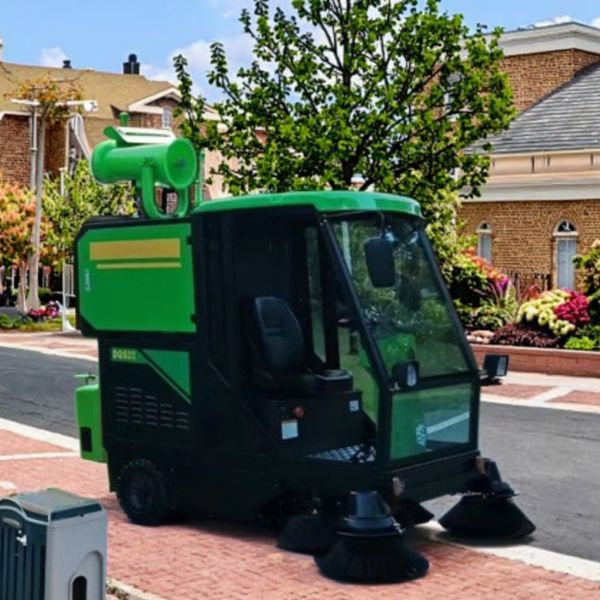

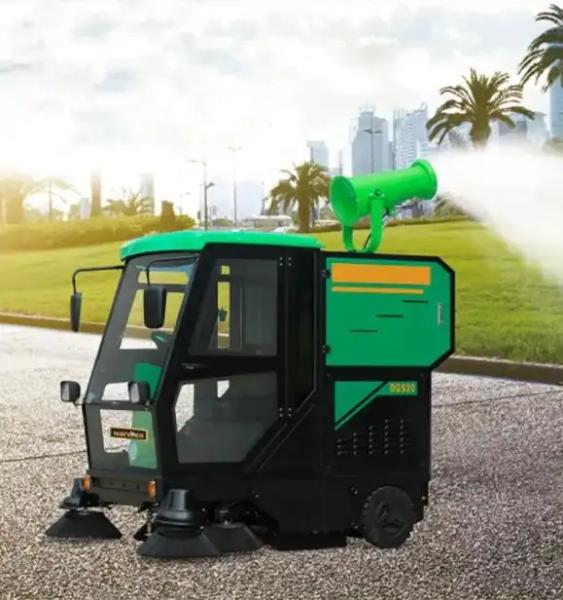

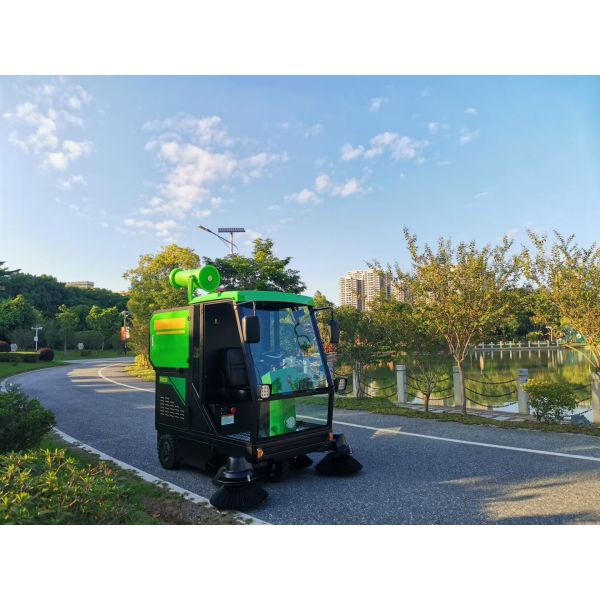

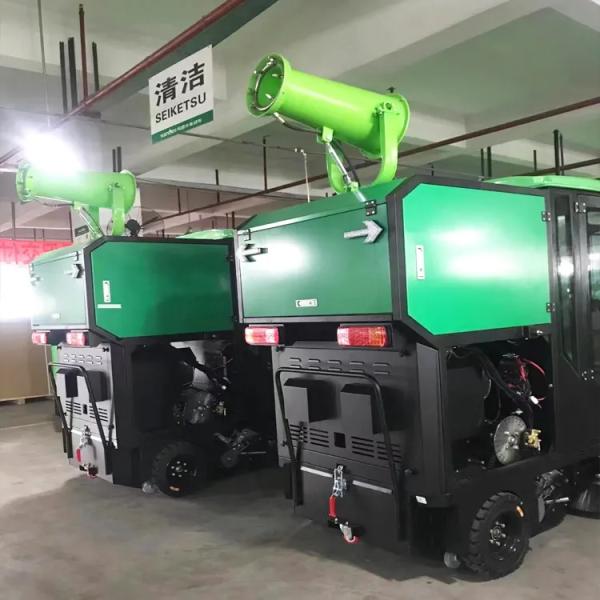

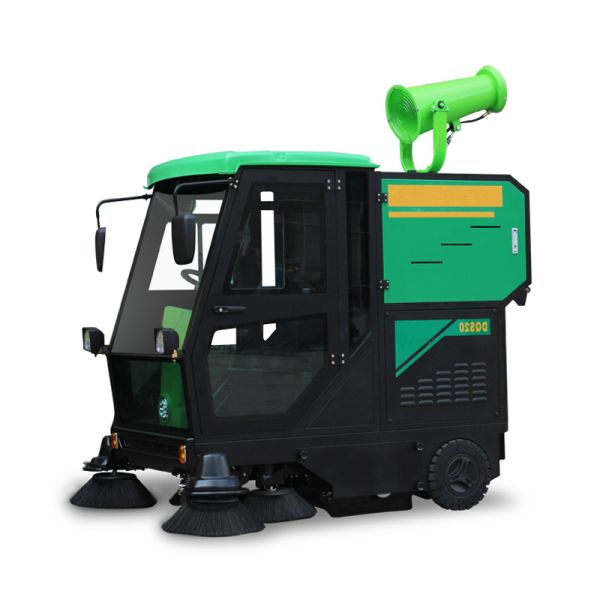

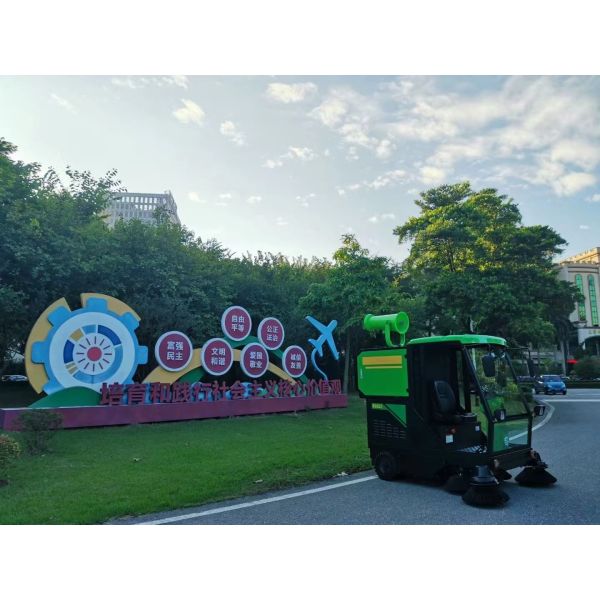

DQS20 78.7 inch Cleaning Width Fully Enclosed Sweeper with fog cannon machine
DQS20 78.7 inch Cleaning Width Fully Enclosed Sweeper with fog cannon machine
DQS20 78.7 inch Cleaning Width Fully Enclosed Sweeper with fog cannon machine
DQS20 78.7 inch Cleaning Width Fully Enclosed Sweeper with fog cannon machine
DQS20 78.7 inch Cleaning Width Fully Enclosed Sweeper with fog cannon machine
DQS20 78.7 inch Cleaning Width Fully Enclosed Sweeper with fog cannon machine
DQS20 78.7 inch Cleaning Width Fully Enclosed Sweeper with fog cannon machine
DQS20 78.7 inch Cleaning Width Fully Enclosed Sweeper with fog cannon machine
Specifications
Brand Name :
Marshell
Model Number :
DQS20
Certification :
CE
Place of Origin :
Guangzhou of China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
50 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton package 2515*2170*2190 mm / 9.5 m³ / 1100kg
Color :
Green
Cleaning width :
2000 mm / 78.7 inch
Cleaning efficiency :
15000 ㎡/h
Power :
5200W
Bin capacity :
180L
Tank capacity :
200L
Maximum cleaning particle :
60 mm
Battery working time :
4 H
Charging time :
8-10 H
Description
78.7 inch clean width Marshell DQS20 Fully Enclosed Sweeper with Sprayer CE certified 1 years warranty
Description:
  • This fully enclosed sweeper features a 2.0m ultra-wide cleaning width for high-efficiency large-area cleaning, paired with a built-in sprayer for excellent dust suppression. Its full-enclosure structure ensures superior dust containment and reliable protection for internal components, while the professional sweeping system delivers thorough, dead-corner-free cleaning. With easy operation and flexible maneuverability, it’s an ideal durable and cost-effective cleaning solution for factories, warehouses, parking lots, plazas and other indoor & outdoor large spaces.
Specifications:
Model DQS20 Unit
External Dimension(l'*h*w with fog cannon machine) 2500*2000*2700 mm
Total weight(with battery) 1100 kg
Voltage 48 V
Total power 7000 W
Wheel base 1295 mm
Track rear 1080 mm
Minimum turning radius ≤2 m
Sweeping width 2000 mm
Main brush width 800 mm
Side brush diameter 550*2+500*2 mm
Cleaning efficiency 15000 ㎡/H
Main brush motor power 600 W
Driving motor power 4000 W
Charge time 8-10H H
Working time 4 H
Dustbin capacity 180 L
Max. gradeability 20 %
Maximum speed 9.5/7.5 km/h
Water tank capacity 200 L
Centrifugal blower power 230*2 W
Fog cannon device Yes /
Water cannon Yes /
Front shock absorber Yes /
Filtering area 6*2 ㎡
Lead-acid battery(standard) 48V200AH -
Lithium battery(optional) 48V300AH(Optional) -
Notices:

1.Clean the filter manually at regular intervals to ensure that dust controlis not reduced.

2.Avoid cleaning slippery and water-logged surfaces, which tend to accumulate in front of the main brush and require frequent cleaning.

3.The brush pressure should not be too low,otherwise it will affectthe cleaning effect and accelerate the wear of the brushes.

4.When crossing obstacles,reduce the speed ofthe vehicle.

5. After use in winter,empty the watertank and pipes to prevent ice from forming.

Advantages:
  • 4KW high-power AC rear axle drive,stronger climbing ability.
  • Hydraulic double disc brake system, safe and reliable.
  • Double fan filter system,stronger suction, better dust controle ffect.
  • Shrinkable side brush anti-collision structure,effectively protect the side brush structure
  • Equipped with large-screen HD reverse image system to ensure driving safety.
  • Equipped with fog cannon generation device for urban dust removal and cooling.
  • High pressure water gun,remove stubborn stains.
  • Front wheel double spring shock absorption,improve driving comfort.
Applications:

Mainly widely applicable to various outdoor large-area open sites and semi-open industrial sites, including industrial parks, logistics yards, outdoor parking lots, urban squares, commercial plazas, factory peripheral areas, port terminals, scenic spots, school campuses, property communities and construction sites.

The machine’s excellent terrain adaptability and large-area cleaning capacity make it the ideal cleaning equipment for industrial, municipal, commercial and property management scenarios.
