Huawei Switch S5700-28C-PWR-EI with 2 Extended Slots Pluggable Fan Modules and Forced Air Cooling
Huawei Switch S5700-28C-PWR-EI with 2 Extended Slots Pluggable Fan Modules and Forced Air Cooling
Huawei Switch S5700-28C-PWR-EI with 2 Extended Slots Pluggable Fan Modules and Forced Air Cooling
Huawei Switch S5700-28C-PWR-EI with 2 Extended Slots Pluggable Fan Modules and Forced Air Cooling
Specifications
Brand Name :
Huawei
Model Number :
S5700-28C-PWR-EI
MOQ :
1
Price :
$2320
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
190pcs
Delivery Time :
3-5 days
Description :
S5700-28C-PWR-EI(24 Ethernet 10/100/1000 PoE+ ports,with 1 interface slot,without power module)
Condition :
Original New; In stock
Description

Huawei Switch S5700-28C-PWR-EI (02352361)


Huawei S5700-28C-PWR-EI is a Layer 3 Ethernet switch. It supports 24 × 10/100/1000 Base-T (GE PoE) ports. It also provides two extended slots, one for an uplink sub-card and the other for a stack card.


Quick Specification


Table 1 shows the quick specification.



Model

S5700-28C-PWR-EI

Part Number

02352361

Downlink Ports

24 × PoE+ 10/100/1000BASE-T ports

Extended Slots

2

Forwarding Performance

96 Mpps

Switching Capacity

256 Gbit/s

Stack

Supported

Stack Ports

Two stack ports available on each stack card

Power

2 power modules slot (need to purchase additional power)

Heat Dissipation

Pluggable fan modules for forced air cooling

Memory (RAM)

256 MB

Flash

32 MB

Dimensions (W x D x H)

44.2 cm x 42 cm x 4.36 cm

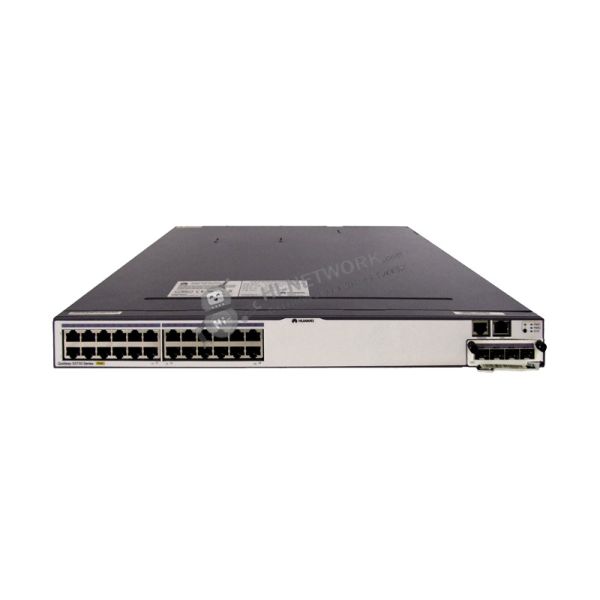

Figure 1 shows the appearance of S5700-28C-PWR-EI.


Huawei Switch S5700-28C-PWR-EI with 2 Extended Slots Pluggable Fan Modules and Forced Air Cooling

Product Details

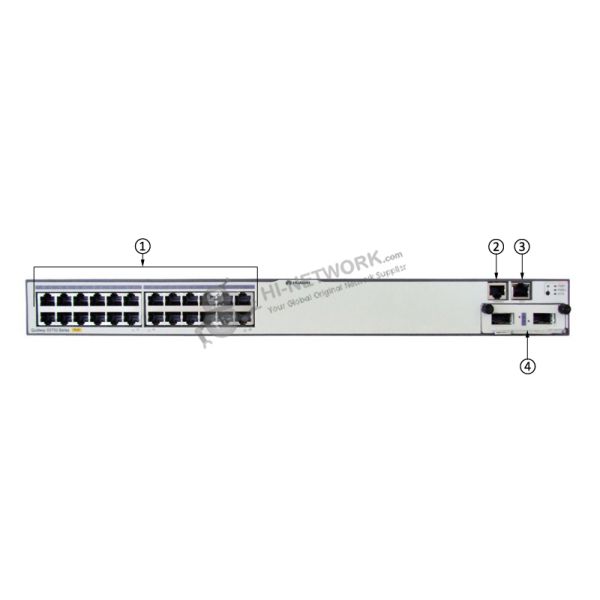

Figure 2 shows the front panel of S5700-28C-PWR-EI.

Huawei Switch S5700-28C-PWR-EI with 2 Extended Slots Pluggable Fan Modules and Forced Air Cooling

Note:




(1)

Twenty-four PoE+ 10/100/1000BASE-T ports

(3)

ETH management port

(2)

One console port

(4)

Sub-card slot with installed sub-card

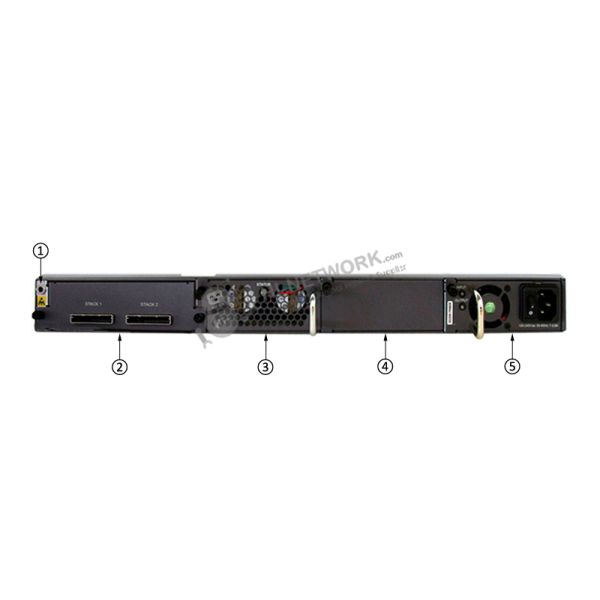

Figure 3 shows the back panel of S5700-28C-PWR-EI.

Huawei Switch S5700-28C-PWR-EI with 2 Extended Slots Pluggable Fan Modules and Forced Air Cooling

Note:


(1)

ESD jack

(4)

Power module slot 2

(2)

Rear card slot

(5)

Power module slot 1

(3)

Fan slot



The Transceiver


Table 2 shows the recommended transceivers.












Model

Description

GE-SFP Optical Transceiver

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)











Compare to Similar Items


Table 3 shows the comparison of Huawei S5700-28C-PWR-EI and S5700-52C-PWR-EI.














Models

S5700-28C-PWR-EI

S5700-52C-PWR-EI

Downlink Ports

24 × PoE+ 10/100/1000BASE-T ports

48 × PoE+ 10/100/1000BASE-T ports

Uplink Ports

Sub-cards supported the uplink ports.

Sub-cards supported the uplink ports.

Power Supply

Two power module slots (need to purchase additional power)

Two power module slots (need to purchase additional power)

PoE Supported

Yes

Yes
