The S1700 series switches are next-generation energy-saving Ethernet access switches. They provide easy installation and maintenance methods and various service features to help users build secure, reliable, and high-performance networks. The S1700 series switches can be widely used in Ethernet access scenarios such as small- and medium-sized enterprises, Internet cafes, hotels, and schools.
|
Model |
S1720-28GWR-PWR-4P |
|
Part Number |
98010592 |
|
First supported version |
V200R010C00 |
|
Description |
S1720-28GWR-PWR-4P (24 Ethernet 10/100/1000 ports, 4 Gig SFP, PoE+, 370W POE AC 110/220V) |
|
Memory |
512 MB |
|
Flash memory |
512 MB in total. To view the available flash memory size, run the display version command. |
|
Typical power consumption |
26.0 W |
|
Typical heat dissipation |
88.71 BTU/hour |

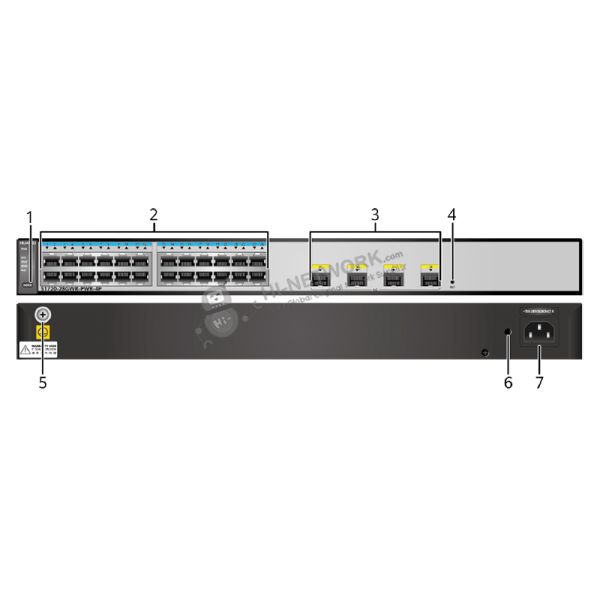

Note:
|
(1) |
Mode switching button |
(5) |
Ground screw |
|
(2) |
Twenty-four PoE+ 10/100/1000BASE-T ports |
(6) |
Jack reserved for AC power cable locking strap |
|
(3) |
Four 1000BASE-X Ethernet ports |
(7) |
AC power socket |
|
(4) |
Reset button |
