Huawei Switch S5735S-L48P4X-A with 48 x 10/100/1000BASE-T Ports 4 x 10GE SFP+ Ports and PoE+ for Enterprise Networks
Huawei Switch S5735S-L48P4X-A with 48 x 10/100/1000BASE-T Ports 4 x 10GE SFP+ Ports and PoE+ for Enterprise Networks
Huawei Switch S5735S-L48P4X-A with 48 x 10/100/1000BASE-T Ports 4 x 10GE SFP+ Ports and PoE+ for Enterprise Networks
Huawei Switch S5735S-L48P4X-A with 48 x 10/100/1000BASE-T Ports 4 x 10GE SFP+ Ports and PoE+ for Enterprise Networks
Specifications
Brand Name :
Huawei
Model Number :
S5735S-L48P4X-A
MOQ :
1
Price :
$653
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
660pcs
Delivery Time :
3-5 days
Description :
S5735S-L48P4X-A bundle (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, 1*1000W PoE AC power module)
Condition :
Original New; In stock
Description

Huawei Switch S5735S-L48P4X-A (98010945)


S5735S-L48P4X-A is the Huawei S5735-L switch with 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, PoE+, Distribution. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.



Quick Specification

Table 1 shows the Quick Specification.








Model

S5735S-L48P4X-A

Part Number

98010945

Description

S5735S-L48P4X-A bundle (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, PoE+, 1*1000W PoE AC power module)

First supported version

V200R019C00

Memory

1 GB

Flash memory

512 MB in total. To view the available flash memory size, run the display version command.

PoE

Supported

Weight with packaging [kg(lb)]

8.7

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 444.2 mm (1.72 in. x 17.40 in. x 17.49 in.)

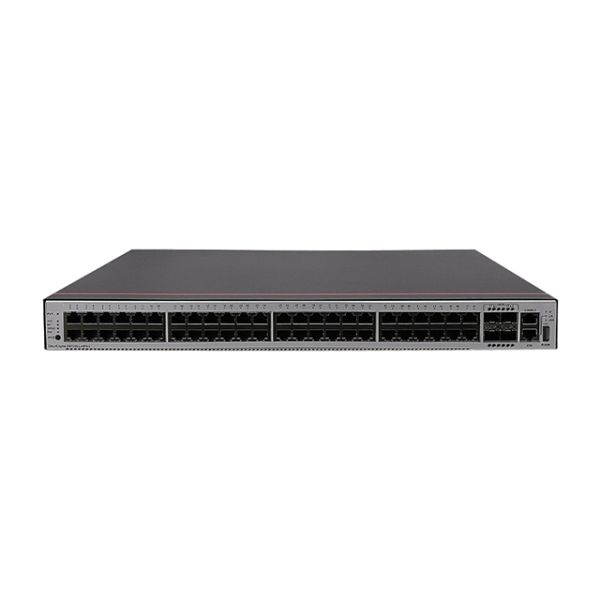

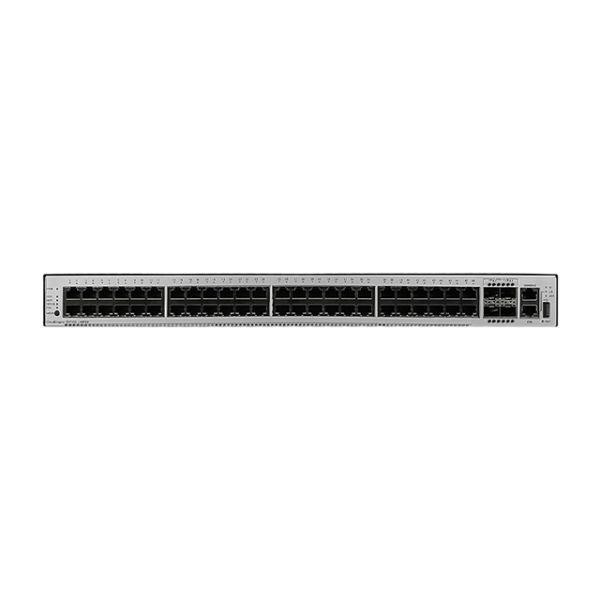

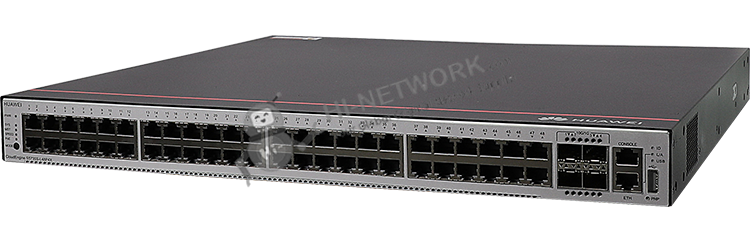

Figure 1 shows the appearance of S5735S-L48P4X-A.

Huawei Switch S5735S-L48P4X-A with 48 x 10/100/1000BASE-T Ports 4 x 10GE SFP+ Ports and PoE+ for Enterprise Networks


Product Details

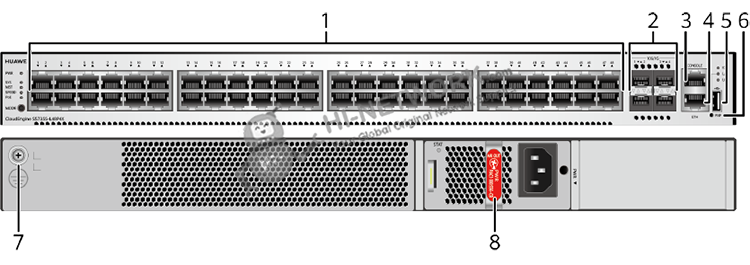

Figure 2 shows the structure of S5735S-L48P4X-A.

Huawei Switch S5735S-L48P4X-A with 48 x 10/100/1000BASE-T Ports 4 x 10GE SFP+ Ports and PoE+ for Enterprise Networks


Note:








(1)

Forty-eight PoE+ 10/100/1000BASE-T ports

(5)

One USB port

(2)

Four 10GE SFP+ ports

(6)

One PNP button

(3)

One console port

(7)

Ground screw

(4)

One ETH management port

(8)

Power module slot
