Huawei Switch LS-S5352C-EI with 176 Gbit/s Switching Capacity 256 Gbit/s Board Switching and 132 Mpps Forwarding Performance
Huawei Switch LS-S5352C-EI with 176 Gbit/s Switching Capacity 256 Gbit/s Board Switching and 132 Mpps Forwarding Performance
Specifications
Brand Name :
Huawei
Model Number :
LS-S5352C-EI
MOQ :
1
Price :
$593
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
350pcs
Delivery Time :
3-5 days
Description :
S5352C-EI Mainframe (48 10/100/1000Base-T ports and supports 2 10GE XFP subcards, 4 1000Base-X SFP subcards, 2 10GE SFP+ subcards, and 4 10GE SFP+ subcards, Dual Slots of power, Without Flexible Card and Power Module)
Condition :
Original New; In stock
Description

Huawei Switch LS-S5352C-EI (02351622)


Huawei S5300 Series Switch S5352C-EI Mainframe 48 10/100/1000 RJ-45, Chassis, Dual Slots of power, Without Flexible Card and Power Module, Basic layer 3 Features. It is one of the Quidway S5300 series gigabit switches. The Quidway S5300 series gigabit switches (hereinafter referred to as the S5300s) are new generation Ethernet gigabit switches developed by Huawei to meet the requirements for high-bandwidth access and Ethernet multiservice convergence, providing powerful Ethernet functions for carriers and enterprise customers. Based on the new generation high-performance hardware and Huawei Versatile Routing Platform (VRP) software, the S5300 features large capacity and gigabit interfaces of high density, provides 10G uplinks, meeting customers' requirements for the 1G and 10G uplink devices of high density. The S5300 can meet the requirements of multiple scenarios such as service convergence on campus networks and intranets, the access to the IDC at a rate of 1000 Mbit/s, and the access to computers at a rate of 1000 Mbit/s on intranets.



Quick Specification


Table 1 shows the quick specification.


Model

LS-S5352C-EI

Part Number

02351622

Description

S5352C-EI Mainframe (48 10/100/1000Base-T ports and supports 2 10GE XFP subcards, 4 1000Base-X SFP subcards, 2 10GE SFP+ subcards, and 4 10GE SFP+ subcards, Dual Slots of power, Without Flexible Card and Power Module)

Fixed Port

48*10/100 /1000 Base-TX

Extended slot

Two extended slots, which can be installed with uplink subcard and stacking card respectively

Port switching capacity (bit/s)

176 Gbit/s

Board switching capacity

256 Gbit/s

Forwarding Performance

132 Mpps

RPS

Not supported

PoE

No

Mean time between failures (MTBF)

46.05 years when a 2x10GE card is configured; 57.08 years when a 4xGE front card is configured; 25.58 years when a 4x10GE front card is configured

Memory

256 MB

Flash

32 MB

Input voltage

AC: Rated voltage: 100 V to 240 V AC, 50/60 Hz Maximum voltage: 90 to 264 V AC, 50/60 Hz
DC: Rated voltage range: –48 V to –60 V, DC Maximum voltage: –36 to –72 V DC
Note: POE hosts do not support DC power modules.

Power consumption

< 88 W

Dimensions (W x D x H)

442.0 mm x 420.0 mm x 43.6 mm

Weight

Fully loaded ≤ 8.5 kg
Empty loaded ≤ 5 kg

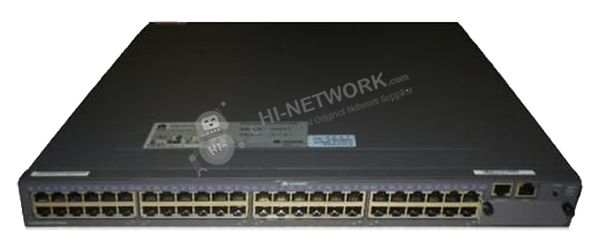

Figure 1 shows the appearance of LS-S5352C-EI.


Huawei Switch LS-S5352C-EI with 176 Gbit/s Switching Capacity 256 Gbit/s Board Switching and 132 Mpps Forwarding Performance



Product Details

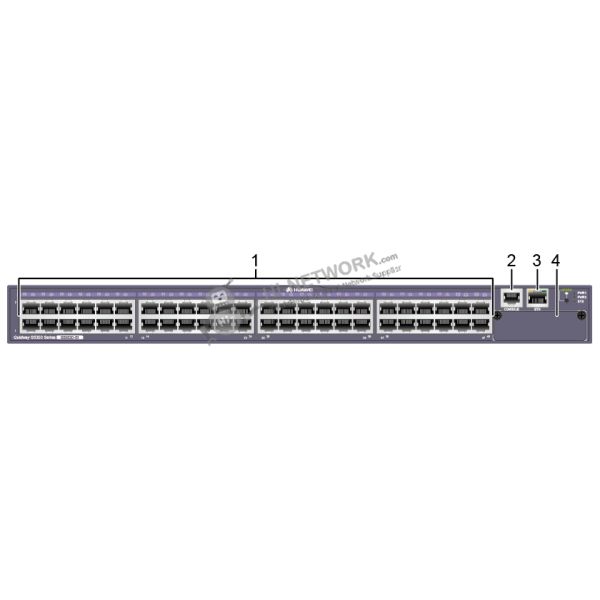

Figure 2 shows the front panel of LS-S5352C-EI.

Huawei Switch LS-S5352C-EI with 176 Gbit/s Switching Capacity 256 Gbit/s Board Switching and 132 Mpps Forwarding Performance


Note:


(1)

Forty-eight 10/100/1000BASE-T Ethernet electrical ports

(3)

One ETH management port

(2)

One console port

(4)

Front card slot

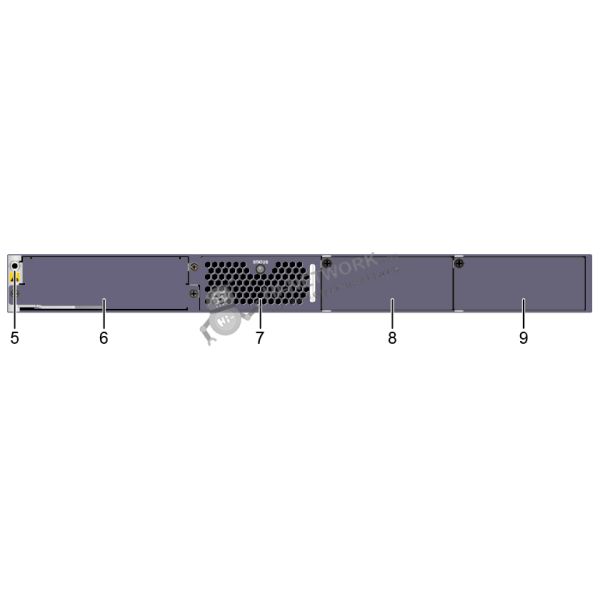

Figure 3 shows the back panel of LS-S5352C-EI.

Huawei Switch LS-S5352C-EI with 176 Gbit/s Switching Capacity 256 Gbit/s Board Switching and 132 Mpps Forwarding Performance


Note:


(5)

ESD jack

(8)

Power module slot 2

(6)

Rear card slot

(9)

Power module slot 1

(7)

Fan module slot



The Modules


Table 2 shows the recommended elements for the LS-S5352C-EI.


Model

Description

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

Optical Transceiver, SFP, 100M/155M, Multi-mode Module (1310nm, 2km, LC)

eSFP-FE-LX-SM1310

Optical Transceiver, eSFP, 100M/155M, Single-mode Module (1310nm, 15km, LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, eSFP, FE, Single-mode Module (1310nm, 40km, LC)

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)



Compare to Similar Items


Table 3 shows the comparison of LS-S5352C-EI, LS-S5328C-PWR-EI and LS-S5328C-EI-24S.




Model

LS-S5352C-EI

LS-S5328C-PWR-EI

LS-S5328C-EI-24S

Fixed Port

48*10/100 /1000 Base-TX

24*10/100 /1000 Base-TX

24*10/100 /1000 Base-TX

Port switching capacity (bit/s)

176 Gbit/s

128 Gbit/s

128 Gbit/s

Board switching capacity

256 Gbit/s

256 Gbit/s

256 Gbit/s

Forwarding Performance

132 Mpps

96 Mpps

96 Mpps

RPS

Not supported

Not supported

Not supported

PoE

No

Yes

No

Mean time between failures (MTBF)

46.05 years when a 2x10GE card is configured; 57.08 years when a 4xGE front card is configured; 25.58 years when a 4x10GE front card is configured

52 years when a 2x10GE card is configured; 55.4 years when a 4xGE front card is configured

41.33 years when a 2x10GE card is configured; 50.00 years when a 4xGE front card is configured; 26.52 years when a 4x10GE front card is configured

Memory

256 MB

256 MB

256 MB

Flash

32 MB

32 MB

32 MB

Power consumption

< 88 W

Max: 472 W (PoE: 370 W)

< 60 W
