Huawei S5720-36C-EI-AC Gigabit Switch with 150W AC Power N + 1 Backup Mode and 132 Mpps Forwarding Performance
Huawei S5720-36C-EI-AC Gigabit Switch with 150W AC Power N + 1 Backup Mode and 132 Mpps Forwarding Performance
Huawei S5720-36C-EI-AC Gigabit Switch with 150W AC Power N + 1 Backup Mode and 132 Mpps Forwarding Performance
Huawei S5720-36C-EI-AC Gigabit Switch with 150W AC Power N + 1 Backup Mode and 132 Mpps Forwarding Performance
Specifications
Brand Name :
Huawei
Model Number :
S5720-36C-EI-AC
MOQ :
1
Price :
$1020
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
280pcs
Delivery Time :
3-5 days
Description :
S5720-36C-EI-AC(28 Ethernet 10/100/1000 ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+, 1 interface slot,with 150W AC)
Conditioni :
Original New; In stock
Description

Huawei Switch S5720-36C-EI-AC (02359562)


Huawei S5720-36C-EI-AC Gigabit Switch provides resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks. With twenty-eight 10/100/1,000 Base-T Ethernet ports, four combo 100/1,000 Base-X SFP ports and four 10G SFP+ ports, its performance enhancements include advanced processing hardware, large MAC address and routing tables; It also has multiple cards modules to meet customer s' different needs. Super Virtual Fabric (SVF) support enables intelligent virtualization, iStack clustering, and operation in N + 1 backup mode for simplified O&M and high availability. Mature IPv6 features ensure smooth migration to next-generation IP networking.


Quick Specification

Model

S5720-36C-EI-AC

Part Number

02359562

Memory (RAM)

2 GB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

PoE

Not supported

Weight with packaging [kg(lb)]

9.8 kg (21.61 lb)

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.)

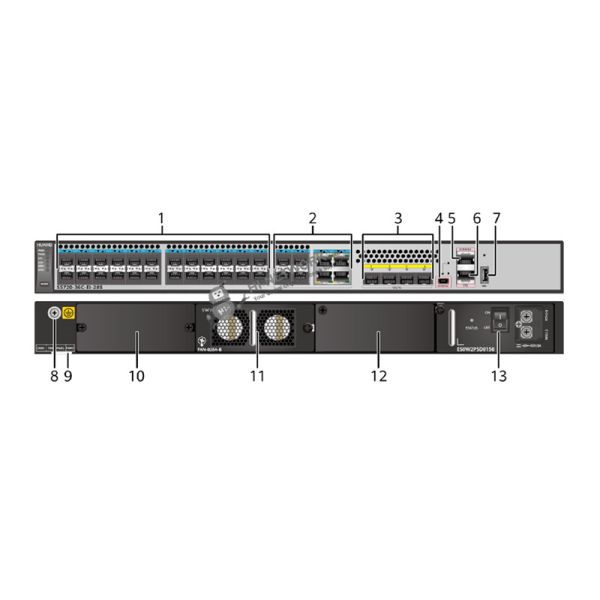

Appearance:


Huawei S5720-36C-EI-AC Gigabit Switch with 150W AC Power N + 1 Backup Mode and 132 Mpps Forwarding Performance


①

Twenty-four 10/100/1000BASE-T ports

②

Four combo ports (10/100/1000BASE-T + 100/1000BASE-X)

③

Four 10GE SFP+ ports

④

One mini USB port

⑤

One console port

⑥

One ETH management port

⑦

One USB port

⑧

Ground screw

⑨

ESN label

⑩

Rear card slot

⑪

Fan slot

⑫

Power module slot 2

⑬

Power module slot 1


The Accessories for S5720-36C-EI-AC

Recommended Elements:

Model

Description

GE-SFP Optical Transceiver

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)

SFP-1000BaseT

Electrical Transceiver, SFP , GE ,Electrical Interface Module(100m,RJ45)

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.1km,LC)

OMXD30000

Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)

OSX010000

Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm,10km,LC)

Card

ES5D21X02S01

2 10 Gig SFP+ Interface Card(used in S5720EI series)

ES5D21X02T01

2 10 Gig RJ45 Interface Card(used in S5720EI series)

ES5D21VST000

Dedicated stack card with 2*QSFP+ interface(Including one PCS of 1M QSFP+ cable ,Used in S5720EI series)


Compare to Similar Items:

Models

S5720-36C-EI-AC

S5720-36C-PWR-EI-AC

S5720-36C-EI-28S-AC

Fixed Ports

28 x 10/100/1,000 Base-T (4 GE Combo SFP), 4 x 10 Gig SFP+

28 x 10/100/1,000 Base-T (4 GE Combo SFP), 4 x 10 Gig SFP+

28 x 100/1,000 Base-X SFP (4 GE Combo), 4 x 10 Gig SFP+

Extended Slots

One extended slot

One extended slot

One extended slot

PoE

Not supported

Supported

Not supported

Forwarding Performance

132 Mpps

132 Mpps

132 Mpps

Switching Capacity

598 Gbit/s

598 Gbit/s

598 Gbit/s

Front Power Input

No

No

No

Power Consumption

39.5W

without PD: 48.5W, with PD: < 864.3W (PoE: 740W)

47.9W
