Huawei Switch S5735S-L24FT4S-A with 12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, and 4 × GE SFP ports for enterprise networks
Huawei Switch S5735S-L24FT4S-A with 12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, and 4 × GE SFP ports for enterprise networks
Huawei Switch S5735S-L24FT4S-A with 12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, and 4 × GE SFP ports for enterprise networks
Huawei Switch S5735S-L24FT4S-A with 12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, and 4 × GE SFP ports for enterprise networks
Specifications
Brand Name :
Huawei
Model Number :
S5735S-L24FT4S-A
MOQ :
1
Price :
$327
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
650pcs
Delivery Time :
3-5 days
Description :
S5735S-L24FT4S-A (12*10/100BASE-TX ports, 12*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)
Condition :
Original New; In stock
Description

Huawei Switch S5735S-L24FT4S-A (98010917)


S5735S-L24FT4S-A is the Huawei S5735-L switch with 12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, 4 × GE SFP ports. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.



Quick Specification

Table 1 shows the Quick Specification.





Model

S5735S-L24FT4S-A

Part Number

98010917

Software Version

V200R019C00 and later versions

Description

S5735S-L24FT4S-A (12*10/100BASE-TX ports, 12*10/100/1000BASE-T ports, 4*GE SFP ports, AC power)

Fixed Ports

48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports

PoE+

Not Supported

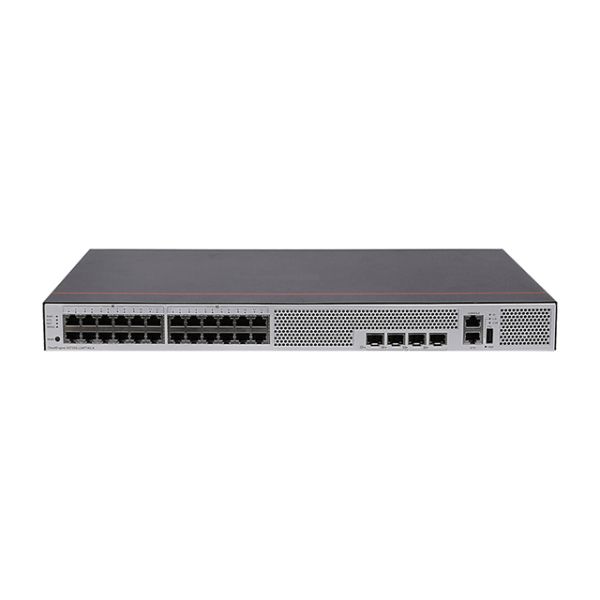

Figure 1 shows the appearance of S5735S-L24FT4S-A.

Huawei Switch S5735S-L24FT4S-A with 12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, and 4 × GE SFP ports for enterprise networks


Product Details

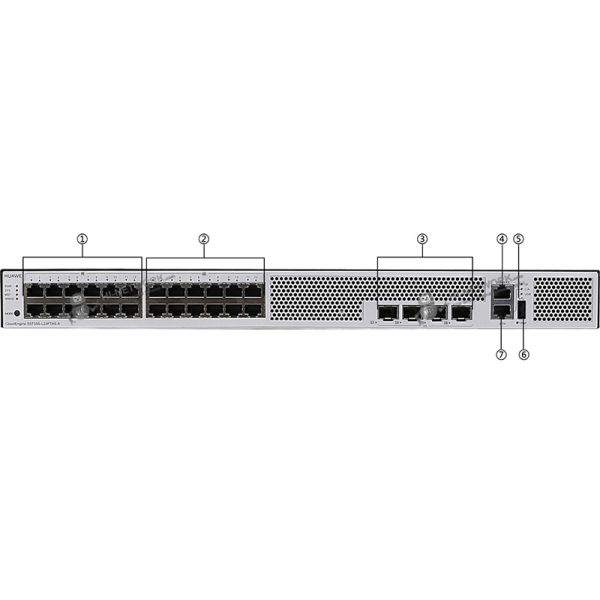

Figure 2 shows the front ports of S5735S-L24FT4S-A.

Huawei Switch S5735S-L24FT4S-A with 12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, and 4 × GE SFP ports for enterprise networks


Note:




(1)

Twelve 10/100BASE-TX ports

(5)

One USB port

(2)

Twelve 10/100/1000BASE-T ports

(6)

One PNP button

(3)

Four 1000BASE-X ports

(7)

One ETH management port

(4)

One console port

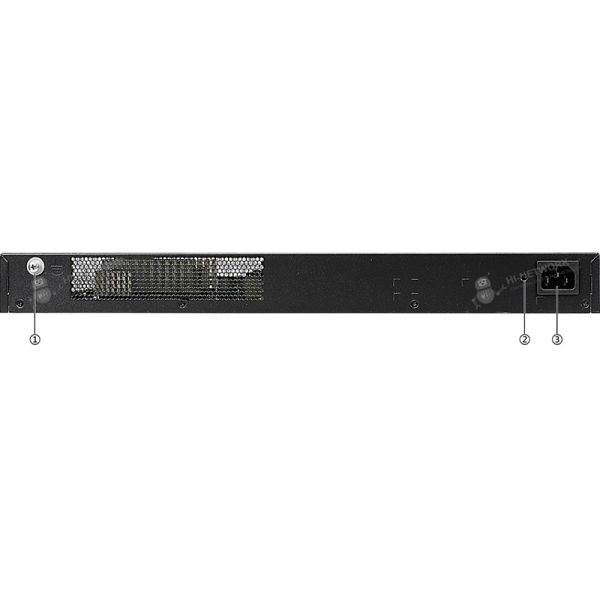

Figure 3 shows the back view of S5735S-L24FT4S-A.

Huawei Switch S5735S-L24FT4S-A with 12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, and 4 × GE SFP ports for enterprise networks


Note:


(1)

Ground screw

(2)

Jack for AC power cable locking strap

(3)

AC socket



Supported Transceivers

Table 2 shows the recommended models.


Model

Description

OMXD30000

Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

OMXD30009

Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC)



Compare to Similar Items

Table 3 shows the comparison.

Model

S5735S-L48P4X-A

S5735S-L24FT4S-A

Fixed Ports

48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports

12 × 10/100Base-Tx ports, 12 × 10/100/1000Base-T ports, 4 × GE SFP ports

PoE+

Supported

Not Supported
