Huawei Switch S5700-28P-LI-24S-BAT with 28 Gig SFP ports 1 battery slot and 42 Mpps forwarding performance
Huawei Switch S5700-28P-LI-24S-BAT with 28 Gig SFP ports 1 battery slot and 42 Mpps forwarding performance
Specifications
Brand Name :
Huawei
Model Number :
S5700-28P-LI-24S-BAT
MOQ :
1
Price :
$1023
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
158pcs
Delivery Time :
3-5 days
Description :
S5700-28P-LI-24S-BAT(28 Gig SFP,4 of which are dual-purpose 10/100/1000 or SFP,1 battery slot,AC 110/220V)
Condition :
Original New; In stock
Description

Huawei Switch S5700-28P-LI-24S-BAT (98010511)



Huawei S5700 Series Switches provide highly scalable gigabit access for terminals in enterprise campus networks; also ideal for resilient server support and aggregation in large-scale data centers. S5700-28P-LI-24S-BAT offers 28 Gig SFP, 4 of which are dual-purpose 10/100/1000 or SFP, and 1 battery slot.



Quick Specification


Table 1 shows the quick specification.













Model

S5700-28P-LI-24S-BAT

Part Number

98010511

Ports

28 x GE SFP ports, 4 x Combo 10/100/1,000 Base-T Ethernet ports

Forwarding Performance

42 Mpps

Switching Capacity

256 Gbit/s

Stack

Not supported

RAM

256 MB

Flash

200 MB

Power

AC power supply
Battery

Heat Dissipation

Built-in fans for forced air cooling

Dimensions (W x D x H)

44.2 cm x 31 cm x 4.36 cm
















Figure 1 shows the appearance of S5700-28P-LI-24S-BAT.


Huawei Switch S5700-28P-LI-24S-BAT with 28 Gig SFP ports 1 battery slot and 42 Mpps forwarding performance

Product Details

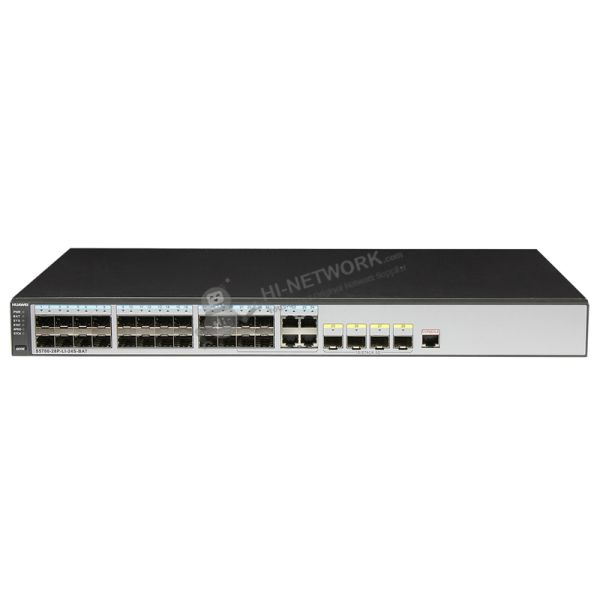

Figure 2 shows the front panel of S5700-28P-LI-24S-BAT.

Huawei Switch S5700-28P-LI-24S-BAT with 28 Gig SFP ports 1 battery slot and 42 Mpps forwarding performance

Note:




(1)

Twenty 100/1000BASE-X ports

(3)

Four 1000BASE-X ports

(2)

Four combo ports (10/100/1000BASE-T + 100/1000BASE-X)

(4)

One console port









Figure 3 shows the back panel of S5700-28P-LI-24S-BAT.

Huawei Switch S5700-28P-LI-24S-BAT with 28 Gig SFP ports 1 battery slot and 42 Mpps forwarding performance

Note:



(1)

Ground screw

(3)

Battery slot

(2)

AC socket




The Transceiver


Table 2 shows the recommended optical transceivers.













Model

Description

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)



The Power


Table 3 shows the battery module and AC power supply of this switch.

Models

Description

BAT-4AHA

Huawei BAT-4AHA Lithium ion battery unit for S5700

BAT-8AHA

Huawei BAT-8AHA Rechargeable Battery for S5700

ES0W2PSA0150

150W AC Power Module (Black)












Compare to Similar Items


Table 4 shows the comparison of Huawei S5700-28P-LI-24S-BAT and S5700-28X-LI-24S-AC.















Models

S5700-28P-LI-24S-BAT

S5700-28X-LI-24S-AC

Ports

28 Gig SFP,4 of which are dual-purpose 10/100/1000 or SFP

24 x GE SFP ports
4 x Combo 10/100/1,000 Base-T Ethernet ports

Power Supply

AC model, not supporting RPS
Support Battery Module

AC model, supporting RPS

Software Image

Lite software Image

Lite software Image
