Huawei AR6710-L8T3TS1X2 Network Switch with 2*GE Combo WAN 1*10GE(SFP+) WAN and 8*GE LAN Ports
Huawei AR6710-L8T3TS1X2 Network Switch with 2*GE Combo WAN 1*10GE(SFP+) WAN and 8*GE LAN Ports
Huawei AR6710-L8T3TS1X2 Network Switch with 2*GE Combo WAN 1*10GE(SFP+) WAN and 8*GE LAN Ports
Huawei AR6710-L8T3TS1X2 Network Switch with 2*GE Combo WAN 1*10GE(SFP+) WAN and 8*GE LAN Ports
Huawei AR6710-L8T3TS1X2 Network Switch with 2*GE Combo WAN 1*10GE(SFP+) WAN and 8*GE LAN Ports
Huawei AR6710-L8T3TS1X2 Network Switch with 2*GE Combo WAN 1*10GE(SFP+) WAN and 8*GE LAN Ports
Huawei AR6710-L8T3TS1X2 Network Switch with 2*GE Combo WAN 1*10GE(SFP+) WAN and 8*GE LAN Ports
Huawei AR6710-L8T3TS1X2 Network Switch with 2*GE Combo WAN 1*10GE(SFP+) WAN and 8*GE LAN Ports
Specifications
Brand Name :
Huawei
Model Number :
AR6710-L8T3TS1X2
MOQ :
1
Price :
$509
Payment Terms :
D/P,T/T,Western Union
Supply Ability :
300
Delivery Time :
3-5 work days
Description :
2*GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB 2.0, 2*SIC
Condition :
New Original; In Stock
Description
Huawei AR6710-L8T3TS1X2 Enterprise Access Router
The Huawei NetEngine AR6710-L8T3TS1X2 is the industry's first enterprise-class Access Router designed for Software-Defined Wide-Area Network (SD-WAN) solutions. Featuring a multi-core processor and non-blocking switching architecture, it delivers forwarding performance three times the industry average. Ideal for handling uplink traffic surges and supporting diversified service development, this router is widely deployed at the egress of medium and small-sized campus networks and enterprise headquarters.
Quick Specifications
Model AR6710-L8T3TS1X2
Part Number 02354PUH
Description 2*GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB 2.0, 2*SIC
First Supported Version V600R022C00
Memory 4 GB
NAND Flash 2 GB
Typical Power Consumption 27 W
Maximum Power Consumption 33 W

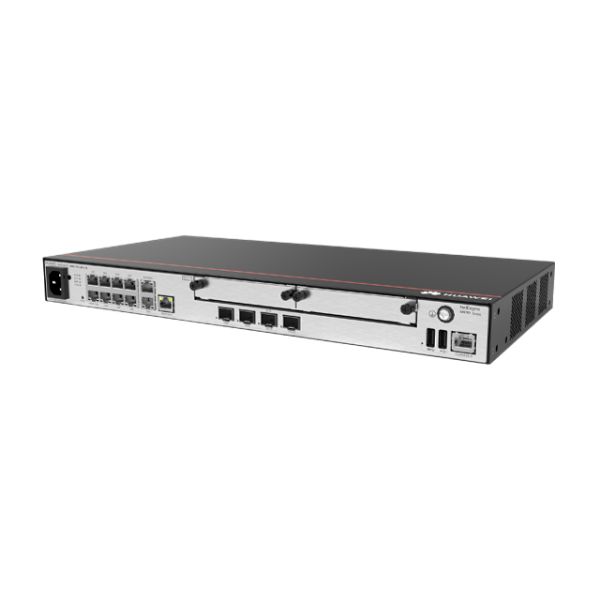

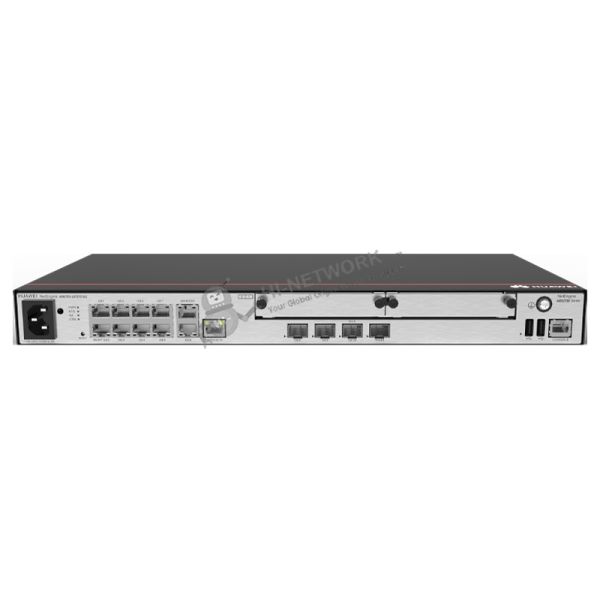

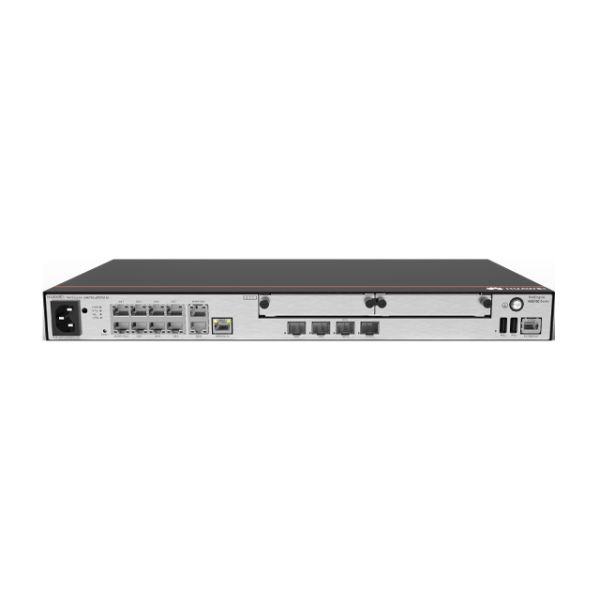

Product Appearance
Huawei AR6710-L8T3TS1X2 Network Switch with 2*GE Combo WAN 1*10GE(SFP+) WAN and 8*GE LAN Ports
Product Details
Physical Structure
Huawei AR6710-L8T3TS1X2 Network Switch with 2*GE Combo WAN 1*10GE(SFP+) WAN and 8*GE LAN Ports

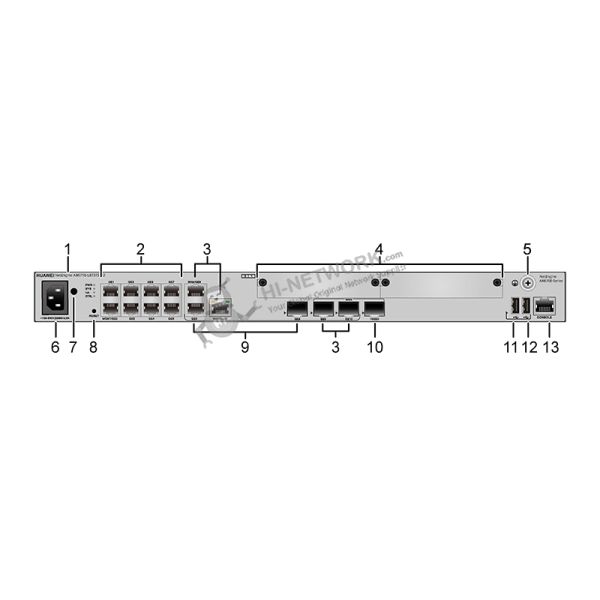

Interface Layout
(1) Product model silkscreen (8) RESET button
(2) LAN interfaces: eight GE electrical interfaces (GE0 to GE7) (9) LAN interface: GE combo interface (GE8)
(3) WAN interfaces: two GE combo interfaces (GE9 and GE10) (10) WAN interface: one 10GE optical interface (10GE0)
(4) Two SIC slots (11) USB 2.0 interface (host)
(5) Ground point (12) USB 2.0 interface (host)
(6) AC power socket (13) Console interface
(7) Jack for power cable locking strap
Indicator Panel
Huawei AR6710-L8T3TS1X2 Network Switch with 2*GE Combo WAN 1*10GE(SFP+) WAN and 8*GE LAN Ports
(1) From top to bottom: PWR indicator SYS indicator HA indicator CTRL indicator (5) GE optical interface indicator (WAN)
(2) GE electrical interface indicators (LAN) (6) 10GE optical interface indicator (WAN)
(3) GE electrical interface indicators (WAN) (7) ACT (USB) indicator
(4) GE optical interface indicator (LAN)
Technical Specifications
Specification Details
Model AR6710-L8T3TS1X2
Part Number 02354PUH
Description 2*GE combo WAN, 1*10GE(SFP+) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB 2.0, 2*SIC
Installation Type Rack, Work bench, Against the wall
Chassis Height [U] 1 U
Dimensions without Packaging Basic: 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.)
Maximum: 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.4 in. x 8.87 in.)
Dimensions with Packaging 90 mm x 570 mm x 390 mm (3.54 in. x 22.44 in. x 15.35 in.)
Weight with Packaging 4.6 kg (10.12 lb)
Weight without Packaging 3.2 kg (7.04 lb)
CPU 1.4 GHz, quad-core
Memory 4 GB
NAND Flash 2 GB
Console Port RJ45
RTC Supported
LAN Ports 8 x GE electrical, 1 x GE combo
WAN Ports 1 x 10GE SFP+, 2 x GE combo
Service Board Slots 2
SIC Slots (default/maximum) 2/2
WSIC Slots (default/maximum) 0/1
IP Rating IP20
MTBF 41.89 years
MTTR 2 hours
Availability 0.9999945502
Typical Power Consumption 27 W
Maximum Power Consumption 33 W
Power Supply Mode AC built-in
Number of Power Modules 1
Rated Input Voltage 100 V to 240 V, 50 Hz/60 Hz
Input Voltage Range 90 V to 264 V, 47 Hz to 63 Hz
Maximum Input Current 2 A
Maximum Output Power 70 W
Heat Dissipation Mode Air cooling
Airflow Left-to-right airflow
Noise at Normal Temperature 45.3 dB(A)
Long-term Operating Temperature 0°C to 45°C (32°F to 113°F)
Long-term Operating Relative Humidity 5% RH to 95% RH, non-condensing
Long-term Operating Altitude < 5000 m (16404.2 ft.)
Storage Temperature -40°C to +70°C (-40°F to +158°F)
Overtemperature Alarm Supported
