Huawei CE9855-32DQ-B CloudEngine 9800 Series Data Center Switch with 32*400GE QSFP-DD Ports and 25.6 Tbps Switching Capacity in 1U Chassis
Huawei CE9855-32DQ-B CloudEngine 9800 Series Data Center Switch with 32*400GE QSFP-DD Ports and 25.6 Tbps Switching Capacity in 1U Chassis
Huawei CE9855-32DQ-B CloudEngine 9800 Series Data Center Switch with 32*400GE QSFP-DD Ports and 25.6 Tbps Switching Capacity in 1U Chassis
Huawei CE9855-32DQ-B CloudEngine 9800 Series Data Center Switch with 32*400GE QSFP-DD Ports and 25.6 Tbps Switching Capacity in 1U Chassis
Huawei CE9855-32DQ-B CloudEngine 9800 Series Data Center Switch with 32*400GE QSFP-DD Ports and 25.6 Tbps Switching Capacity in 1U Chassis
Huawei CE9855-32DQ-B CloudEngine 9800 Series Data Center Switch with 32*400GE QSFP-DD Ports and 25.6 Tbps Switching Capacity in 1U Chassis
Huawei CE9855-32DQ-B CloudEngine 9800 Series Data Center Switch with 32*400GE QSFP-DD Ports and 25.6 Tbps Switching Capacity in 1U Chassis
Huawei CE9855-32DQ-B CloudEngine 9800 Series Data Center Switch with 32*400GE QSFP-DD Ports and 25.6 Tbps Switching Capacity in 1U Chassis
Specifications
Brand Name :
Huawei
Model Number :
CE9855-32DQ-B
MOQ :
1
Price :
$4550
Payment Terms :
D/P,T/T,Western Union
Supply Ability :
230
Delivery Time :
3-5 work days
Description :
CE9855-32DQ switch (32*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Intake)
Condition :
New Original; In Stock
Description
Huawei CE9855-32DQ-B Data Center Switch
CloudEngine 9800 series switches are high-performance 100G Ethernet switches designed for data center networks, featuring high-density 100 GE ports and low latency. Compatible with CloudEngine 16800, 12800, 8800, 6800, and 5800 series, these switches build elastic, virtualized, high-quality fabrics for demanding cloud-computing data center requirements.
Quick Specifications
Model CE9855-32DQ-B
Part Number 02355YSF
Description CE9855-32DQ switch (32*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Intake)
Memory 16 GB
Flash Memory 128 MB
Static Power Consumption 453 W
Static Heat Dissipation 1546 BTU/hour

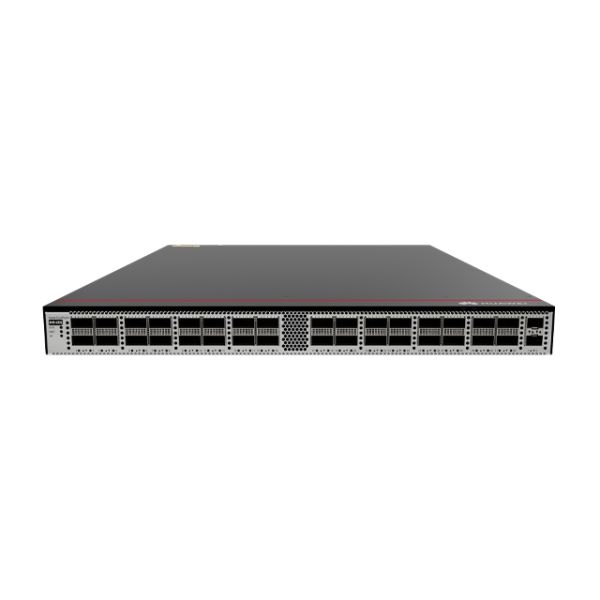

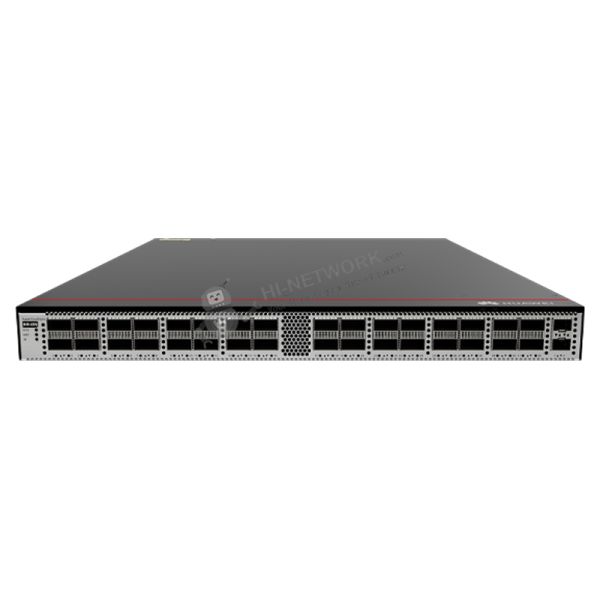

Product Appearance
Huawei CE9855-32DQ-B CloudEngine 9800 Series Data Center Switch with 32*400GE QSFP-DD Ports and 25.6 Tbps Switching Capacity in 1U Chassis

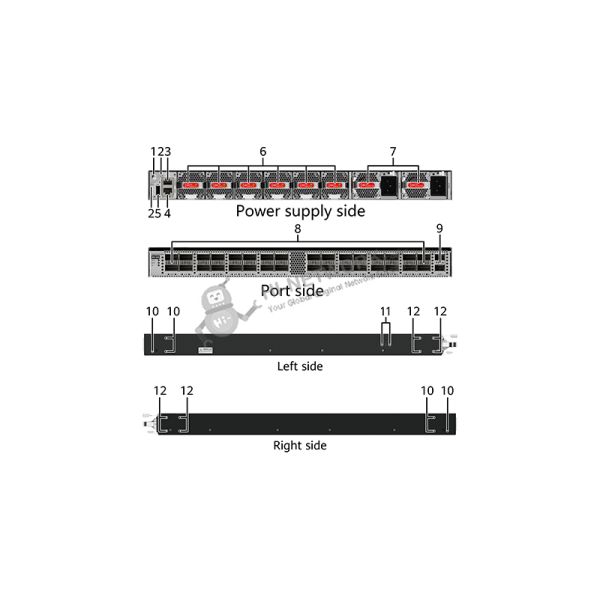

Physical Structure
Huawei CE9855-32DQ-B CloudEngine 9800 Series Data Center Switch with 32*400GE QSFP-DD Ports and 25.6 Tbps Switching Capacity in 1U Chassis
Structure Components:
(1) Ground screw | (7) Two Power supply slots
(2) Equipment serial number (ESN) and MAC address | (8) Thirty-two 400GE QSFP-DD Ethernet optical ports
(3) Console port | (9) Two 10GE SFP+ Ethernet optical ports
(4) ETH management port (RJ45) | (10) Three port-side mounting holes for mounting brackets
(5) USB port | (11) Equipotential bonding
(6) Six Fan slots | (12) Four power-supply-side mounting holes for mounting brackets

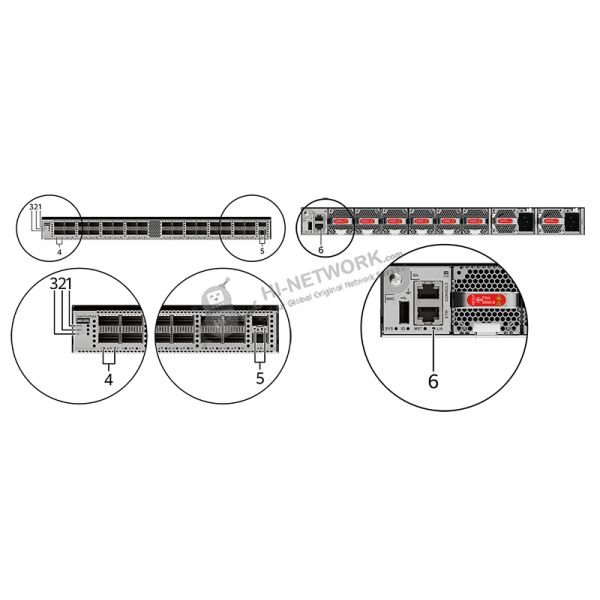

Indicator Panel
Huawei CE9855-32DQ-B CloudEngine 9800 Series Data Center Switch with 32*400GE QSFP-DD Ports and 25.6 Tbps Switching Capacity in 1U Chassis
Indicator Functions:
(1) System status indicator | (4) Service port indicator (400GE optical port)
(2) Stack master/slave indicator | (5) Service port indicator (10GE optical port)
(3) ID indicator | (6) ETH management port indicator
Technical Specifications
Dimensions with Packaging
260 mm x 590 mm x 790 mm (10.24 in. x 23.23 in. x 31.10 in.)
Dimensions without Packaging
Basic: 43.6 mm x 442 mm x 600 mm
Maximum: 43.6 mm x 442 mm x 633.4 mm
Weight
Without packaging: 9.94 kg
Full configuration: 12.78 kg
With packaging: 15.16 kg
Chassis Height
1 U
Switching Capacity
25.6 Tbps
Processor
16-core, 2 GHz
Port Configuration
32 x 400GE QSFP-DD + 2 x 10GE SFP+
Power Supply
Dual modules with 1+1 redundancy
Cooling System
6 fan modules with 5+1 redundancy
Operating Temperature
0°C to 40°C (32°F to 104°F)
MTBF
26.01 years
Availability
0.9999934176
