S5735-L24T4X-A1 Huawei 24 Port Cloud Switch Ethernet Networking 10/100/1000BASE-T
S5735-L24T4X-A1 Huawei 24 Port Cloud Switch Ethernet Networking 10/100/1000BASE-T
S5735-L24T4X-A1 Huawei 24 Port Cloud Switch Ethernet Networking 10/100/1000BASE-T
S5735-L24T4X-A1 Huawei 24 Port Cloud Switch Ethernet Networking 10/100/1000BASE-T
Specifications
Brand Name :
Huawei
Model Number :
S5735S-L24T4X-A1
MOQ :
1
Price :
$257
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
510pcs
Delivery Time :
3-5 days
Description :
S5735S-L24T4X-A1 (24*10/100/1000BASE-T ports, 4*XGE SFP+ ports, AC power)
Condition :
Original New; In stock
Description

Huawei Switch S5735S-L24T4X-A1 (98011310)


Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.



Quick Specification

Table 1 shows the Quick Specification.
















Model

S5735S-L24T4X-A1

Part Number

98011310

Description

S5735S-L24T4X-A1 (24*10/100/1000BASE-T ports, 4*XGE SFP+ ports, AC power)

First supported version

V200R020C10

Memory

512 MB

Flash memory

512 MB

PoE

Not supported

Weight with packaging [kg(lb)]

3.34

Dimensions without packaging (H x W x D) [mm(in.)]

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)

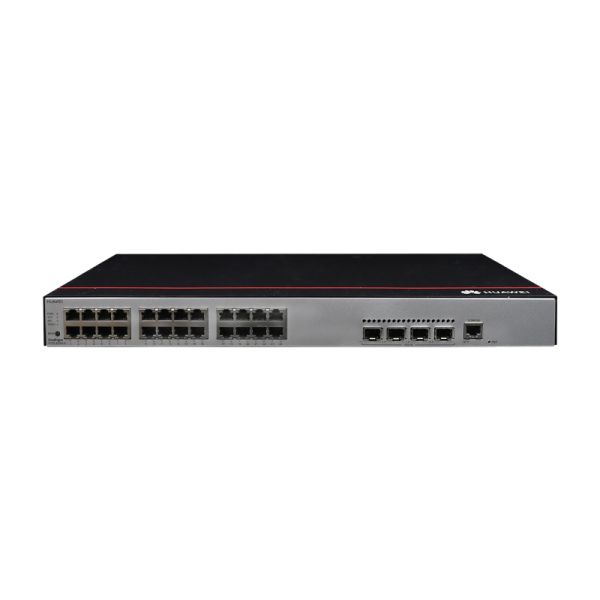

Figure 1 shows the appearance of S5735S-L24T4X-A1.

S5735-L24T4X-A1 Huawei 24 Port Cloud Switch Ethernet Networking 10/100/1000BASE-T


Product Details

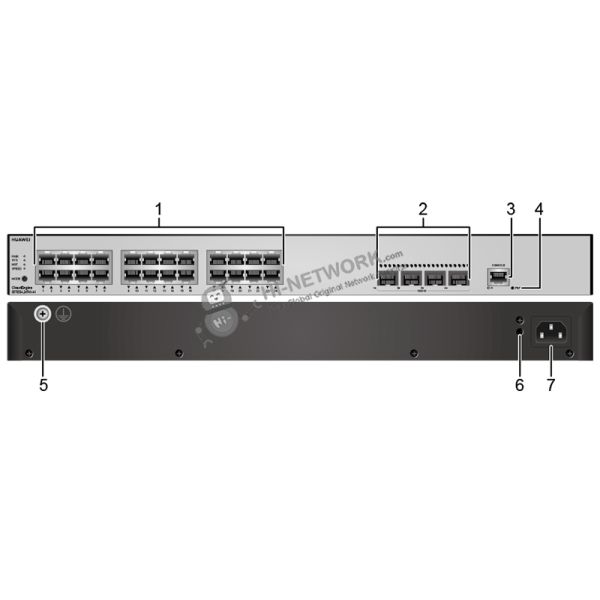

Figure 2 shows the structure of S5735S-L24T4X-A1.

S5735-L24T4X-A1 Huawei 24 Port Cloud Switch Ethernet Networking 10/100/1000BASE-T


Note:




(1)

Twenty-four 10/100/1000BASE-T ports

(5)

Ground screw

(2)

Four 10GE SFP+ ports

(6)

Jack for AC power cable locking strap

(3)

One console port

(7)

AC socket

(4)

One PNP button
