Huawei 10G SFP Switches S6720S-26Q-LI-24S-AC with Two 40GE QSFP+ ports
Huawei 10G SFP Switches S6720S-26Q-LI-24S-AC with Two 40GE QSFP+ ports
Huawei 10G SFP Switches S6720S-26Q-LI-24S-AC with Two 40GE QSFP+ ports
Huawei 10G SFP Switches S6720S-26Q-LI-24S-AC with Two 40GE QSFP+ ports
Specifications
Brand Name :
Huawei
Model Number :
S6720S-26Q-LI-24S-AC
MOQ :
1
Price :
$1853
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
460pcs
Delivery Time :
3-5 days
Description :
S6720S-26Q-LI-24S-AC(24 10 Gig SFP+,2 40 Gig QSFP+,AC 110/220V)
Condition :
Original New; In stock
Description

Huawei Switch S6720S-26Q-LI-24S-AC (98010685)


The S6720-LI series switches (S6720-LI) are next-generation simplified 10GE fixed switches and can be used as 10GE access switches on campus networks and data center networks. The S6720-LI provides line-rate 10GE access ports and 40GE uplink ports. In addition, the S6720-LI delivers a wide variety of services, comprehensive security control policies, and various QoS features to help customers build scalable, reliable, manageable, and secure campus and data center networks.


Quick Specification:

Model

S6720S-26Q-LI-24S-AC

Part Number

98010685

Memory

1 GB

Flash memory

512 MB in total. To view the available flash memory size, run the display version command.

PoE

Not supported

Weight with packaging [kg(lb)]

4.2 kg (9.26 lb)

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 225.0 mm (1.72 in. x 17.4 in. x 8.86 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 234.4 mm (1.72 in. x 17.4 in. x 9.23 in.)

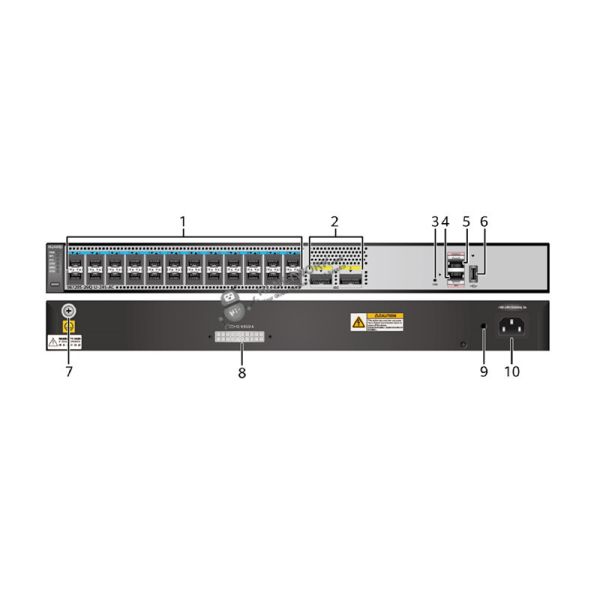

Appearance:

Huawei 10G SFP Switches S6720S-26Q-LI-24S-AC with Two 40GE QSFP+ ports

①

Twenty-four 10GE SFP+ ports

②

Two 40GE QSFP+ ports

③

One PNP button

④

One ETH management port

⑤

One console port

⑥

One USB port

⑦

Ground screw

⑧

RPS socket

⑨

Jack for AC power cable locking strap

⑩

AC socket


The Accessories for S6720S-26Q-LI-24S-AC

Recommended Products:


Model

Description

eSFP-GE-ZX100-SM1550

Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC)

SFP-GE-LX-SM1310-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC)

SFP-GE-LX-SM1490-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC)

LE2MGSC40DE0

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC)

LE2MGSC40ED0

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC)

SFP-GE-ZBXD1

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC)

SFP-GE-ZBXU1

Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC)

SFP-GE-BXU1-SC

1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC)

CWDM-SFPGE-1471

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1471nm,80km,LC)

CWDM-SFPGE-1491

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1491nm,80km,LC)

DWDM-SFPGE-1560-61

DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1560.61nm,120km,LC)

SFP-1000BaseT

Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)

SFP-10G-USR

10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)

OMXD30000

Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)

SFP-10G-iLR

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC)

OSX010000

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)

OSX040N01

Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC)

SFP-10G-ER-1310

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC)

SFP-10G-ZR

10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC)

SFP-10G-BXU1

10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1270nm/RX1330nm,10km,LC)


Compare to Similar Items:

Product Code

S6720-26Q-LI-24S-AC

S6720S-26Q-LI-24S-AC

Fixed ports

24x10GE port, 2x40GE port

24x10GE port, 2x40GE port

Dimensions (W x D x H, mm)

420 x 220 x 43.6

420 x 220 x 43.6

Chassis height(U)

1U

1U

CPU Frequency

1 GHz

1 GHz

CPU Cores

2

2

Memory (RAM)

1 GB

1 GB

Rated voltage range

AC: 100 V AC to 240 V AC, 50/60 Hz

AC: 100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

AC: 90 V AC to 264 V AC; 47-63 Hz

AC: 90 V AC to 264 V AC; 47-63 Hz

Maximum input current

3 A

3 A

Minimum power consumption

100.2 W

100.2 W
