S6720-SI Series 150W Huawei Network Switch 40GE QSFP+ For Data Center
S6720-SI Series 150W Huawei Network Switch 40GE QSFP+ For Data Center
S6720-SI Series 150W Huawei Network Switch 40GE QSFP+ For Data Center
S6720-SI Series 150W Huawei Network Switch 40GE QSFP+ For Data Center
Specifications
Brand Name :
Huawei
Model Number :
S6720S-26Q-SI-24S-AC
MOQ :
1
Price :
$1630
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
450pcs
Delivery Time :
3-5 days
Description :
S6720S-26Q-SI-24S Bundle(24 10 Gig SFP+,2 40 Gig QSFP+,with 150W AC power supply)
Condition :
Original New; In stock
Description

Huawei Switch S6720S-26Q-SI-24S-AC (98010691)


Huawei S6720S-26Q-SI-24S-AC is the Huawei S6720-SI series switch S6720S-26Q-SI-24S Bundle, 24 10 Gig SFP+, 2 40 Gig QSFP+ and 150W AC power supply. Huawei S6720-SI series switches are Huawei-developed next-generation multigigabit 10GE fixed switches. The S6720-SI can provide high-speed wireless access, and access for 10GE servers in data centers or function as access/aggregation switches on a campus network. The S6720-SI is one of the multigigabit fixed switches with the highest performance in the industry, providing line-rate multigigabit 100M/1G/2.5G/5G/10G access ports and 40GE uplink ports. It can be used to provide high-speed access for APs and 10 Gbit/s access to high-density servers or function as a core/aggregation switch on a campus network to provide 40 Gbit/s rate. In addition, S6720-SI provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure campus and data center networks.


Quick Specification:

Model

S6720S-26Q-SI-24S-AC

Part Number

98010691

Memory

1 GB

Flash memory

512 MB in total. To view the available flash memory size, run the display version command.

PoE

Not supported

Weight (including package)

8.9 kg (19.62 lb)

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.)

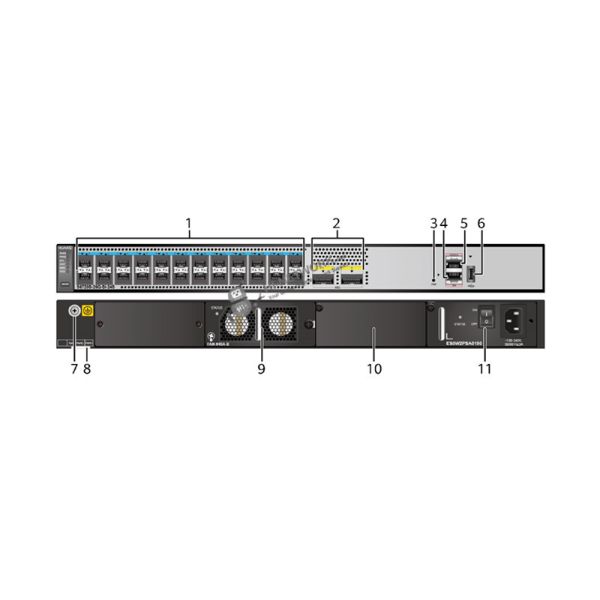

Appearance:

S6720-SI Series 150W Huawei Network Switch 40GE QSFP+ For Data Center


①

Twenty-four 10GE SFP+ ports

②

Two 40GE QSFP+ ports

③

One PNP button

④

One ETH management port

⑤

One console port

⑥

One USB port

⑦

Ground screw

⑧

ESN label

⑨

Fan slot

⑩

Power module slot 2

⑪

Power module slot 1

The Accessories for S6720S-26Q-SI-24S-AC

Recommended Products:


Model

Description

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

eSFP-GE-ZX100-SM1550

eSFP, GE, Single-mode Module (1550nm, 100km, LC)

SFP-GE-LX-SM1310-BIDI

BiDi Transceiver, eSFP, Tx1310nm/Rx1490nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km

SFP-GE-LX-SM1490-BIDI

BiDi Transceiver, eSFP, Tx1490nm/Rx1310nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km

SFP-GE-ZBXD1

Huawei Optical Transceiver SFP-GE-ZBXD1, eSFP, GE, BIDI Single-mode Module (1570nm (Tx)/1490nm (Rx), 80km, LC)

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)

SFP-10G-ILR

Optical Transceiver, SFP+, 9.8G, Single-mode Module (1310nm, 1.4km, LC)

SFP-10G-ER-1310

Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 40km, LC)

SFP-10G-ZR

Huawei 10GBase-ZR Optical Transceiver, SFP+, 10G, Single-mode Module (1550nm, 80km, LC)

QSFP-40G-SR4

40GBASE-SR4 QSFP Transceiver Module with MPO Connector

QSFP-40G-iSR4

40GBase-iSR4 Optical Transceiver, QSFP+, 40G, Multi-mode (850nm, 0.15km, MPO) (Connect to four SFP+ Optical Transceiver)

QSFP-40G-eSR4

40GBase-eSR4 Optical Transceiver, QSFP+, 40G, Multi-mode (850nm, 0.3km, MPO) (Connect to four SFP+ Optical Transceiver)

Compare to Similar Items:


Model

S6720-32C-SI-AC

S6720S-26Q-SI-24S-AC

Ports

24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 10 GE SFP+

24 x 10 GE SFP+, uplink 2 x 40 GE QSFP+

Extended Slot

One extended slot

N/A

Power

Double pluggable power supplies, AC power supply

Double pluggable power supplies, AC power supply

Forwarding performance

240 Mpps

240 Mpps

Switching capacity

2.56 Tbit/s

2.56 Tbit/s
