S6720S-16X-LI-16S-AC Huawei 10G Switch Data Center Switches S6720-LI Series
S6720S-16X-LI-16S-AC Huawei 10G Switch Data Center Switches S6720-LI Series
S6720S-16X-LI-16S-AC Huawei 10G Switch Data Center Switches S6720-LI Series
S6720S-16X-LI-16S-AC Huawei 10G Switch Data Center Switches S6720-LI Series
Specifications
Brand Name :
Huawei
Model Number :
S6720S-16X-LI-16S-AC
MOQ :
1
Price :
＄1523
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
470pcs
Delivery Time :
3-5 days
Description :
S6720S-16X-LI-16S-AC(16 10 Gig SFP+,AC 110/220V)
Condition :
Original New; In stock
Description

Huawei Switch S6720S-16X-LI-16S-AC (98010688)


Huawei S6720S-16X-LI-16S-AC is the Huawei S6720-LI series switch, providing 16 10 Gig SFP+ and AC 110/220V. The S6720-LI series switches (S6720-LI) are next-generation simplified 10GE fixed switches and can be used as 10GE access switches on campus networks and data center networks. The S6720-LI provides line-rate 10GE access ports and 40GE uplink ports. In addition, the S6720-LI delivers a wide variety of services, comprehensive security control policies, and various QoS features to help customers build scalable, reliable, manageable, and secure campus and data center networks.


Quick Specification:

Model

S6720S-16X-LI-16S-AC

Part Number

98010688

Memory

1 GB

Flash memory

512 MB in total. To view the available flash memory size, run the display version command.

PoE

Not supported

Weight (including package)

4.1 kg (9.04 lb)

Dimensions (H x W x D)

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 225.0 mm (1.72 in. x 17.4 in. x 8.86 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 234.4 mm (1.72 in. x 17.4 in. x 9.23 in.)

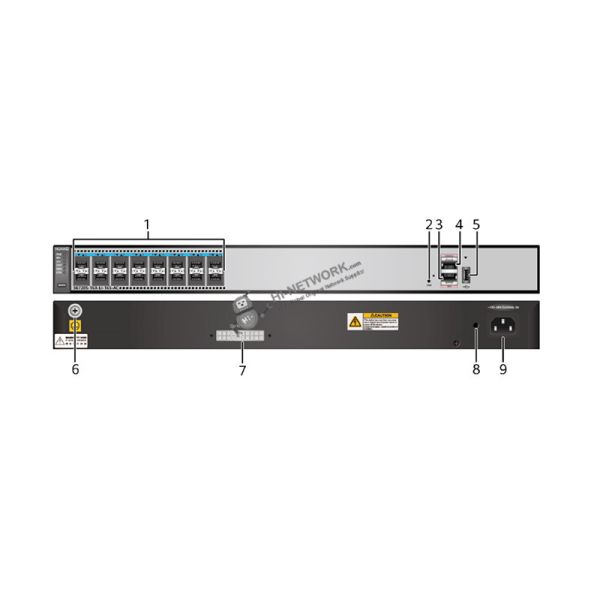

Appearance:

S6720S-16X-LI-16S-AC Huawei 10G Switch Data Center Switches S6720-LI Series

①

Sixteen 10GE SFP+ ports

②

One PNP button

③

One ETH management port

④

One console port

⑤

One USB port

⑥

Ground screw

⑦

RPS socket

⑧

Jack for AC power cable locking strap

⑨

AC socket


The Accessories for S6720S-16X-LI-16S-AC

Recommended Products:


Model

Description

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)

eSFP-GE-ZX100-SM1550

eSFP, GE, Single-mode Module (1550nm, 100km, LC)

SFP-GE-LX-SM1310-BIDI

BiDi Transceiver, eSFP, Tx1310nm/Rx1490nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km

SFP-GE-LX-SM1490-BIDI

BiDi Transceiver, eSFP, Tx1490nm/Rx1310nm, 1.25Gb/s, -9dBm, -3dBm, -19.5dBm, LC, SM, 10km

SFP-GE-ZBXD1

Huawei Optical Transceiver SFP-GE-ZBXD1, eSFP, GE, BIDI Single-mode Module (1570nm (Tx)/1490nm (Rx), 80km, LC)

Compare to Similar Items:


Model

S6720S-16X-LI-16S-AC

S6720S-26Q-LI-24S-AC

Ports

16 x 10 GE SFP+ ports

24 x 10 GE SFP+ ports, 2 x 40 GE QSFP+ ports

Power

Built-in AC power supply and Redundant Power Supply (RPS)

Built-in AC power supply and RPS

Packet forwarding rate

240 Mpps

240 Mpps

Switching capacity

1.28 Tbit/s

1.28 Tbit/s
