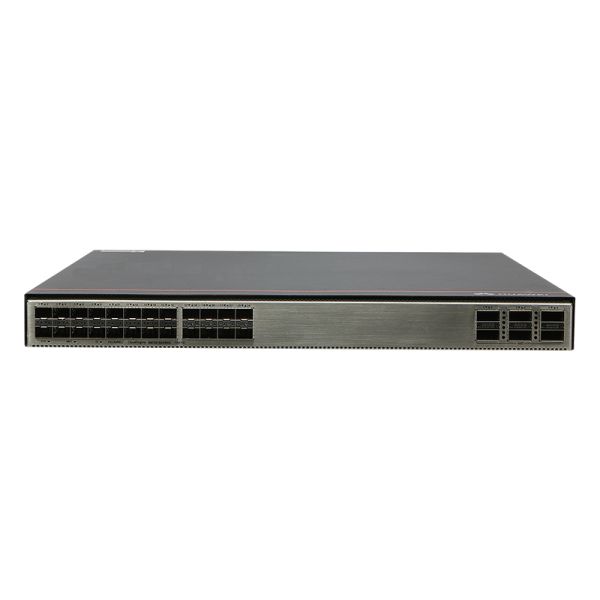

Huawei Network Switch S6730-S24X6Q with 24*10GE SFP+ ports, 6*40GE QSFP+ ports
Huawei Network Switch S6730-S24X6Q with 24*10GE SFP+ ports, 6*40GE QSFP+ ports
Huawei Network Switch S6730-S24X6Q with 24*10GE SFP+ ports, 6*40GE QSFP+ ports
Huawei Network Switch S6730-S24X6Q with 24*10GE SFP+ ports, 6*40GE QSFP+ ports
Specifications
Brand Name :
Huawei
Model Number :
S6730-S24X6Q
MOQ :
1
Price :
$1214
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
420pcs
Delivery Time :
3-5 days
Description :
S6730-S24X6Q (24*10GE SFP+ ports, 6*40GE QSFP+ ports, without power module)
Condition :
Original New; In stock
Description

Huawei CloudEngine Switch S6730-S24X6Q (02353AJW/-001/-003/-004)


CloudEngine S6730-S series full-featured 10 GE switches are Huawei's new generation fixed switches ,to provide 10 GE downlink ports as well as 40 GE uplink ports.
CloudEngine S6730-S can be used to provide high-speed access for 10 Gbit/s access to high-density servers or function as a core/aggregation switch on a campus network to provide 40 Gbit/s rate. In addition, CloudEngine S6730-S provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable,reliable, and secure campus and data center networks.


Quick Specification:

Model

S6730-S24X6Q

Part Number

02353AJW/02353AJW-001/02353AJW-003/02353AJW-004

Memory

4 GB

Flash memory

2 GB in total. To view the available flash memory size, run the display version command.

PoE

Not supported

Weight with packaging [kg(lb)]

8.9

Weight without packaging [kg(lb)]

5.62 (12.39)

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm


Difference between Part Numbers:


Model

S6730-S24X6Q

Part Number

02353AJW

02353AJW-001

02353AJW-003

02353AJW-004

Remarks

/

Some models cannot be downgraded due to component upgrade. Therefore, you are advised to run the display system-software information command (supported in V200R021C00 and later versions) to check the software versions supported by the device before performing a downgrade.

/

/

Heat dissipation mode

Heat dissipation with fan, intelligent fan speed adjustment

Heat dissipation with fan, intelligent fan speed adjustment

Air cooling for heat dissipation, intelligent fan speed adjustment

Air cooling for heat dissipation, intelligent fan speed adjustment

Input voltage range [V]

- AC input: 90–290 V AC; 45–65 Hz

- High-voltage DC input: 190 V DC to 290 V DC

- DC input: -38.4 V DC to -72 V DC

- AC input: 90–290 V AC; 45–65 Hz

- High-voltage DC input: 190 V DC to 290 V DC

- DC input: -38.4 V DC to -72 V DC

- AC input: 90–290 V AC; 45–65 Hz

- High-voltage DC input: 190 V DC to 290 V DC

- DC input: -38.4 V DC to -72 V DC

- AC input: 90 V AC to 290 V AC; 45–65 Hz

- High-voltage DC input: 190 V DC to 290 V DC

- DC input: -38.4 V DC to -72 V DC

Maximum input current [A]

The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.

The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.

The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.

The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

Long-term operating temperature [°C(°F)]

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

Long-term operating relative humidity [RH]

5% to 95%, noncondensing

5% to 95%, noncondensing

5% RH to 95% RH (non-condensing)

5% RH to 95% RH (non-condensing)


Appearance:

Huawei Network Switch S6730-S24X6Q with 24*10GE SFP+ ports, 6*40GE QSFP+ ports


①

Twenty-four 10GE SFP+ ports

Applicable modules and cables:

· GE optical module

· GE-CWDM optical module

· GE-DWDM optical module

· GE copper module

· 10GE SFP+ optical module (OSXD22N00 not supported)

· 10GE-CWDM optical module

· 10GE-DWDM optical module

· 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables

· 3 m and 10 m SFP+ AOC cables

0.5 m and 1.5 m SFP+ dedicated stack cables (supported by the last 16 SFP+ ports and used only for zero-configuration stacking)

②

Six 40GE QSFP+ optical ports

Applicable modules and cables:

· QSFP+ optical module

· 1 m, 3 m, and 5 m QSFP+ to QSFP+ high-speed copper cables

· 10 m QSFP+ to QSFP+ AOC cable

2 m QSFP28 dedicated stack cable (supported in V200R020C10 and later versions)

③

Ground screw

④

SSD card slot

⑤

One console port

⑥

One ETH management port

⑦

One USB port

⑧

One PNP button

⑨

Fan module slot 1

⑩

Fan module slot 2

⑪

Fan module slot 3

⑫

Fan module slot 4

⑬

Power module slot 1

⑭

Power module slot 2


The Accessories for S6730-S24X6Q

Recommended Elements:

Models

Descriptions

eSFP-GE-SX-MM850

Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC)

S-SFP-GE-LH80-SM1550

Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC)

eSFP-GE-ZX100-SM1550

Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC)

SFP-GE-LX-SM1310-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC)

SFP-GE-LX-SM1490-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC)

LE2MGSC40DE0

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC)

LE2MGSC40ED0

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC)

SFP-GE-ZBXD1

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC)

SFP-GE-ZBXU1

Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC)

SFP-GE-BXU1-SC

1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC)

CWDM-SFPGE-1471

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1471nm,80km,LC)

CWDM-SFPGE-1491

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1491nm,80km,LC)

CWDM-SFPGE-1511

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1511nm,80km,LC)

CWDM-SFPGE-1531

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1531nm,80km,LC)

CWDM-SFPGE-1551

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1551nm,80km,LC)

CWDM-SFPGE-1571

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1571nm,80km,LC)

CWDM-SFPGE-1591

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1591nm,80km,LC)

CWDM-SFPGE-1611

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1611nm,80km,LC)

DWDM-SFPGE-1560-61

DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1560.61nm,120km,LC)

SFP-1000BaseT

Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)

SFP-10G-USR

10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)

OMXD30000

Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)

SFP-10G-iLR

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC)

OSX010000

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)

OSX040N01

Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC)

SFP-10G-ER-1310

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC)

SFP-10G-ZR

10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC)

SFP-10G-BXU1

10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1270nm/RX1330nm,10km,LC)

SFP-10G-BXD1

10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1330nm/RX1270nm,10km,LC)

SFP-10G-ER-SM1330-BIDI

Optical Transceiver,SFP+,10G,BIDI Single-mode Module(TX 1330nm/RX 1270nm,40km,LC)

SFP-10G-ER-SM1270-BIDI

Optical Transceiver,SFP+,10G,BIDI Single-mode Module(TX 1270nm/RX 1330nm,40km,LC)

SFP-10G-ZCW1471

Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1471nm,70km,LC)

SFP-10G-ZCW1491

Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1491nm,70km,LC)

SFP-10G-ZCW1511

Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1511nm,70km,LC)

SFP-10G-ZCW1531

Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1531nm,70km,LC)

SFP-10G-ZCW1551

Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1551nm,70km,LC)

SFP-10G-ZCW1571

Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1571nm,70km,LC)

SFP-10G-ZCW1591

Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1591nm,70km,LC)


SFP-10G-ZCW1611

Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1611nm,70km,LC)

QSFP-40G-SR4

40GBase-SR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)

QSFP-40G-iSR4

40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver)

QSFP-40G-eSR4

40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver)

QSFP-40G-iSM4

40GBase-iSM4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,1.4km,MPO)(Connect to four SFP+ Optical Transceiver)

QSFP-40G-eSM4

40GBase-eSM4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,10km,MPO)(Connect to four SFP+ Optical Transceiver)


Compare to Similar Items:

Models

S6720-30C-EI-24S-AC

S6730-S24X6Q

Switching Capacity

2.56 Tbit/s

960Gbps/2.4Tbps

Forwarding Performance

720 Mpps

480 Mpps

Fixed Ports

24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports

24 x 10 Gig SFP+, 6 x 40 Gig QSFP+

Power Supply

AC Power Supply

AC/DC Power Supply

Dimensions (W x D x H)

442 mm x 420 mm x 44.4 mm

442 mm x 420 mm x 43.6 mm

Input Voltage

AC:Rated voltage range: 100V to 240V, 50 Hz/60 Hz

Maximum voltage range: 90V to 264V, 50 Hz/60 Hz

AC Power

• Rated AC voltage: 100V to 240V AC; 50/60 Hz

• Max. AC voltage: 90V to 290V AC; 45–65 Hz

DC Power

• Rated DC voltage: –48V～–60V

• Max. DC voltage:-38.4V DC～-72V DC
