Enterprise Grade Managed Huawei CloudEngine S6730-H48X6C Switch 48x10GE SFP
Enterprise Grade Managed Huawei CloudEngine S6730-H48X6C Switch 48x10GE SFP
Enterprise Grade Managed Huawei CloudEngine S6730-H48X6C Switch 48x10GE SFP
Enterprise Grade Managed Huawei CloudEngine S6730-H48X6C Switch 48x10GE SFP
Specifications
Brand Name :
Huawei
Model Number :
S6730-H48X6C Bundle
MOQ :
1
Price :
$2130
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
400pcs
Delivery Time :
3-5 days
Description :
S6730-H48X6C Bundle (48*10GE SFP+ ports, 6*40GE/100GE QSFP28 ports, with license, without power module)
Condition :
Original New; In stock
Description

Huawei CloudEngine Switch S6730-H48X6C (Bundle) (02353FWL/-003/-005/-006)


Huawei CloudEngine S6730-H series full-featured 10 GE switches are Huawei's new-generation fixed switches ,to provide 10 GE downlink ports as well as 100 GE uplink ports.


Quick Specification:


Model

S6730-H48X6C

Part Number

Bundle version: 02353FWL/02353FWL-003/02353FWL-005/02353FWL-006

Without bundle: 02352FSF/02352FSF -003/02352FSF-007/02352FSF-009/02352FSF-011

Memory

4 GB

Flash memory

2 GB in total. To view the available flash memory size, run the display version command.

PoE

Not supported

Weight with packaging [kg(lb)]

9.2 (20.28)

Weight without packaging [kg(lb)]

5.84 (12.87)

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm


Difference between Part Numbers:


Model

S6730-H48X6C

Part Number

02353FWL

02353FWL-003

02353FWL-005

02353FWL-006

Maximum input current [A]

The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.

The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.

The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

Long-term operating temperature [°C(°F)]

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

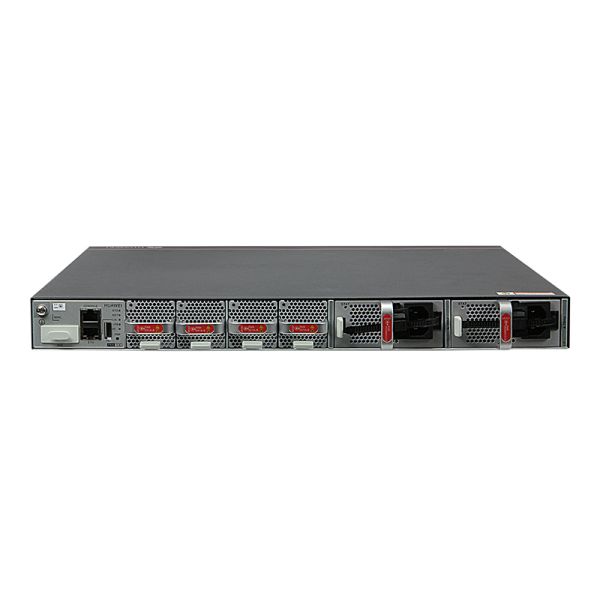

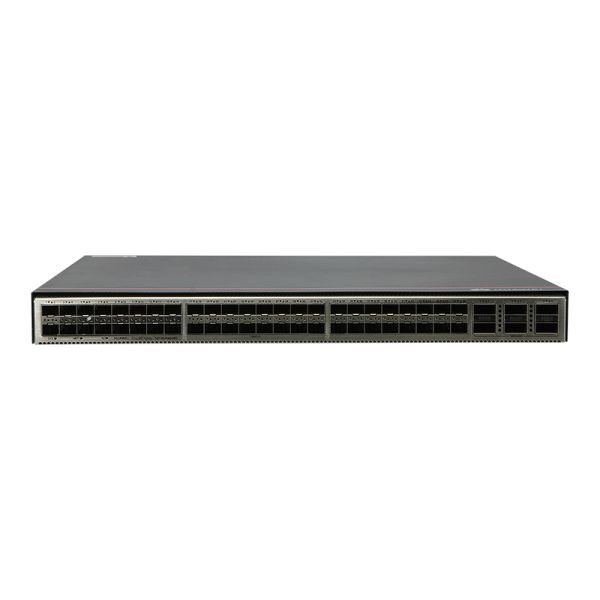

Appearance:

Enterprise Grade Managed Huawei CloudEngine S6730-H48X6C Switch 48x10GE SFP


①

Forty-eight 10GE SFP+ ports

②

Six 40GE/100GE QSFP28 optical ports

③

Ground screw

④

SSD card slot

⑤

One console port

⑥

One ETH management port

⑦

One USB port

⑧

One PNP button

⑨

Fan module slot 1

⑩

Fan module slot 2

⑪

Fan module slot 3

⑫

Fan module slot 4

⑬

Power module slot 1

⑭

Power module slot 2


The Accessories for S6730-H48X6C

Recommended Products:


Models

Descriptions

eSFP-GE-SX-MM850

Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC)

eSFP-GE-ZX100-SM1550

Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC)

SFP-GE-LX-SM1310-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC)

SFP-GE-LX-SM1490-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC)

LE2MGSC40DE0

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC)

LE2MGSC40ED0

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC)

SFP-GE-ZBXD1

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC)

SFP-GE-ZBXU1

Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC)

SFP-GE-BXU1-SC

1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC)

CWDM-SFPGE-1551

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1551nm,80km,LC)

CWDM-SFPGE-1571

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1571nm,80km,LC)

CWDM-SFPGE-1591

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1591nm,80km,LC)

DWDM-SFPGE-1560-61

DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1560.61nm,120km,LC)

SFP-1000BaseT

Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)

SFP-10G-USR

10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)

OMXD30000

Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)

SFP-10G-iLR

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC)

OSX010000

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)

OSX040N01

Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC)

SFP-10G-ER-1310

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC)

SFP-10G-ZR

10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC)

SFP-10G-ZCW1551

Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1551nm,70km,LC)

SFP-10G-ZCW1571

Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1571nm,70km,LC)

SFP-10G-ZCW1591

Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1591nm,70km,LC)

SFP-10G-ZCW1611

Optical Transceiver,SFP+,10G,Single-mode Module(CWDM,1611nm,70km,LC)

QSFP-40G-SR4

40GBase-SR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)

QSFP-40G-iSR4

40GBase-iSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.15km,MPO)(Connect to four SFP+ Optical Transceiver)

QSFP-40G-eSR4

40GBase-eSR4 Optical Transceiver,QSFP+,40G,Multi-mode (850nm,0.3km,MPO)(Connect to four SFP+ Optical Transceiver)


Compare to Similar Items:

Models

S6730-H24X6C

S6730-H48X6C

Fixed ports

24 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28

48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

442 mm x 420 mm x 43.6 mm

Chassis height(U)

1U

1U

Input voltage

• AC Power

- Rated AC voltage: 100V to 240V AC; 50/60 Hz

- Max. AC voltage: 90V to 290V AC; 45–65 Hz

• DC Power

- Rated DC voltage: –48V～–60V

- Max. DC voltage:-38.4V DC～-72V DC

• AC Power

- Rated AC voltage: 100V to 240V AC; 50/60 Hz

- Max. AC voltage: 90V to 290V AC; 45–65 Hz

• DC Power

- Rated DC voltage: –48V～–60V

- Max. DC voltage:-38.4V DC～-72V DC

Input current

AC 600W:Max 8A

DC 1000W:Max 30A

AC 600W:Max 8A

DC 1000W:Max 30A

Maximum power consumption

231W

274W

Minimum power consumption

97W

97W
