10GE SFP CloudEngine Huawei Enterprise Switch S6730-H24X6C 24 Port
10GE SFP CloudEngine Huawei Enterprise Switch S6730-H24X6C 24 Port
10GE SFP CloudEngine Huawei Enterprise Switch S6730-H24X6C 24 Port
10GE SFP CloudEngine Huawei Enterprise Switch S6730-H24X6C 24 Port
Specifications
Brand Name :
Huawei
Model Number :
S6730-H24X6C
MOQ :
1
Price :
$1477
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
420pcs
Delivery Time :
3-5 days
Description :
S6730-H24X6C (24*10GE SFP+ ports, 6*40GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28, without power module)
Condition :
Original New; In stock
Description

Huawei CloudEngine Swtich S6730-H24X6C (02353FSG/-001/-005/-007)


Huawei S6730-H24X6C (24*10GE SFP+ ports, 6*40GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28, without power module)


Tip:

1: This is basic version, if need 100G function upgraded version, you could click below link:

100g License Bundle Huawei Cloudengine Switch S6730-h24x6c-bundle-100g (02353gfc/-001/003/004) Price - S6700 Series Supplier - Categories_huawei_huawei Switches


2: Please add 2pcs power supply for S6730. Link:

Power Supply Pac600s12-cb Huawei 600 W Ac&240 V Dc Power Module For Huawei Switch S5731-s, S5732, S5736 (02312ffu) Price - Huawei Power Supply - Categories_huawei_huawei Accessories

Quick Specification:


Model

S6730-H24X6C

Part Number

Bundle version: 02353GFC/ 02353GFC-001/ 02353GFC-003/ 02353GFC-004

Without bundle: 02353FSG/02353FSG-001/02353FSG-005/02353FSG-007

Memory

4 GB

Flash memory

2 GB in total. To view the available flash memory size, run the display version command.

PoE

Not supported

Weight with packaging [kg(lb)]

8.9 (19.62)

Weight without packaging [kg(lb)]

5.62 (12.39)

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm


Difference between Part Numbers:


Model

S6730-H24X6C

Part Number

02353FSG

02353FSG-001

02353FSG-005

02353FSG-007

Remarks

/

Some models cannot be downgraded due to component upgrade. Therefore, you are advised to run the display system-software information command (supported in V200R021C00 and later versions) to check the software versions supported by the device before performing a downgrade

/

/

Maximum input current [A]

The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.

The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.

The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.

The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

Long-term operating temperature [°C(°F)]

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)

–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)

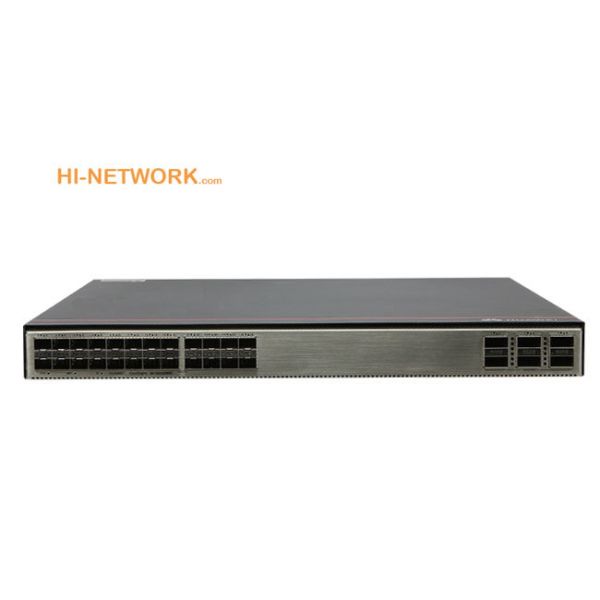

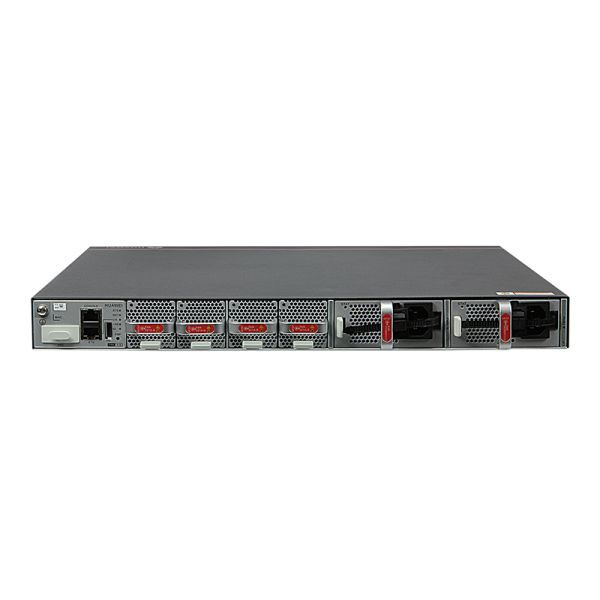

Appearance:

10GE SFP CloudEngine Huawei Enterprise Switch S6730-H24X6C 24 Port


①

Twenty-four 10GE SFP+ ports

②

Six 40GE/100GE QSFP28 optical ports

③

Ground screw

④

SSD card slot

⑤

One console port

⑥

One ETH management port

⑦

One USB port

⑧

One PNP button

⑨

Fan module slot 1

⑩

Fan module slot 2

⑪

Fan module slot 3

⑫

Fan module slot 4

⑬

Power module slot 1

⑭

Power module slot 2


The Accessories for S6730-H24X6C

Recommended Products:


Models

Descriptions

eSFP-GE-ZX100-SM1550

Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,100km,LC)

SFP-GE-LX-SM1310-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,10km,LC)

SFP-GE-LX-SM1490-BIDI

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC)

LE2MGSC40DE0

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1310/RX1490,40km,LC)

LE2MGSC40ED0

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,40km,LC)

SFP-GE-ZBXD1

Optical Transceiver,eSFP,GE,BIDI Single-mode Module(1570nm(Tx)/1490nm(Rx),80km,LC)

SFP-GE-ZBXU1

Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC)

SFP-GE-BXU1-SC

1000Base,BIDI Optical Transceiver,SFP,GE,Single-mode Module(TX1490nm/RX1310nm,10km,SC)

CWDM-SFPGE-1471

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1471nm,80km,LC)

CWDM-SFPGE-1491

CWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1491nm,80km,LC)

DWDM-SFPGE-1560-61

DWDM Optical Transceiver,eSFP,2.5G,Single-mode Module(1560.61nm,120km,LC)

SFP-1000BaseT

Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45)

SFP-10G-USR

10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC)

OMXD30000

Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC)

SFP-10G-iLR

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC)

OSX010000

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC)

OSX040N01

Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC)

SFP-10G-ER-1310

Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC)

SFP-10G-ZR

10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC)

SFP-10G-BXU1

10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1270nm/RX1330nm,10km,LC)


Compare to Similar Items:

Models

S6730-H24X6C

S6730-H48X6C

Fixed ports

24 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28

48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28

Dimensions (W x D x H)

442 mm x 420 mm x 43.6 mm

442 mm x 420 mm x 43.6 mm

Chassis height(U)

1U

1U

Input voltage

• AC Power

- Rated AC voltage: 100V to 240V AC; 50/60 Hz

- Max. AC voltage: 90V to 290V AC; 45–65 Hz

• DC Power

- Rated DC voltage: –48V～–60V

- Max. DC voltage:-38.4V DC～-72V DC

• AC Power

- Rated AC voltage: 100V to 240V AC; 50/60 Hz

- Max. AC voltage: 90V to 290V AC; 45–65 Hz

• DC Power

- Rated DC voltage: –48V～–60V

- Max. DC voltage:-38.4V DC～-72V DC

Input current

AC 600W:Max 8A

DC 1000W:Max 30A

AC 600W:Max 8A

DC 1000W:Max 30A

Maximum power consumption

231W

274W

Minimum power consumption

97W

97W
